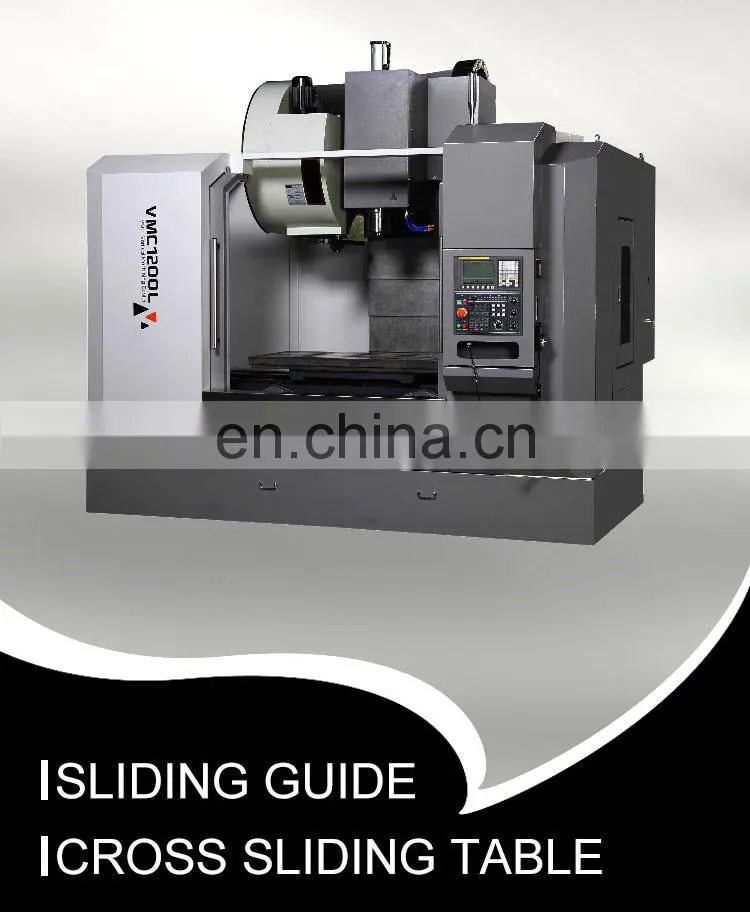

VMC1200L 4 axis cnc machining center

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Features:

CNC machining center VMC1200L CNC milling machine center Product Application All 3axis use class C3 precision screw,match up the nut preloading and screw prestretched, preeliminate backlash and temperature rise,so that the machine can achieve stability of the positioning and repeatability accuracy. Besides,the X/Y/Z axis use precision linear rails to ensure the control of the positioning accuracy and processing errors,so that the machine can have high accuracy and long working life.

Main Technical Data

Specification	VMC1200L
Worktable size(LxW)	1400x700mm
T-slot (NxWx D)	5x18x115mm
X/Y/Z axis travel	1200/700/700mm
Distance from spindle center to column	775mm
Distance from spindle nose to worktable surface	103-803mm
Spindle taper	BT50
Spindle power	11/15kw
Max.spindle speed	6000rpm
Max.feed speed	12m/min
Rapid feed speed(X/Y/Z)	24/24/15m/min
X/Y/Z axis ball screw	4012

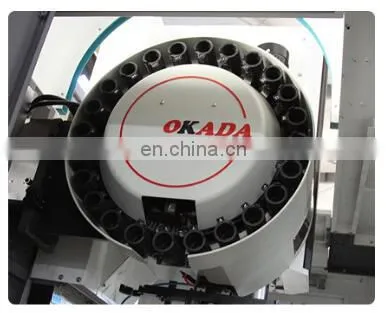

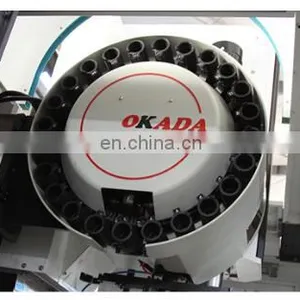

Tool magazine capacity	24t
Tool change time(T-T)	3/2.5s
Positioning accuracy(X/Y/Z)	±0.010mm
Re-positioning accuracy(X/Y/Z)	±0.005mm
LxWxH	3330x2880x3250mm
Max.loading of worktable	1000kgs
Machine weight	10000kgs

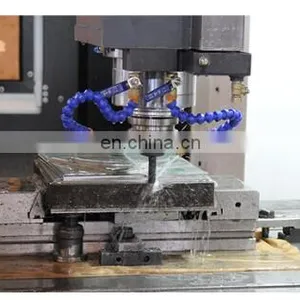

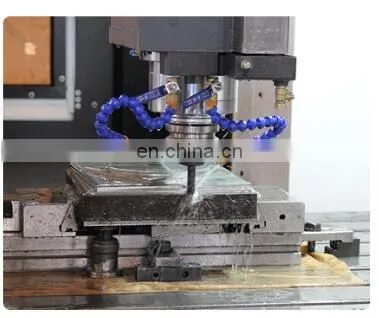

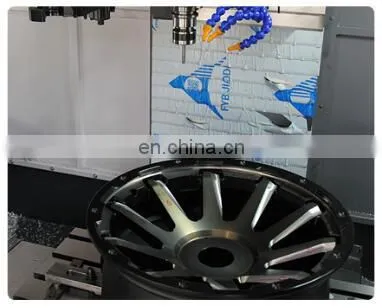

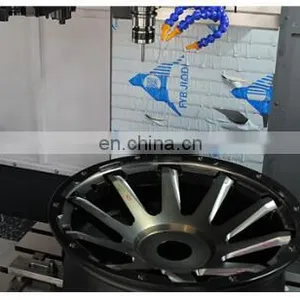

Products Show

Our Company

Company Profile

Jingjiang Fuji Technology Co., Ltd.

Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
