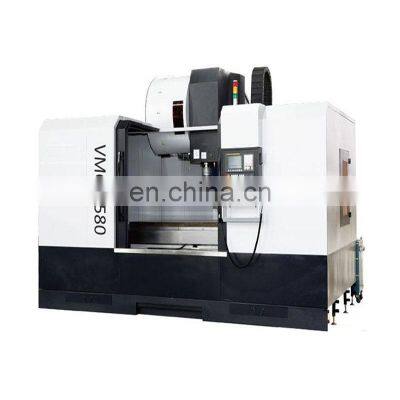

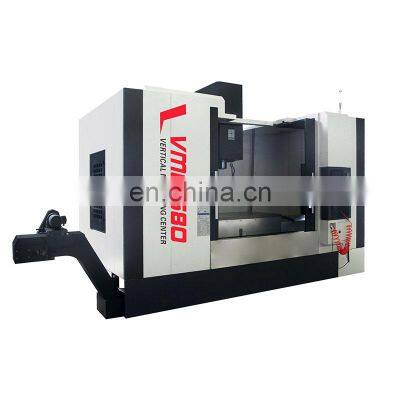

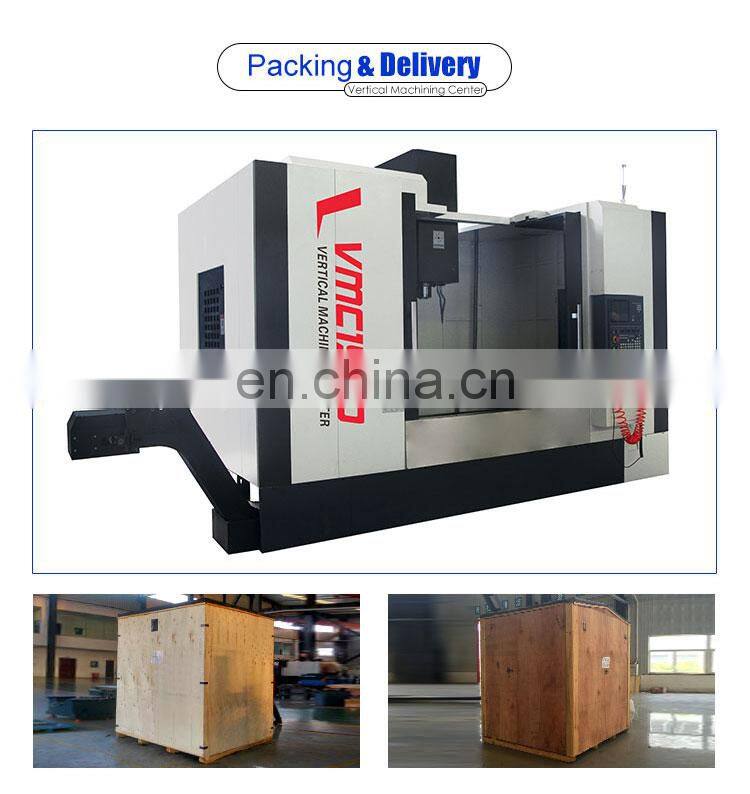

VMC1580 3axis vertical machining center with cnc system from China factory
- 1000 per Month
- T/T Credit Card
You May Like
-
vertical milling center V8 high speed cnc machining center for metal
-
vertical milling center VMC850P taiwan vmc machine vmc 850 cnc milling machine center for metal working
-
cnc milling machine small VMC850L 4 axes cnc vertical machining center for metal
-
VMC1200L 4 axis cnc machining center
-
3 axis high quality Machining Centre VMC1160 cnc controller machining center
-
cnc vertical machining center VMC1000P 5 axis vertical machining center vmc milling machine

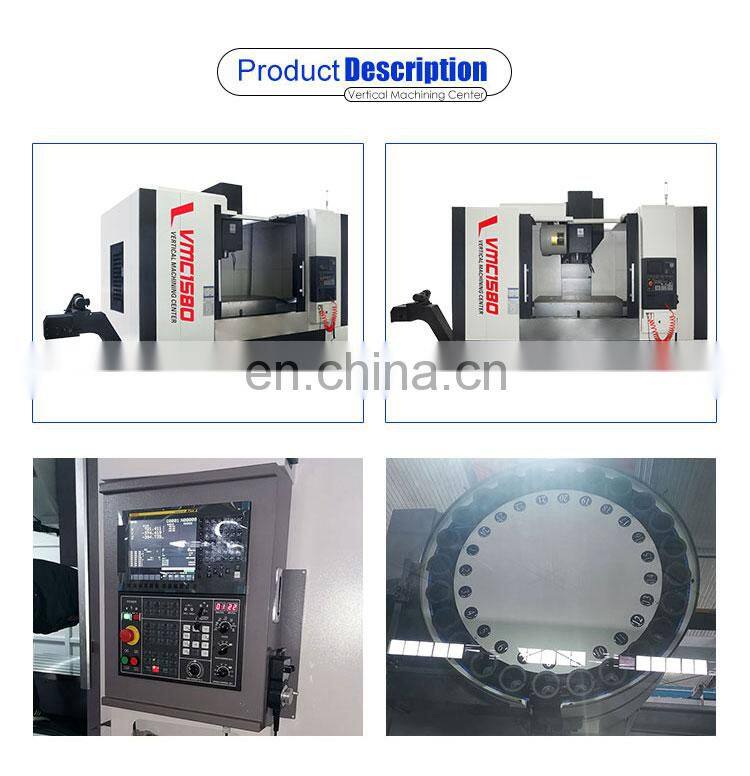

Product Description
Machine features of cnc vertical machining center :
1. The main basic parts such as the base, sliding seat, workbench, column, and headstock are made of high-rigidity cast iron structure. Reinforcing ribs are distributed inside the base. The sliding seat is a box structure to ensure the high rigidity and rigidity of the basic parts. Bending resistance and shock absorption performance, the column adopts "herringbone" structure, the foundation is stable, and the rigidity is good; the basic parts are molded with resin sand and undergo aging treatment to ensure the stability of the machine's long-term use accuracy and provide a guarantee for the stability of the machine's performance.
2. The X, Y and Z axes are all steel ball rolling linear guides, which have large load, wide span and high precision. With automatic forced lubrication, high-speed and smooth movement of the machine tool can be realized;
3. The X, Y, Z three directions of feed use high-precision and high-strength ball screws, with high feed speed; the drive motor is directly connected to the screw through an elastic coupling, and the feed servo motor directly transmits the power to the high Precision ball screw, no backlash, to ensure the positioning accuracy of the machine tool;

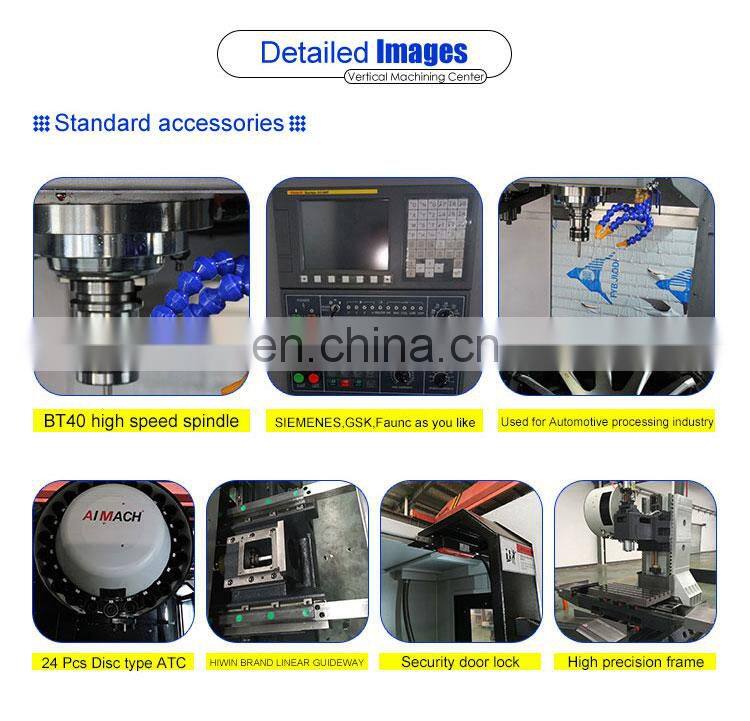

4. It adopts high-speed, high-precision, and high-rigidity spindle unit from a well-known Taiwanese brand, with strong axial and radial load-bearing capacity, and a speed of 6000rpm;
5. The spindle adopts a central air blowing structure. After the spindle is released, the central high-pressure gas is used to clean the inner cone of the spindle to ensure the accuracy of tool clamping;
6. The X, Y, and Z directions guide rails and lead screws are all sealed and protected to ensure the cleanliness of the lead screws and guide rails and ensure the transmission and movement accuracy of the machine tool;
7. The outer protection of the machine tool adopts a semi-protective structure design, which is convenient to use;

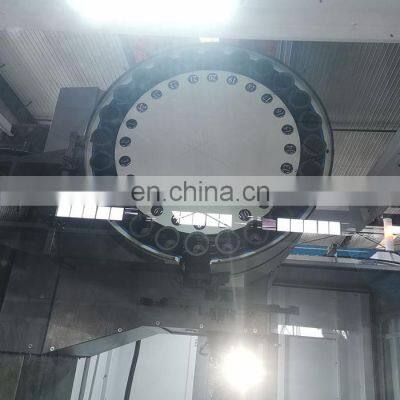

8. Adopting Taiwan's high-quality 24 disc tool magazines, with accurate tool change, short time and high efficiency. It has been tested by millions of times and meets the reliability requirements; with a damping structure, it can reduce the impact during movement and ensure the tool The service life of the library; pneumatic drive, tool change in the shortest path;
9. Adopting centralized automatic lubrication device, timing and quantitative automatic intermittent lubrication, stable and reliable work;
10. This machine tool is easy to operate, flexible and fast.
Specification | VMC1580 |
Worktable size | 1600X800mm |
X、Y、Z travel axis | 1500X800X700mm |
Booster cylinder | With spindle |
T-siot size | 5-22X135 |
X、Y、Z screw model | 5016/5016/5016 |
Worktable load | 1500KG |
X、Y、Z feeding speed | 24000、24000、18000mm/min |
Positioning accuracy | ±0.01mm |
Repeat positioning | ±0.008mm |
Spindle motor | 11/15KW |
Distance from spindle center to column surface | 855mm |
Distance from spindle nose to worktable | BT40:190-890/BT50:155-855mm |
Net/Gross weight | 12/13T |
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

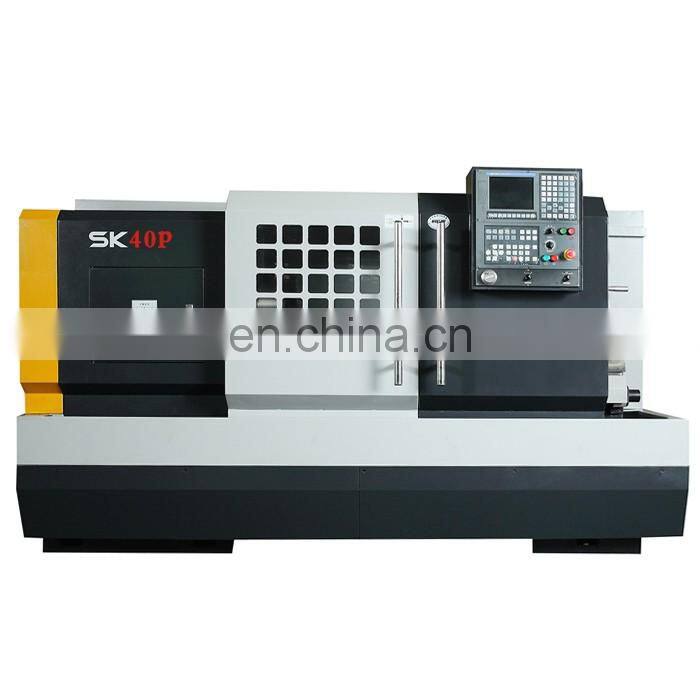

SK40P CNC Lathe

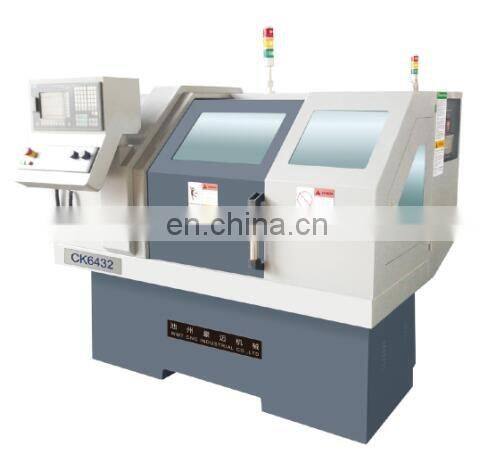

CK6432x750 CNC Lathe
