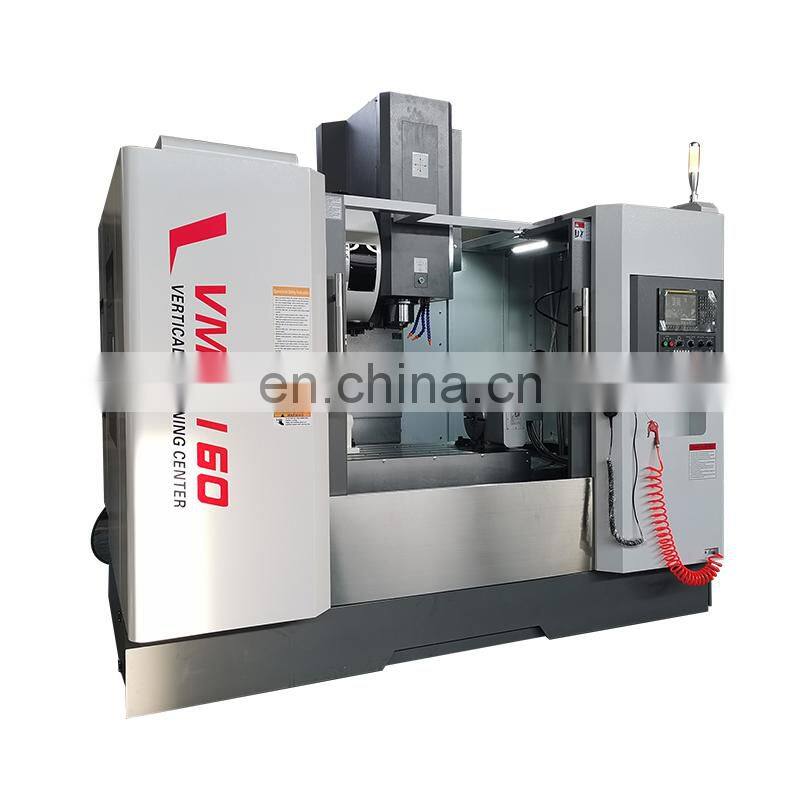

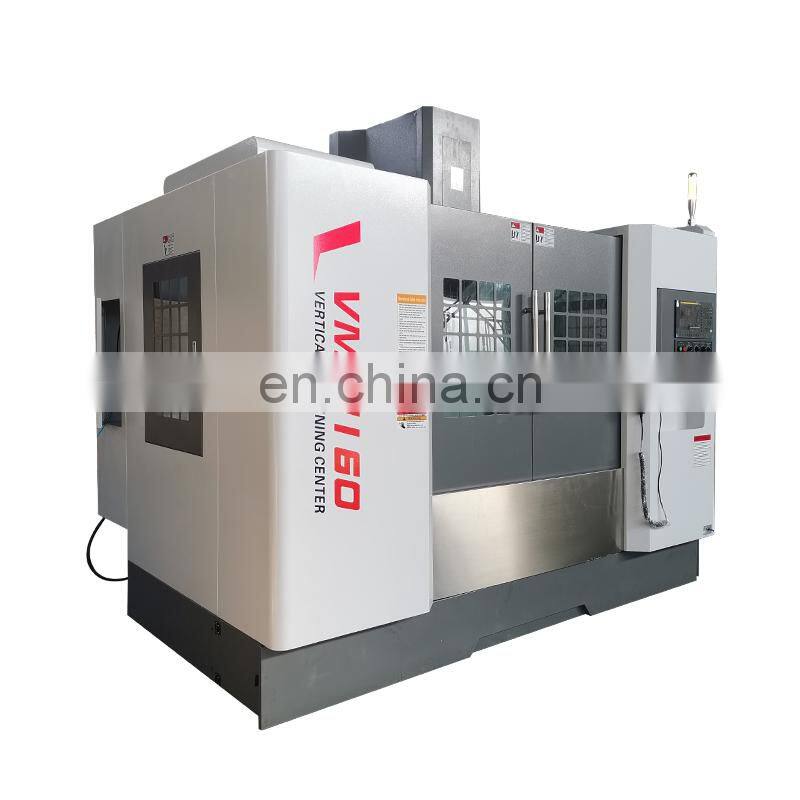

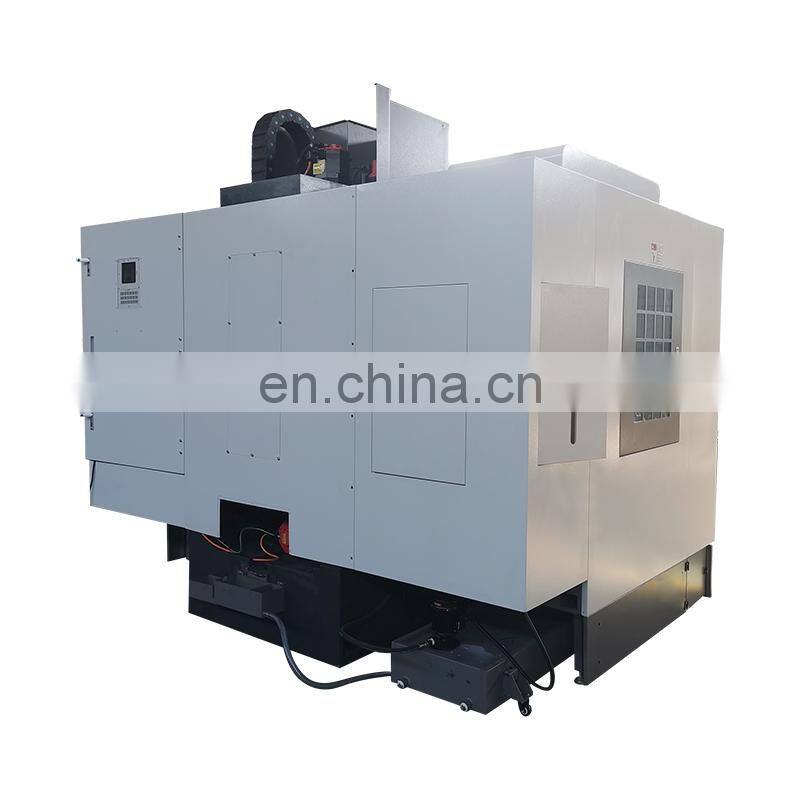

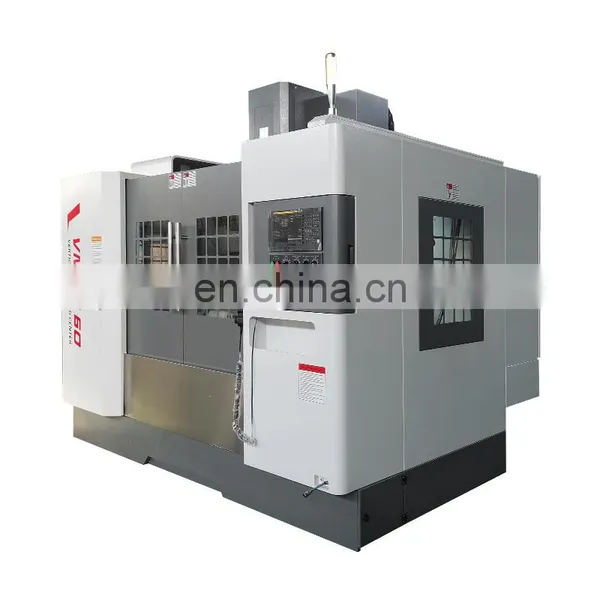

3 Axis High Quality Machining Centre VMC1160 Cnc Controller Machining Center
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cnc Vertical Machining Center VMC1000P 5 Axis Vertical Machining Center Vmc Milling MachineNegotiableMOQ: 1 -
VMC600L 4 Axis Small CNC VMC Machine for SaleNegotiableMOQ: 1
-
VMC850L CNC Machinery Center for Metal WorkNegotiableMOQ: 1
-
Vertical Milling Center Professional Model VMC1160 Siemens 808DA Control System Vertical Machining Center With CENegotiableMOQ: 1
-
V-8D High Quality Vertical Machining CenterNegotiableMOQ: 1
Products Recommend
Product Description
WMT Brand Vertical machining center VMC1160 Description:
With advanced international standard of designing,modern structure, high quality components and spare parts introduced
to this machine tool, no matter precise elements machining or mould processing, WMT Brand Vertical machining center VMC1160 will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Main Features:
- Spindle unit BT40 by KENTURN Brand with 8000rpm
to this machine tool, no matter precise elements machining or mould processing, WMT Brand Vertical machining center VMC1160 will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Main Features:
- Spindle unit BT40 by KENTURN Brand with 8000rpm
- Precious Ball Screw by PMI or HIWIN Brand

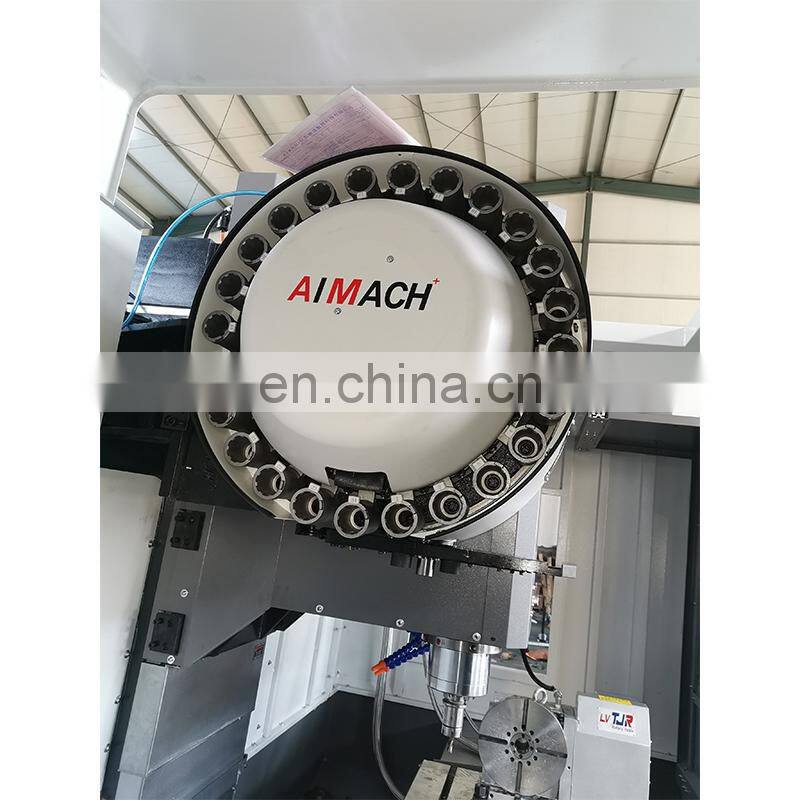

- Disk type ATC 24pcs by OSHIMA Brand
- FANUC, GSK, Siemens system as optional selection.
-Optimized Structure of Heavy Rail Linear Guide - Suitable for machining parts of automobile, mold industry and so on.
Specification | VMC1160L |
Worktable size(LxW) | 1200×600mm |
T-slot (NxWxD) | 5x18x100mm |
X/Y/Z axis travel | 1100/600/600mm |
Distance from spindle center to column | 650mm |
Distance from spindle nose to worktable surface | 120-720mm |
Spindle taper | BT40 |
Spindle power | 11kw |
Max.spindle speed | 8000rpm |
Max.feed speed | 10m/min |
Rapid feed speed(X/Y/Z) | 24/24/20 m/min |
X/Y/Z axis ball screw | 4012 |
Tool magazine capacity | 24T |
Max.tool length | 300mm |
Tool change time(T-T) | 2.5s |
Positioning accuracy(X/Y/Z) | ±0.005mm |
Re-positioning accuracy(X/Y/Z) | ±0.003mm |
Machine size(LxWxH) | 3350×2300×2550mm |
Max.loading of worktable | 800kgs |
Machine weight | 6200kgs |

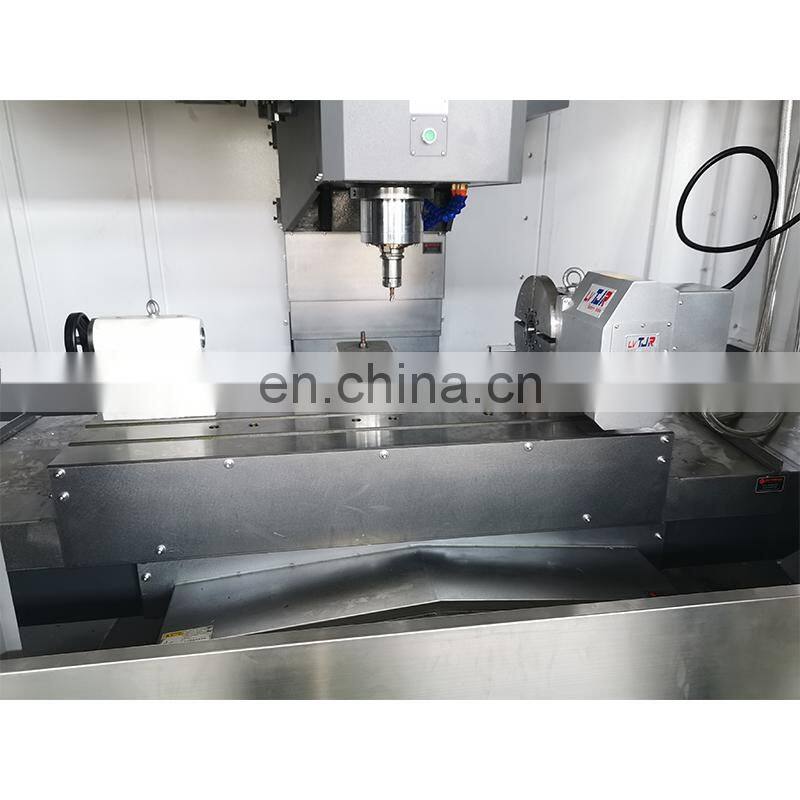

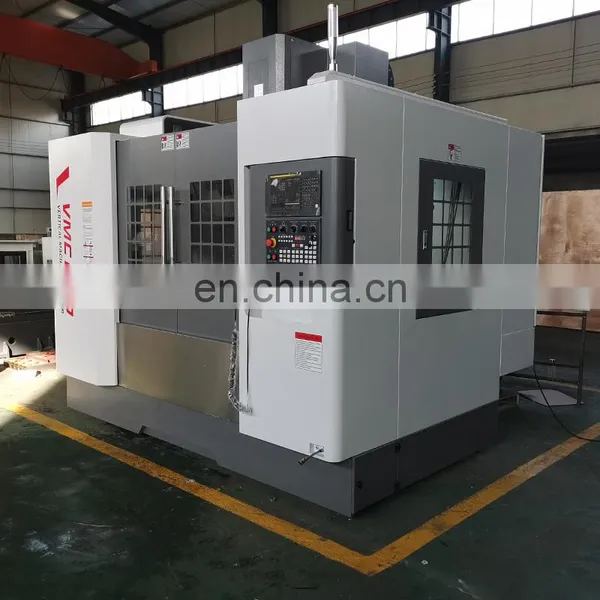

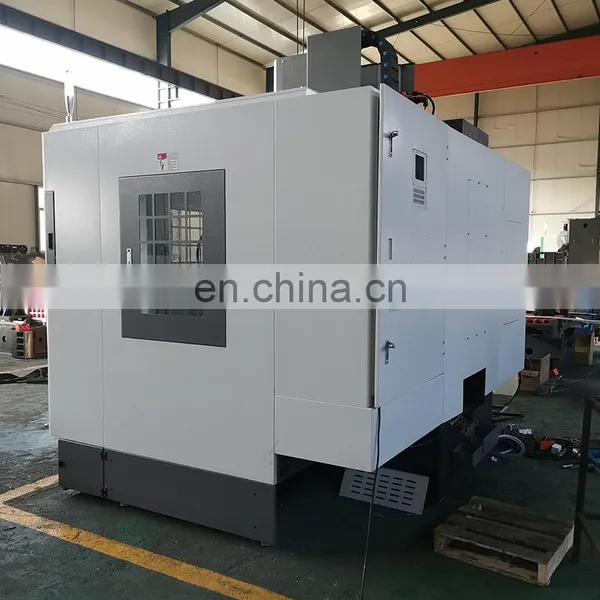

Details Images

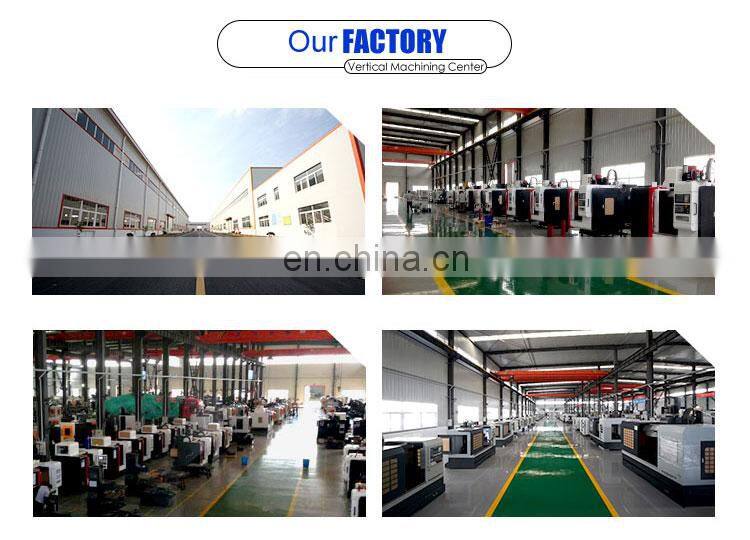

Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
