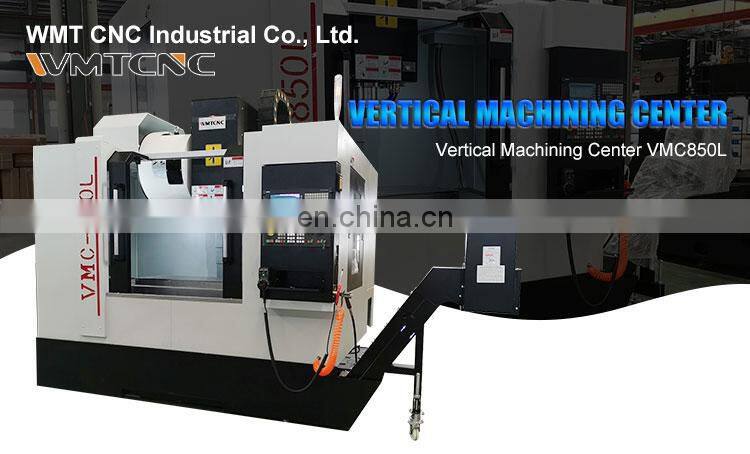

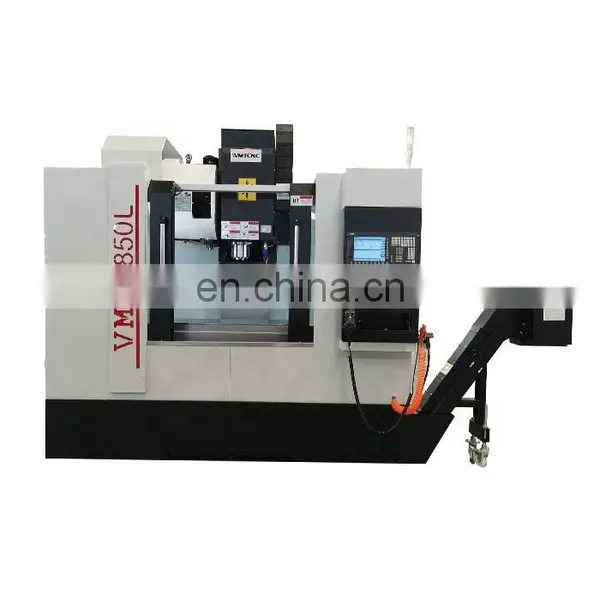

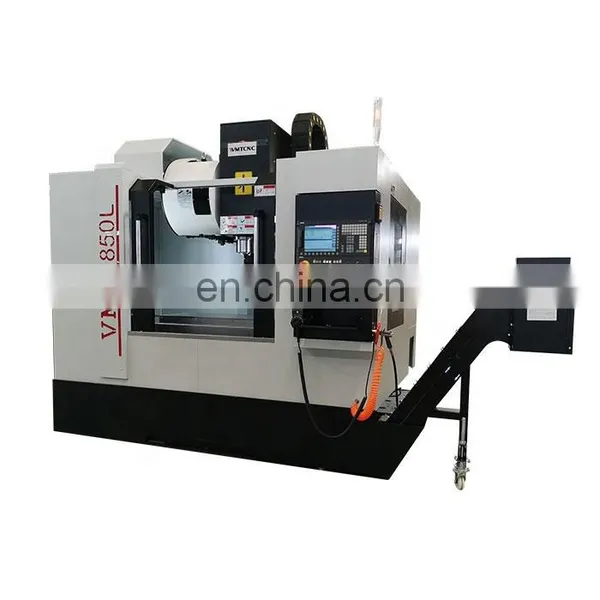

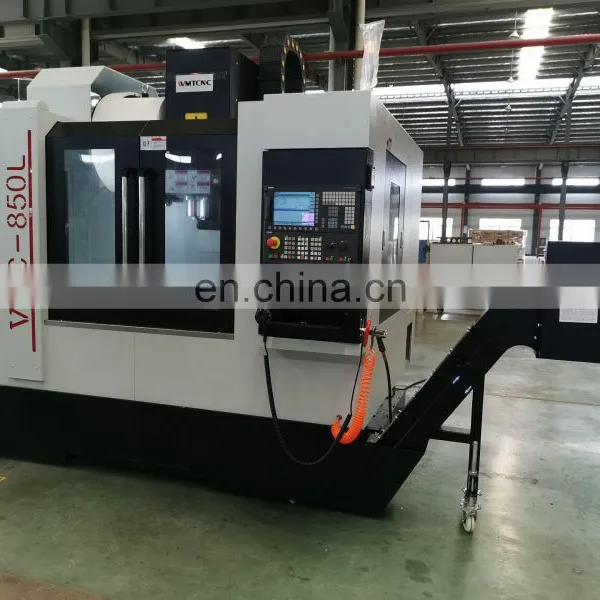

Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > VMC850L CNC Machinery Center for Metal Work
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vertical Milling Center Professional Model VMC1160 Siemens 808DA Control System Vertical Machining Center With CENegotiableMOQ: 1 -
V-8D High Quality Vertical Machining CenterNegotiableMOQ: 1
-
VMC1000L Directly Manufacturer Cnc Milling Machine Center for SaleNegotiableMOQ: 1
-
V-8F High Quality Vertical Machining CenterNegotiableMOQ: 1
-
VMC850F High Quality Vertical Machining CenterNegotiableMOQ: 1
Main specification
Specification | VMC850L |
Worktable | |
Worktable size(LxW) | 1000x500mm |
T-slot (NxWx D) | 5x18x100mm |
Travel | |
X/Y/Z axis travel | 850/500/600mm |
Machine range | |
Distance from spindle center to column | 572mm |
Distance from spindle nose to worktable surface | 120-720mm |
Spindle | |
Spindle taper | BT40 |
Spindle power | 7.5/11kw |
Max.spindle speed | 8000rpm |
Feed(direct drive) | |
Max.feed speed | 12m/min |
Rapid feed speed(X/Y/Z) | 32/32/30m/min |
Ball screw(diameter+lead) | |
X/Y/Z axis ball screw | 4016 |
Tool magazine | |
Tool magazine capacity | 24T |
Max.length of tool | 300mm |
Tool change time(T-T) | 2.5s |
Positioning accuracy (National standard) | |
Positioning accuracy(X/Y/Z) | ±0.010mm |
Re-positioning accuracy(X/Y/Z) | ±0.005mm |
Machine dimension | |
LxWxH | 2540x2320x2780mm |
Machine weight | |
Max.loading of worktable | 500kgs |
Machine weight | 5200kgs |

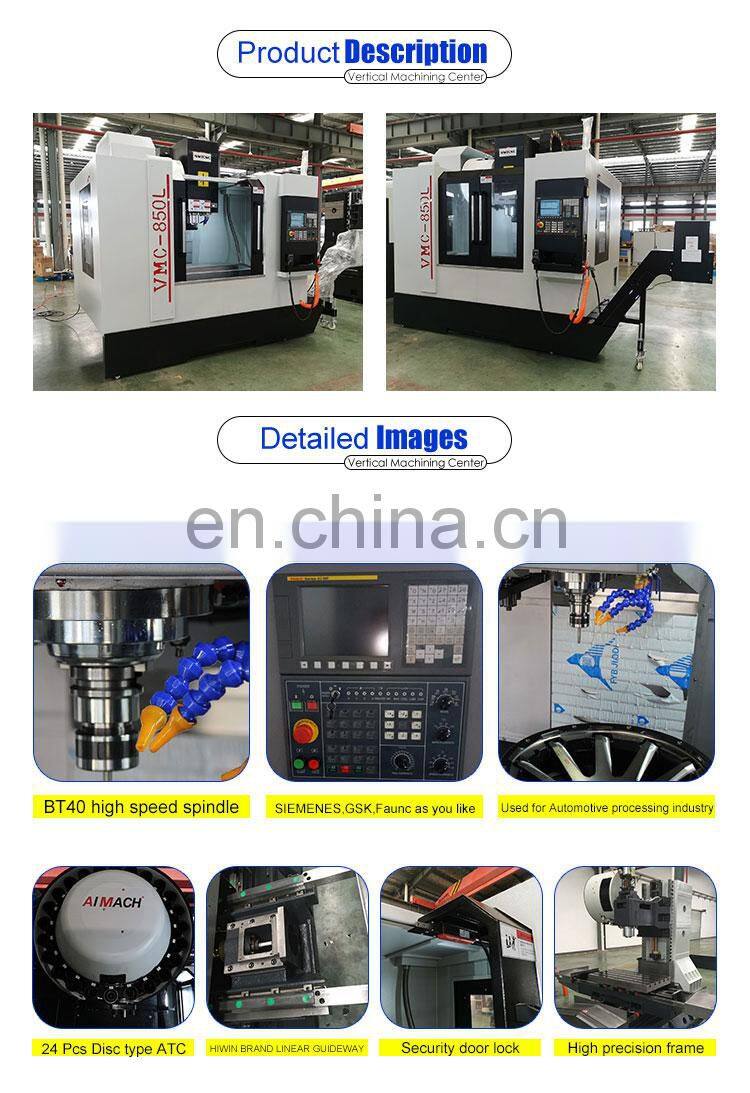

Standard Equipment:

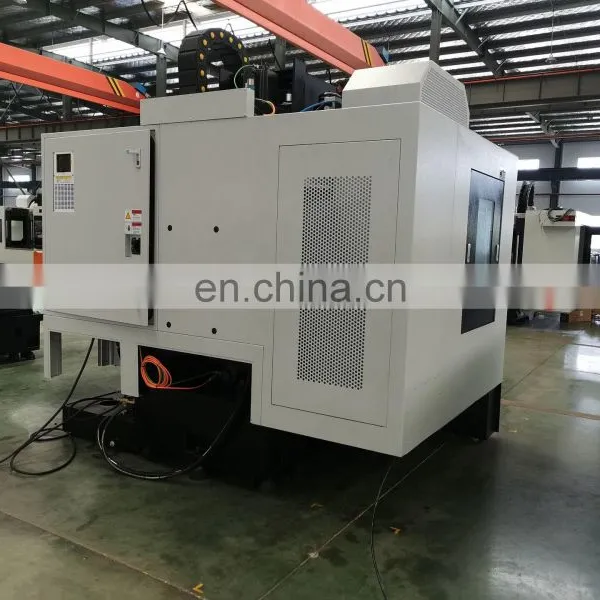

1) with complete machine cover

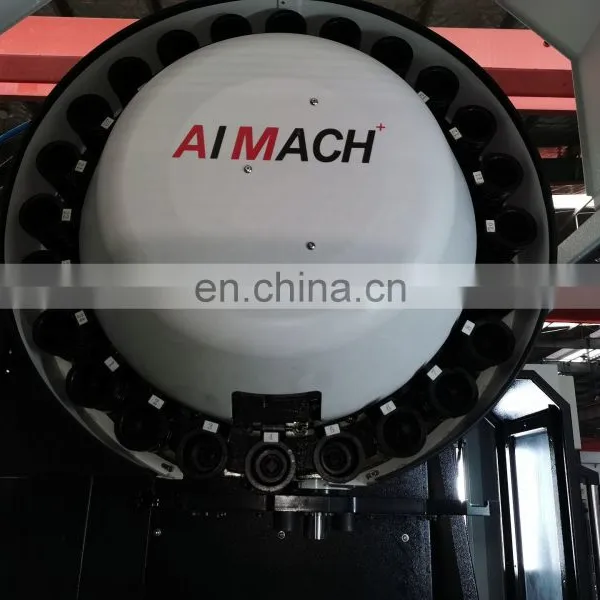

2) Disc type ATC: 24 pcs tools
3) Taiwan KENTURN brand BT40 Spindle, spindle speed=80-8000rpm
4) Taiwan PMI X/Y/Z linear guideway, ballscrew
5) Taiwan PMI ballsacew
Optional Equipment:
1) GSK218M controlelr
2) Siemens 828D controller
3) Fanuc Oi MF(5) β controller
4) Spindle oil cooler
5) Auto chip conveyor
6) Tool measruring device
