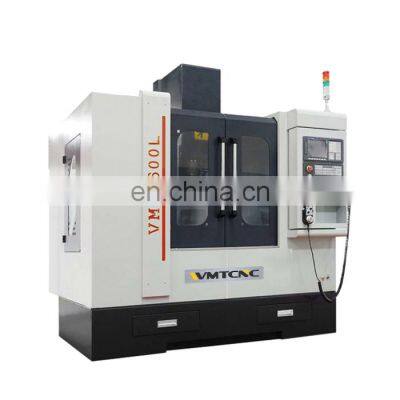

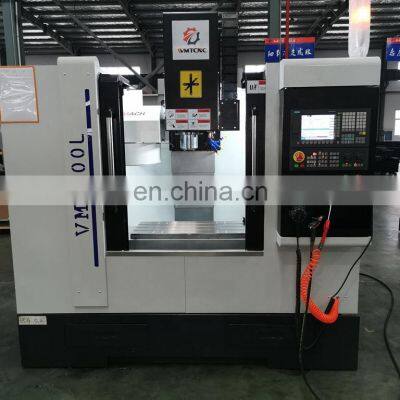

Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > VMC600L 4 Axis Small CNC VMC Machine for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VMC850L CNC Machinery Center for Metal WorkNegotiableMOQ: 1 -
Vertical Milling Center Professional Model VMC1160 Siemens 808DA Control System Vertical Machining Center With CENegotiableMOQ: 1
-
V-8D High Quality Vertical Machining CenterNegotiableMOQ: 1
-
VMC1000L Directly Manufacturer Cnc Milling Machine Center for SaleNegotiableMOQ: 1
-
V-8F High Quality Vertical Machining CenterNegotiableMOQ: 1
Product Description

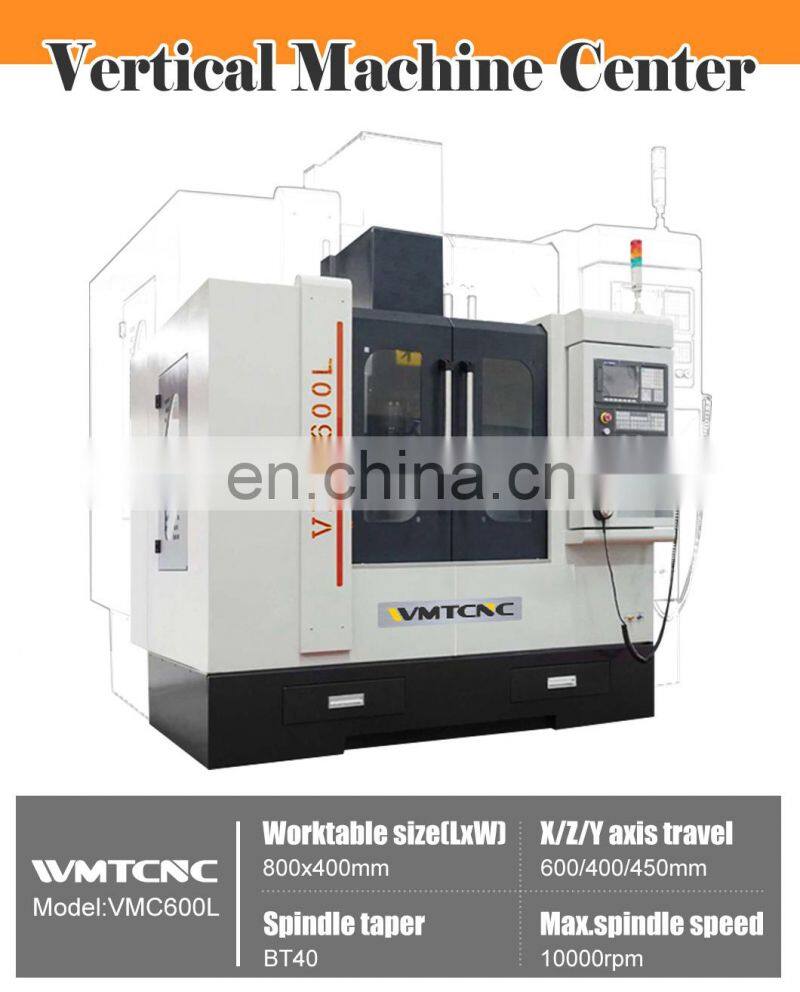

Features for vertical maching center CNC VM600L:
X/Y/Z linear guideway (Taiwan PMI)
X/Y/Z telescopic cover
BT40 Taiwan spindle, 8000rpm( Taiwan SJ)
Schneider electrical part

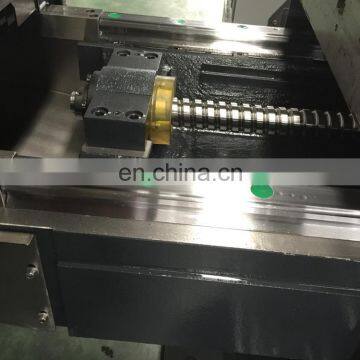

Taiwan Ballscrew (Taiwan PMI)
Japan NSK bearings
Pressure cylinder (Taiwan SUM)

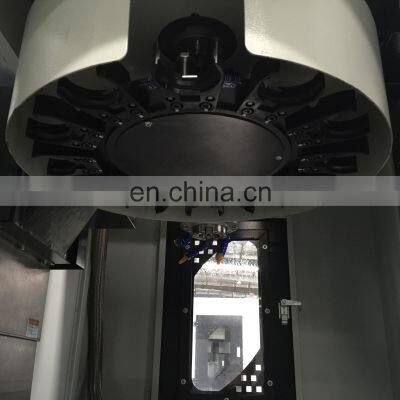

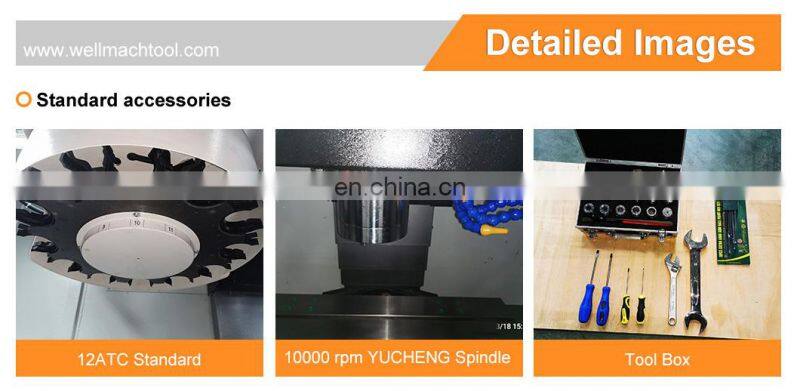

12 pcs Umbrella tool chage
Main specification
Specification | VMC600L |
Worktable size(LxW) | 800x400mm |
T-slot (NxWx D) | 3x14x100mm |
X/Y/Z axis travel | 600/400/450mm |
Distance from spindle center to column | 450mm |
Distance from spindle nose to worktable surface | 100-550mm |
Spindle taper | BT40 |
Spindle power | 5.5kw |
Max.spindle speed | 10000rpm |
Max.feed speed | 10m/min |
Rapid feed speed(X/Y/Z) | 30/30/25m/min |
X/Y/Z axis ball screw | 3210 |

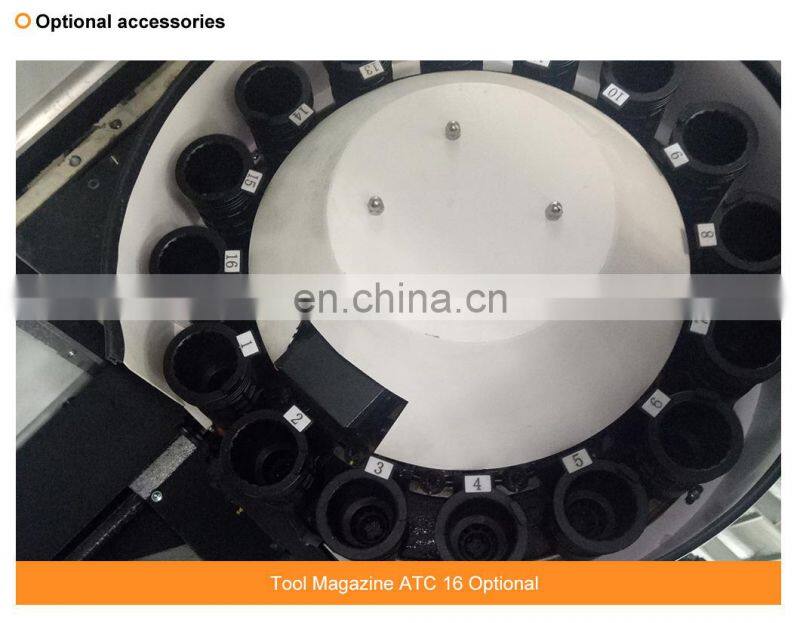

Tool magazine capacity | 12T/16T(optional) |
Max.length of tool | 300mm |
Tool change time(T-T) | 2.5s |
Positioning accuracy(X/Y/Z) | ±.0.005mm |
Re-positioning accuracy(X/Y/Z) | ±.0.002mm |
LxWxH | 1900x1700x2240mm |
Max.loading of worktable | 300kgs |
Machine weight | 3500kgs |

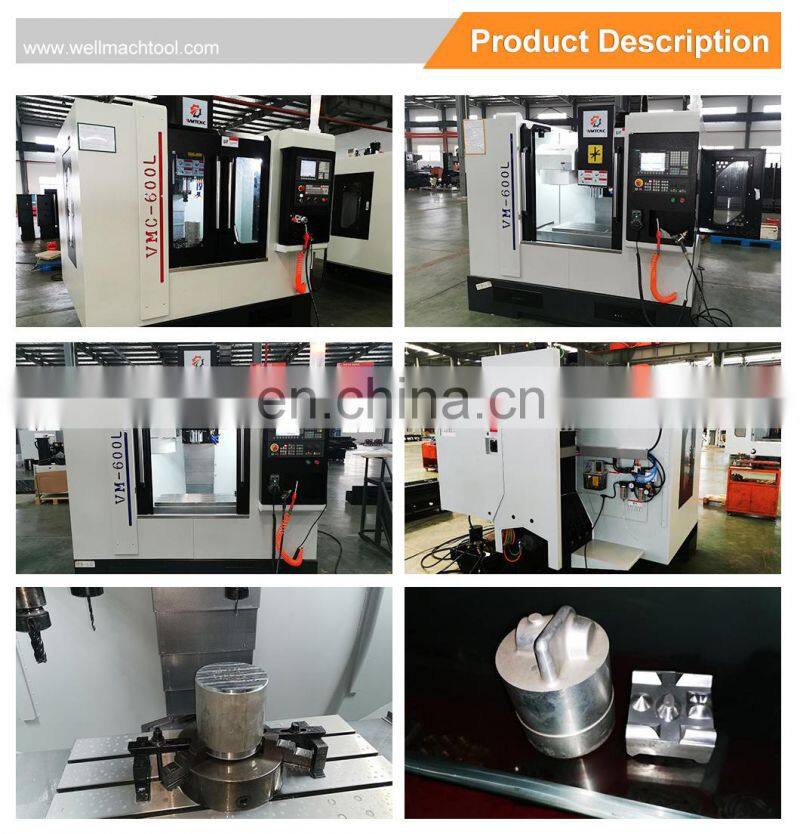

Products Show
