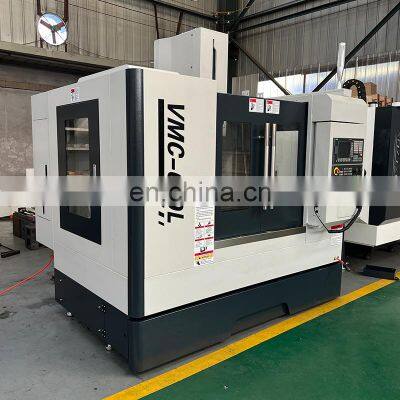

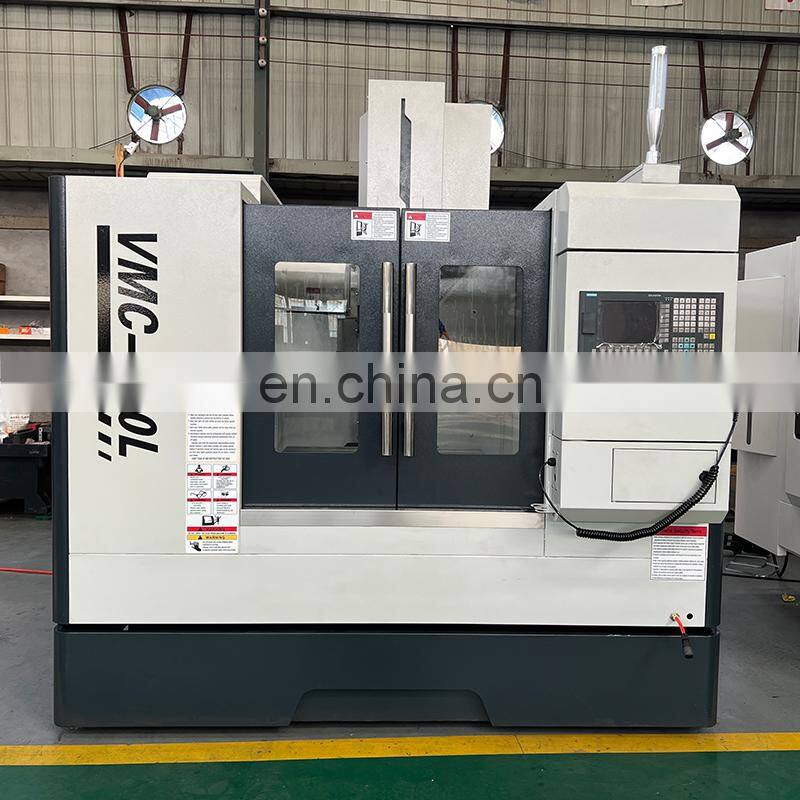

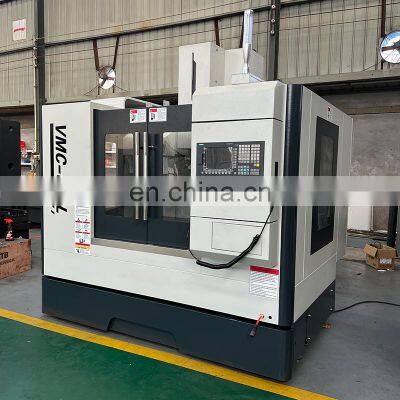

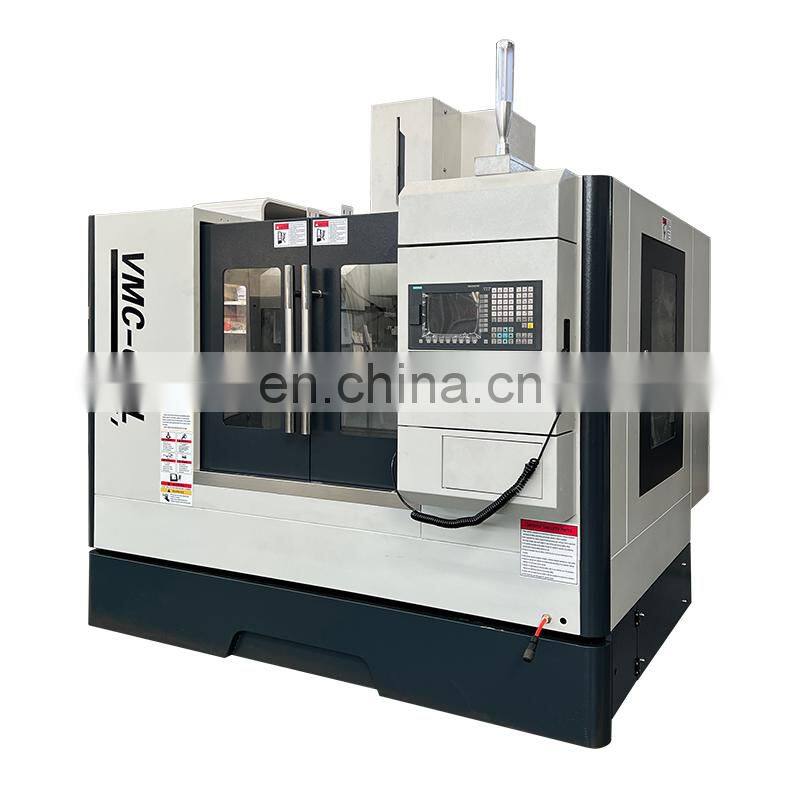

Vertical Machining Center CNC Milling VMC600L Features:
1. As one new product of independent design & development, VMC600 is a multi-purpose machine which could mill surface & drill holes.
2. This machine adopts domestic/overseas branded numerical control system and realizes full-screen edition in Chinese.
3. Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting
functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.
4. With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life, the machine is
widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics &
astronautics and etc. industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as an ideal equipments for large automation production.
5. This machine could process holes below 16mm, milling plane below 18mm and milling depth below 3mm.
Specification | VMC600L |
Worktable size(LxW) | 800x320mm |
T-slot (NxWxD) | 3x16x100mm |
X/Y/Z axis travel | 600/400/450mm |
Distance from spindle center to column | 450mm |
Distance from spindle nose to worktable surface | 100-550mm |
Spindle taper | BT40 |
Spindle power | 5.5kw |

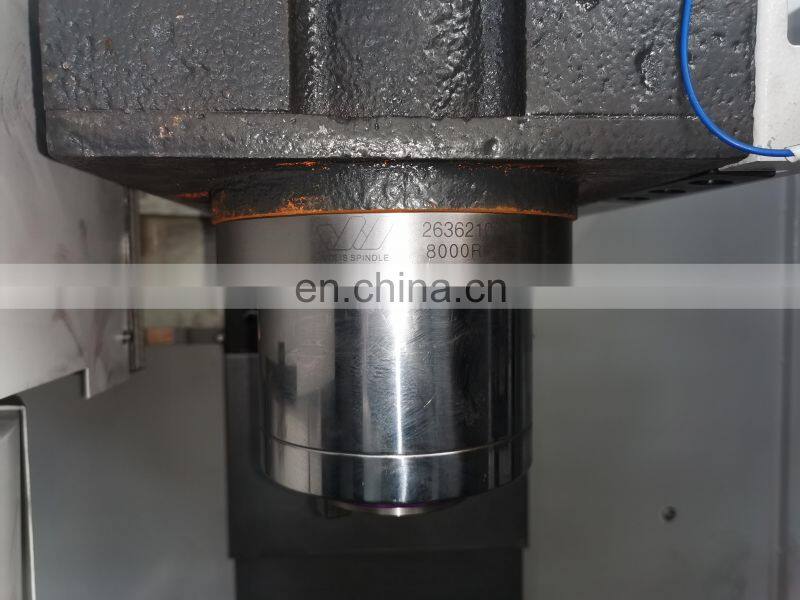

Max.spindle speed | 8000rpm |
Max.feed speed | 10m/min |
Rapid feed speed(X/Y/Z) | 20/20/18 m/min |
X/Y/Z axis ball screw | 3210 |

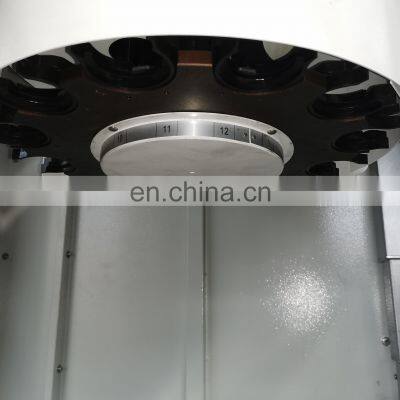

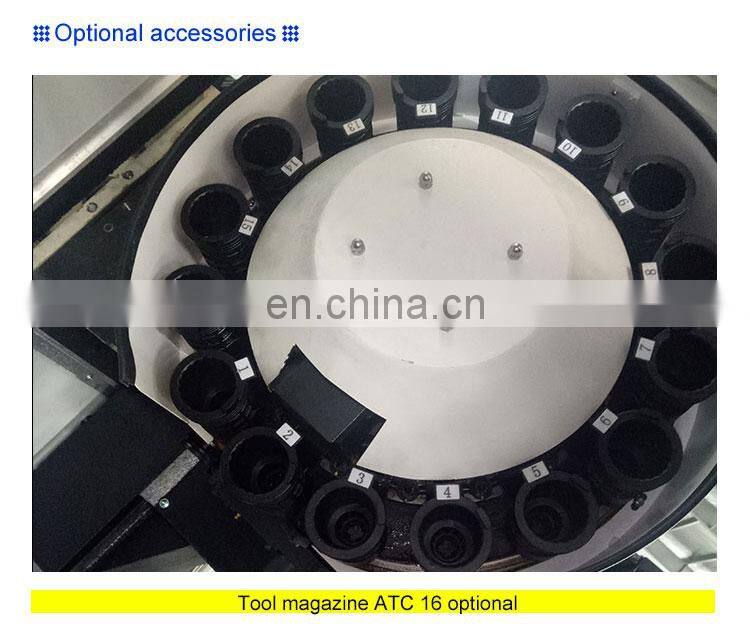

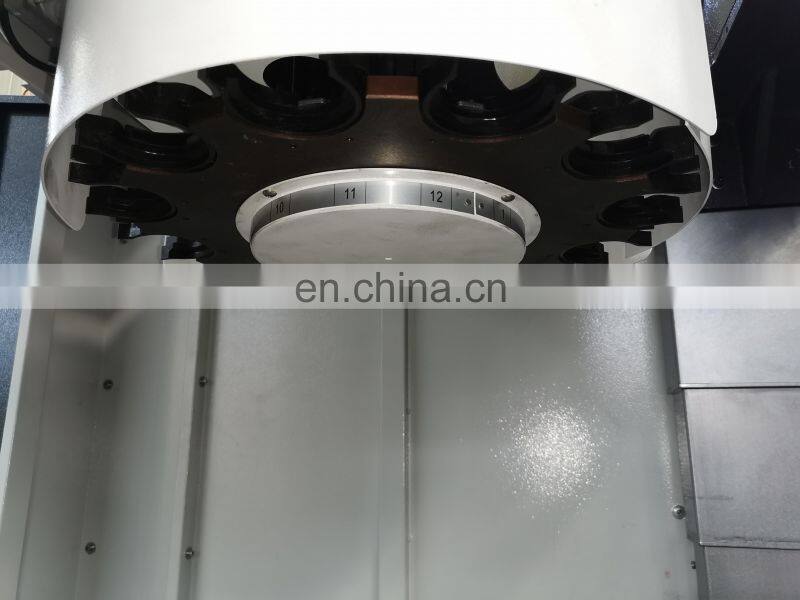

Tool magazine capacity | 12T/16T(optional) |
Max.tool length | 200mm |
Tool change time(T-T) | 8s |
Positioning accuracy(X/Y/Z) | ±0.007mm |
Re-positioning accuracy(X/Y/Z) | ±0.005mm |
Machine size(LxWxH) | 1900x1700x2240mm |
Max.loading of worktable | 300kgs |
Machine weight | 2800kgs |
