vertical cnc 5 axis machining centre V10 vertical milling center with high speed

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Recommend

Products Description

Product Application:

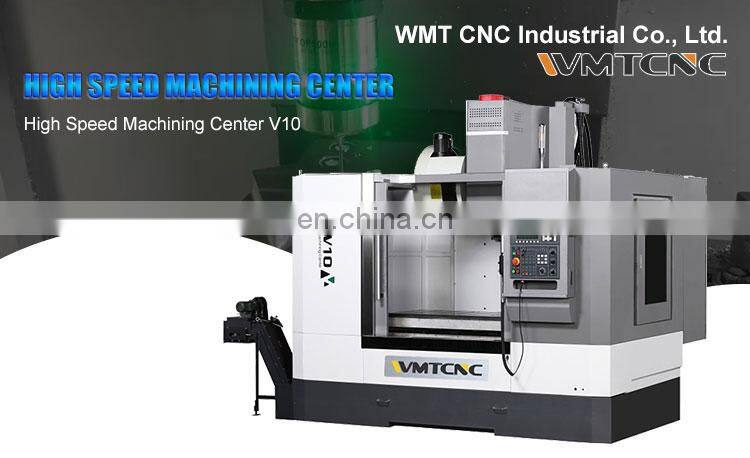

1. V10 is our new type of high speed CNC machining center based on Taiwan technology, which has more advantages on operation and capabilities compared with like products.

2. Applied with high rigid C design on structure, it also has been done with reinforcement on machine ribs.

3. All the contact faces have been scraped manually, which guarantees the durability of accuracy.

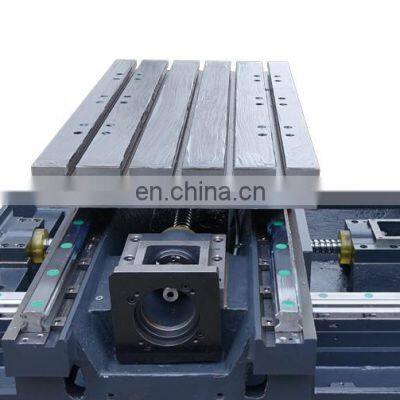

4. X/Y axes apply with two types of rolling guide way: ball bearing and roller guide way, which is optional to customer’s requirements.

5. Z axis applies roller guide way, which enables the machine to be with high rigidity, low noise, and small friction.

6. Thus the machine can do rapid displacement and obtain circular accuracy.

7. Equipped with air tank, the water can be drained out manually.

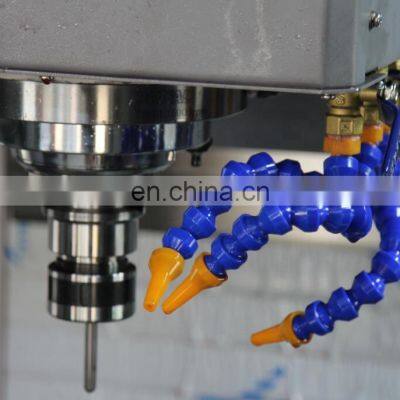

8. Spindle is connected directly, and the highest speed is 12000rpm, which are a good choice for machining of high accuracy and efficiency.

Specification	V10
Worktable
Worktable size	600×1200mm
T-slot （N×W×D）	5×18×100mm
Distance from the table to the ground	890mm
Travel
X axis travel	1000mm
Y axis travel	600mm
Z axis travel	630mm
Machining range
Distance from spindle center to column front	667mm
Distance from spindle end to work table	120-750mm
Machine dimension
L×W×H	2850×2450×2850mm
Machine weight
Max. load bearing of worktable	800kgs
Machine weight	6800kgs
Spindle
Spindle hole taper	BT40
Spindle power	11/15kw
Max. spindle speed	10000rpm
Spindle sleeve diameter	φ140mm
Feed
Max. feed speed	10000mm/min
Rapid feed speed (X/Y/Z)	36/36/30m/min
Tool Magazine
Tool magazine capacity	24T
Max. length of tool	300mm
Tool change time	1.5s
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z)	0.008mm
Re-positioning accuracy(X/Y/Z)	0.005mm

Detailed Images

CNC 5 axis machining centre, 4 axis, 5 axis vailable

Company Profile

Professional Service

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?

A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?

A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?

A4: One set only.

Q5: How about your quality?

A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?

A6: Yes.we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?

A7: Yes, we can design and manufacture according to your specific requirements.
