Manual Portable Push Pull Analog Force Gauge for Test
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Digital Push Pull Force Calibration Dynamometer
-
Electric High Speed Impact Digital Torque Tester
-
Max Force 500N Manual Dual Vertical Horizontal Test Stand
-
Physical Testing Instrument Max Force 5000N Digital Tension Spring Compression Tester
-
10KN Mechanical Handheld Digital Belt Wire Rope Tension Meter Force Gauge
-
Physical Testing Instrument Digital Rope Tension Meter
Product Description
Product Description

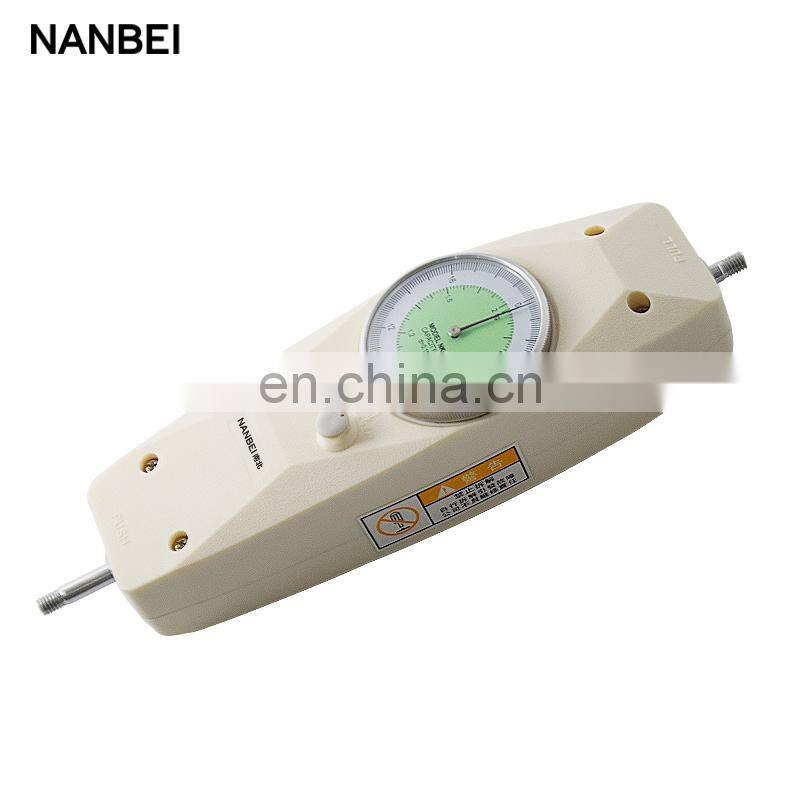

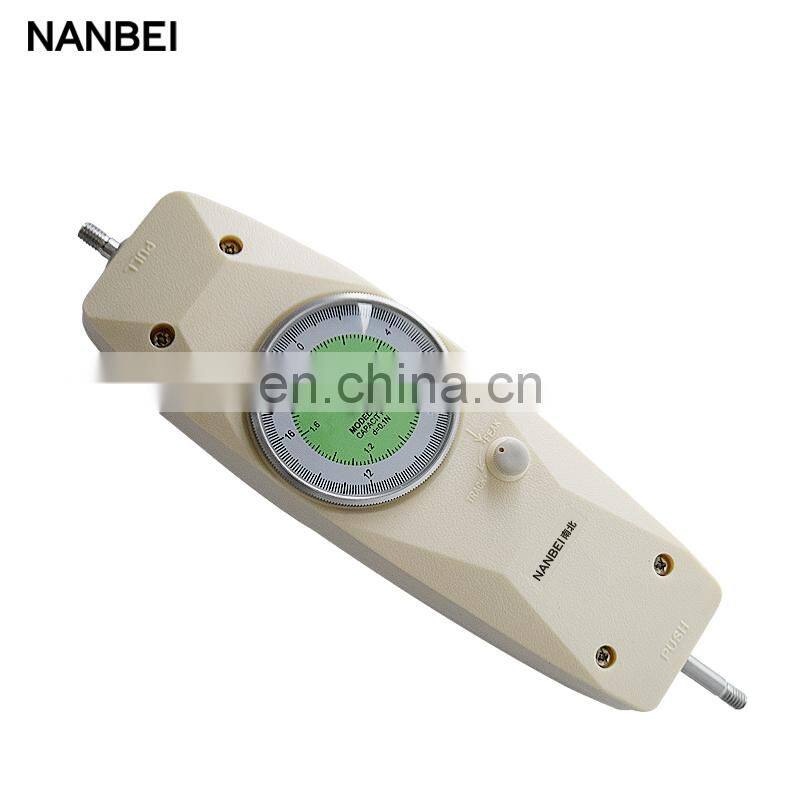

Manual Dial Force Gauge
Application and Usage
The NK, NLB, ALB series are dial force gauge with compact size and high accuracy.
They are easy to operate and handy to carry out. Widely applied in rubber plastic, light industry, textile,
building windows and doors, compound materials, electric wire and cable, auto part, power generator,
scientific research institute to do the push pull force insertion force and destructive experiment.
More Details
Feature
1.With easy operate and can be installed with all kinds of test stand and clamp.
2.Peak holding function and continuous.
3.One year free maintenance.
4.Compact and artistic packing, easy to transit and stock.
5.Two kind of unit dual show at the same time,don't need unit conversion.
6.NK Series: Newton and Kilogram dual unit;
NLB Series: Newton and Pound dual unit;
ALB: Pound and Kilogram dual unit.
Needle indicates, easy to read, high accuracy
Specification
Model | NK-20 | NK-30 | NK-50 | NK-100 | NK-200 | NK-300 | NK-500 | ||||||
Max load | 20N 2kg | 30N 3kg | 50N 5kg | 100N 10kg | 200N 20kg | 300N 30kg | 500N 50kg | ||||||
Min load | 2N 0.2kg | 3N 0.3kg | 5N 0.5kg | 10N 1kg | 20N 2kg | 30N 3kg | 50N 5kg | ||||||
Load graduation value | 0.1N 20g | 0.2N 20g | 0.25N 50g | 0.5N 100g | 1.0N 200g | 2.0N 200g | 2.5N 500g | ||||||
Rod journey | 10mm | ||||||||||||
Work temperature | 20°土10℃ | ||||||||||||
Carry temperature | -27℃~+70℃ | ||||||||||||
Relative humidity | 15%~80%RH | ||||||||||||
Work environment | No vibrancy and no cautery | ||||||||||||
Model | ALB-4 | ALB-10 | ALB-20 | ALB-40 | ALB-100 | ||||
Max load | 4.5Ib 2kg | 11Ib 5kg | 22Ib 10kg | 45Ib 20kg | 110Ib 50kg | ||||
Min load | 0.45Ib 0.2kg | 1Ib 0.5kg | 2.2Ib 1.1kg | 4.5Ib 2.2kg | 11Ib 5.5kg | ||||
Load graduation value | 0.02Ib 0.02kg | 0.05Ib 0.05kg | 0.1Ib 0.1kg | 0.2Ib 0.2kg | 0.5Ib 0.5kg | ||||
Rod journey | 10mm | ||||||||
Work temperature | 20°+-10℃ | ||||||||
Carry temperature | -27℃~+70℃ | ||||||||
Relative humidity | 15%~80%RH | ||||||||
Work environment | No vibrancy and no cautery | ||||||||
Model | NLB-20 | NLB-30 | NLB-50 | NLB-100 | NLB-200 | NLB-300 | NLB-500 | ||||||
Max load | 20N 4.4Ib | 30N 6.6Ib | 50N 11Ib | 100N 22Ib | 200N 44Ib | 300N 66Ib | 500N 110Ib | ||||||
Min load | 2N 0.4Ib | 3N 0.6Ib | 5N 1Ib | 10N 2Ib | 20N 4Ib | 30N 6Ib | 50N 10Ib | ||||||
Load graduation value | 0.1N 0.04Ib | 0.2N 0.04Ib | 0.25N 0.1Ib | 0.5N 0.2Ib | 1.0N 0.4Ib | 2.0N 0.4Ib | 2.5N 1.0Ib | ||||||
Rod journey | 10mm | ||||||||||||
Work temperature | 20°+-10℃ | ||||||||||||
Carry temperature | -27℃~+70℃ | ||||||||||||
Relative humidity | 15%~80%RH | ||||||||||||
Work environment | No vibrancy and no cautery | ||||||||||||
Recommendations
Packing & Delivery
Company Profile
FAQ
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can we visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
1.Warranty : 1 year
2.We supply free part for quality problem in warranty
3.Long life technical support and service
