Force Measuring Instruments push and pull force testing tools
Product Description
The NHF series are digital force gauge with compact size, high accuracy,
They are easy to operate and handy to carry out.
Widely applied in electron, high & low voltage electrical appliance, hardware, automobile parts,
lighter and ignition system, light industry, mechanical, textile,
and so on industries for testing of pull or push load test, insertion force or pull and destructive experiment.
This digital force gauge is new generation pulls the pressure measuring instrument.
Character:
1.Connect the computer in-phase test.
2.The compare value set by user’s request.
3.Big memory deposit function.
4.LCD overturns show.
5.Auto peak.
6.Auto close time set
|
Model |
NHF-2000 |
NHF-5000 |
NHF-10K |
NHF-20K |
NHF-50K |
NHF-100K |
NHF-200K |
NHF-500K |
NHF-1000K |
|||
|
Peak load value |
2000N |
5000N |
10KN |
20KN |
50KN |
100KN |
200KN |
500KN |
1000KN |
|||
|
load division value |
1N |
1N |
0.01KN |
0.01KN |
0.01KN |
0.1KN |
0.1KN |
0.1KN |
1KN |
|||
|
0.1kg |
0.1kg |
0.001kg |
0.001kg |
0.001kg |
0.01kg |
0.01kg |
0.01kg |
0.1kg |
||||
|
0.1lbs |
0.1lbs |
0.001Klbs |
0.001Klbs |
0.001Klbs |
0.01Klbs |
0.01Klbs |
0.01Klbs |
0.1Klbs |
||||
|
Indication error |
±1% |
±1% |
||||||||||
|
Unit |
N / (KN), kg / (Mg or t), lb (KIb) |
|||||||||||
|
Data interface |
Rs232 nine-hole socket |
|||||||||||
|
Power |
rechargeable batteries, charger(charging voltage 100V-240V) |
|||||||||||
|
Sensor structure |
S-tye or column sensor with high precision (external sensor) |
|||||||||||
|
Ambient temp. |
5° C~35° C |
|||||||||||
|
Transport temp. |
-10° C~60° C |
|||||||||||
|
Relative humidity |
15%~80%RH |
|||||||||||
|
Working conditions |
No hypocenter and corrosive medium |
|||||||||||
|
Gross weight |
6 kg |
9 kg |
24 kg |
36 kg |
||||||||
|
Size |
280 x 200 x 170 mm |
310 x 260 x 190 mm |
||||||||||
|
Model |
NHF-2000K |
NHF-3000K |
|
Peak load value |
2000KN |
3000KN |
|
load division value |
1KN |
|
|
0.1Mg |
||
|
0.1Klb |
||
|
Indication error |
±1% |
|
|
Unit |
N / (KN), kg / (Mg or t), lb (Klb) |
|
|
Data interface |
Rs232 nine-hole socket |
|
|
Power |
rechargeable batteries, charger(charging voltage 100V-240V) |
|
|
Sensor structure |
S-type or column sensor with high precision (external sensor) |
|
|
Ambient temperature |
5° C~35° C |
|
|
Transport temperature |
-10° C~60° C |
|
|
Relative humidity |
15%~80%RH |
|
|
Working conditions |
No hypocenter and corrosive medium |
|
|
Gross weight |
36 kg |
|
|
Size |
310 x 260 x 190 mm |
|
Pre-sale service
² 24hours online to ensure quick response to customers' inquiry or online message;
² Guide customers to choose the best suitable machine model;
² Offer detailed specification and competitive prices;
Contract execution
² Machine production will be arranged strictly according to the contract;
² Machine photos will be sent to you for inspection during production;
² Send customs clearance documents by DHL;
² Update latest news after delivery and prepare customs clearance;
After-sale service
² 12 months warranty except for wear parts;
² Broken spare parts (except for wear parts) will be sent for free due to quality problems;
² In time response to customers technical problems;
² New products update for customers' reference
DIgital force gauge

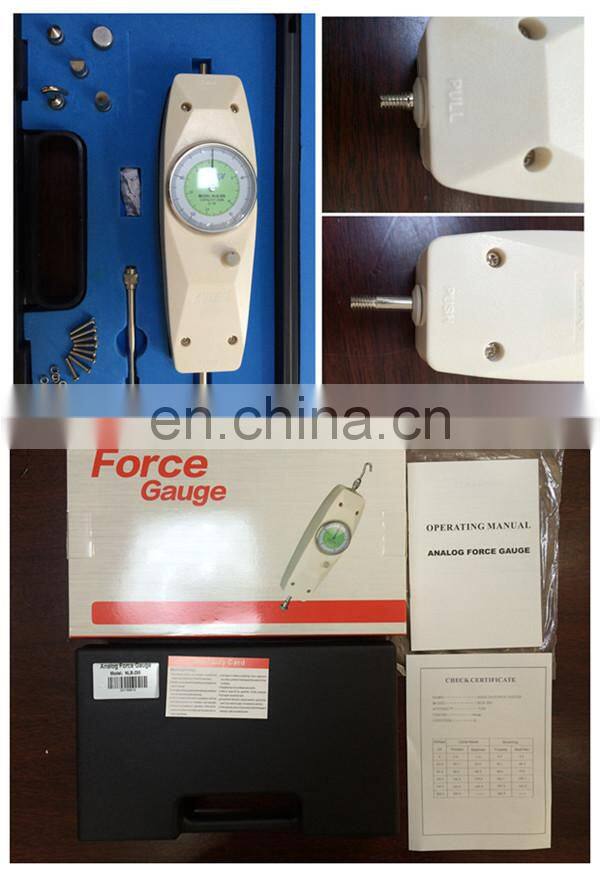

Analog Force Gauge
