Product Description

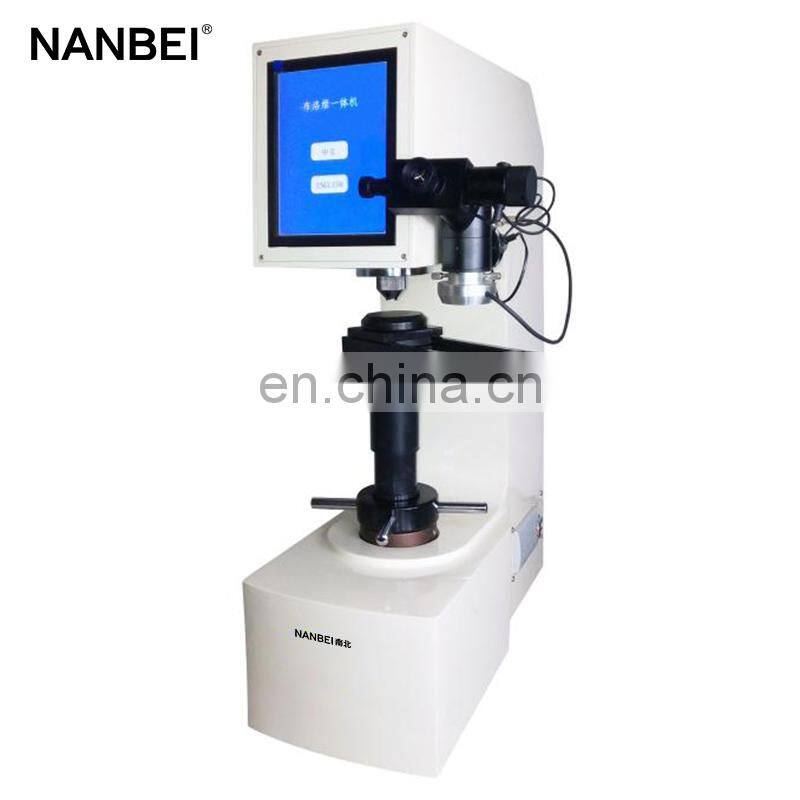

Digital hardness tester

Application: The Brinell, Vickers, and Rockwell hardness of ferrous metals, non-ferrous metals, and non-metals were measured. Wide range of applications, can be widely used for determination: a. Brinell hardness of castings, annealed steels, normalized steels, non-ferrous metals and soft alloys; b. Rockwell hardness of heat-treated materials such as quenching and quenching and tempering; c. Vickers hardness of the nitrided layer, ceramic, sheet, metal foil, electroplated layer, and small parts. Product Features: 1.HBRVS-187.5 Brinell-Rockwell-Vickers Multi-Function digital hardness tester adopt 8 -inch touch screen and high-speed ARM processor, Visual display, friendly man-machine interaction, easy operation； 2.The machine body is integral casting by high quality cast iron,, with the automotive paint treatment process, the appearance is round and beautiful; 3.The measuring device adopt grating displacement sensor, the test results are displayed on the LCD screen, the test scale, test force, indenter type, holding time and the conversion unit can be displayed and set； 4.It has three kinds of test methods: Brinell, Rockwell and Vickers, and multi-level test force, which can meet various hardness test requirements； 5.The electronic closed-loop control exerts the test force, fully realizes the automatic operation of loading,holding and unloading of the test force; 6.HD measurement and observation - dual objective lens combination, combined with the built-in length encoder HD micrometer eyepiece, to achieve indentation diagonal one-key measurement, greatly reduce the manual interference and reading error； 7.The built-in test software can correct the hardness value of the machine； 8.Convenient control system can automatically convert the unit of full hardness scale; 9.Built-in printer, and can output data through USB and the RS232 port.

More Details Photos

Specification

Model			HBRVS-187.5
Test Force	Rockwell	60、100、150kgf（588、980、1471N）
		Brinell	15.625、31.25、62.5、125、187.5kgf 153.2、306.5、612.9、1226、1839N
		Vickers	5、10、20、30、50、100kgf 49.03、98.07、196.1、294.2、490.3、980.7N
Ruler type	Rockwell	HRA、HRB、HRC、HRD、HRF、HRG
		Brinell	HBW2.5/15.625 、HBW2.5/31.25 、HBW2.5/62.5 HBW5/125 、HBW2.5/187.5
		Vickers	HV5、HV10、HV20、HV30、HV50、HV100
Range of Measurement	Rockwel	20-95HRA、10-100HRBW、20-70HRC
		Brinell	5-650HBW
		Vickers	5-3000HV
Total Multiple			25X、50X、100X
Beeline between Indenter Center and Wall			160mm
Available Maximum Height of Specimen	Rockwel	210mm
Available Maximum Height of Specimen		Brinel，Vickey	180mm
Outline Dimension			550290780mm
Weight			80kg

Recommend Products

Packing & Delivery

Company Profile

Customer Concerns

FAQ: Q1: Why Choose NANBEI ? (1).Professional manufacturer with more than 13 years experience (2).Exported to more than 97% Countries (3).Turnkey Solution is no problem Q2:OEM,ODM acceptable or not? Absolutely Yes Q3:What's kind of Payment terms for customer choosing? T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ... Q4:Can we visit your factory online? Absolutely no problem Q5:Can online video inspection before shipment? Absolutely no problem Q6: what's the MOQ ? Sample order is OK? MOQ:1 set, sample order is no problem Q7:What's kind of shipment for customer choosing? Usually ship by sea, by air, by international express . We can also provide reasonable solutions according to your transportation requirements Q8:How to ensure product quality and after-sales service? We have CE, ISO quality certificate, and SGS authentication. After-sale service: 1.Warranty : 1 year 2.We supply free part for quality problem in warranty 3.Long life technical support and service
