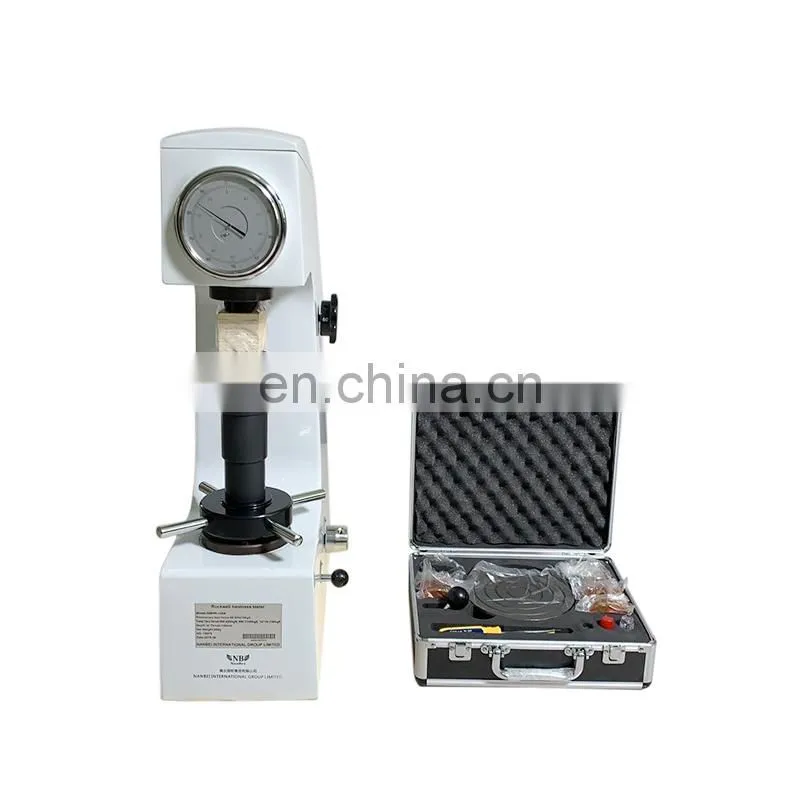

Manual Metal iron materials testing Rockwell hardness tester
* Manual testing process, no need for electric controlling
* It's steady and reliable for testing of curved surface
* Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18
It's suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials.
It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching,
hardening and tempering, etc.
Specifications:
Measuring range: 20-88HRA, 20-100HRB, 20-70HRC
Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)
Max. height of test piece: 170mm
Depth of throat: 135mm
Min. scale value: 0.5HR
Dimensions: 466 x 238 x 630mm
Weight: approx. 65kg

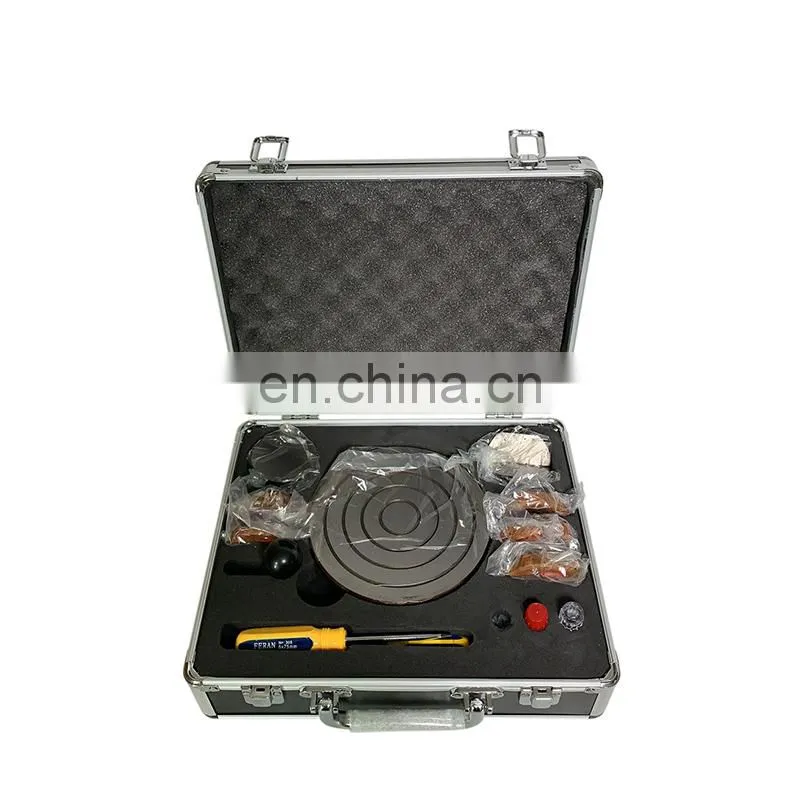

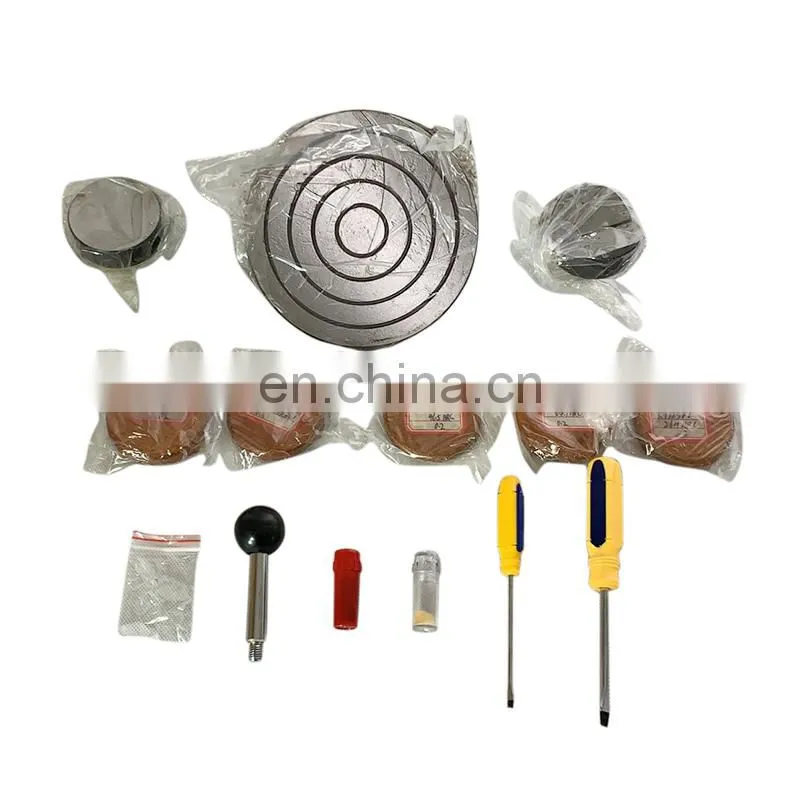

Standard accessories
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Diamond cone penetrator: 1 pc.
1/16" steel ball penetrator: 1 pc.
Rockwell standardized block: 5 pcs.
More Product pictures
Please feel free contact for more details .Thanks
