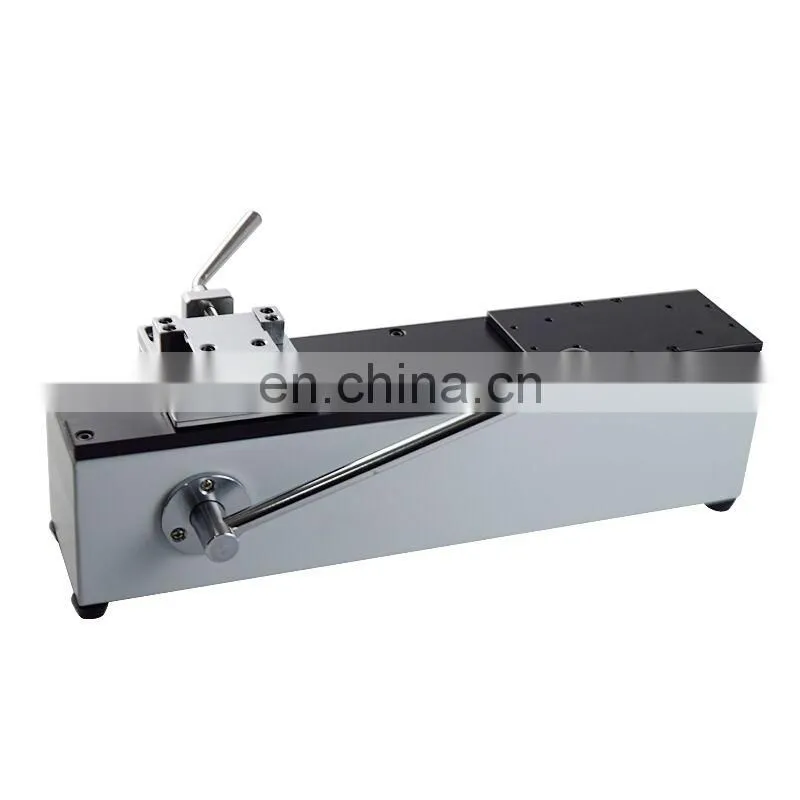

Manual Horizontal Wire Terminal Pulling-Out Force Test Stand for Force GaugeNegotiableMOQ: 1
Manual type 20T force Hydraulic Test Stand
ALR Hydraulic Manual Test Stand is designed for HF series push pull force gauge operation,
manual operation. Using large hydraulic jacks to realize big load force test, Simple and stable operation, it can be combined with different fixtures in various combinations of different purposes
compressive load test.
Specification
|
Max. Load |
5k |
5T |
10T |
20T |
50T |
|
Compress chamber |
150mm |
240mm |
280mm |
245mm |
290mm |
|
Stretching chamber |
185mm |
120mm |
130mm |
165mm |
150mm |
|
Effective stroke |
90mm |
125mm |
125mm |
145mm |
160mm |
|
Size(mm) |
190×140×880 |
225×180×1000 |
300×300×1185 |
300×300×1220 |
350×350×1410 |
|
N.W |
30kg |
41.6kg |
90.3kg |
98kg |
194kg |
Attention
1:The test rack can be ordered according to user's request of specifications.
2:Order force gauge in pictures as a separate item.
3:When installation, please install sensor, the machine, jack in intermediate position.
When using, the direction of push pull loaded force should in the middle of the machine
Product picture

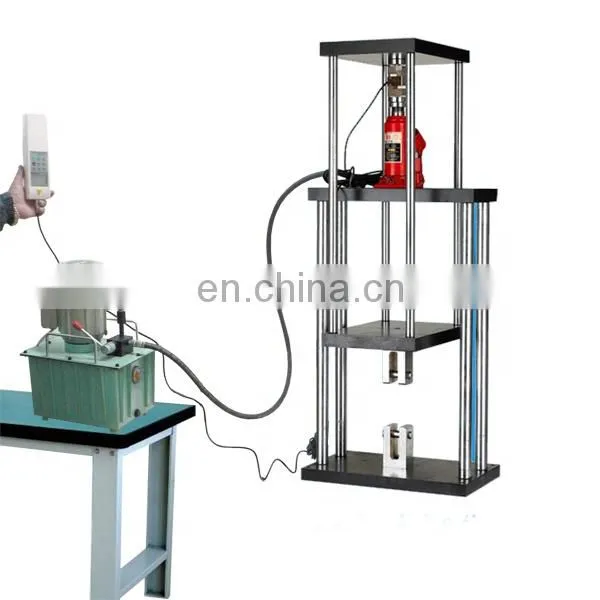

Manual Hydraulic Test Stand
ADL Terminal Pulling Force Tester
ASC Side Shake Screw Test Stand
