Lab 1000N.m Torque Wrench Calibrator Tool Torque Wrench Equipment
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Mini Mechanical N Kgf Lbf Analog 500N Force Gauge
-
Drinks Wine Beer Water Treatment Portable Turbidity Meter Price
-
Micro Automatic Testing Metal Steel Hardness Tester
-
200cN 100n Handheld Digital Tension Meter for Textile
-
5nm 50nm 100nm 500nm 2000nm Digital Dynamic Torque Meter
-
1000N 2000N 3000N 4000N 5000N Electronic Digital Display Torquemeter
Product Description
Product Description

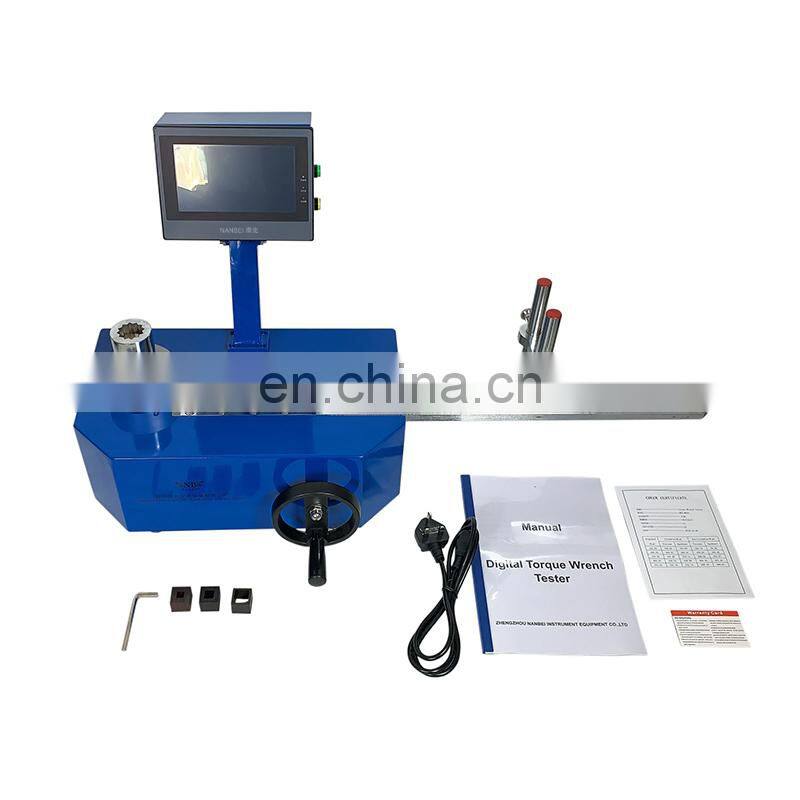

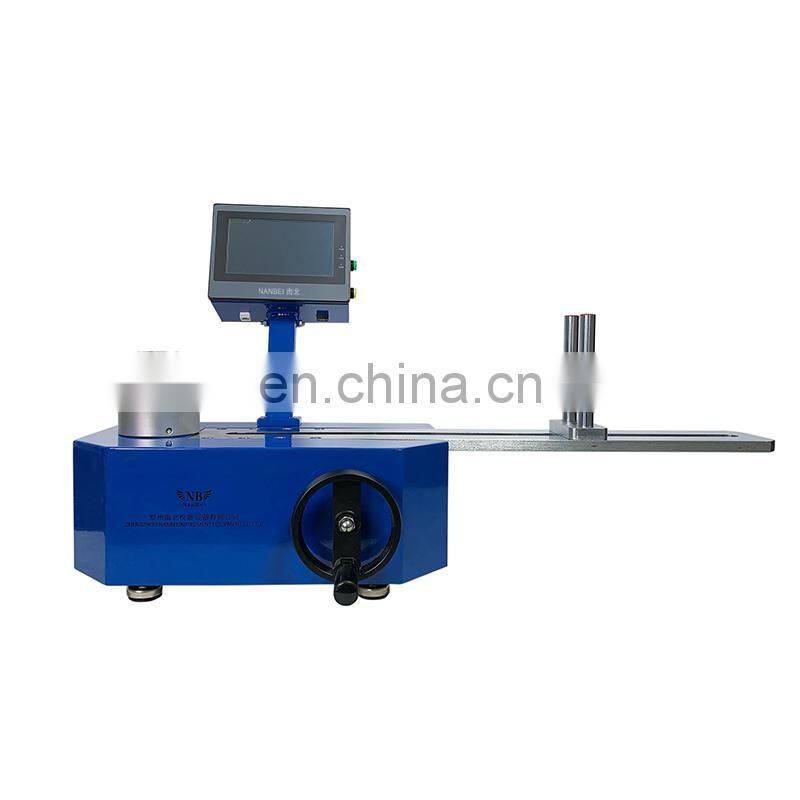

High Precision Torque Wrench Calibration Tester
Application and Usage
The NNJ-M torque wrench tester is a special device for verifying torque wrenches and torque wrenches
Mainly used to detect a variety of fixed-type torque wrench, digital torque wrench, preset torque wrench, torque screwdriver, screwdriver and other equipment involved in tightening force and products
Widely used in electrical manufacturing, machinery manufacturing, automotive light industry, professional research and testing industry
More Details
Feature
1. Seven-inch touch screen, can display real-time curve;
Can switch between Chinese and English;
3. The use of high-precision torque sensor, with torque direction display;
4. Three units convert each other to choose from (N.m kgf.cm Ibf.in)
5. Can be inserted U disk to save the data can be printed;
6. Storage capacity, you can save the data to the U disk, save the data automatically saved as Excel format documents.
7. Using worm gear drive, the torque load more stable, more effort to operate.
Specification
Model | NNJ-M100 | NNJ-M200 | NNJ-M300 | NNJ-M500 | NNJ-M1000 | NNJ-M2000 | NNJ-M3000 | ||||||||
Measurement range / scale value | N.m | 100.0/0.01 | 200.00/0.01 | 300.00/0.01 | 500.00/0.01 | 1000.0/0.1 | 2000/0.1 | 3000/0.1 | |||||||
Kgf.cm | 1021.0/0.1 | 2040.0/0.1 | 3063.1/0.1 | 5105.2/0.1 | 10210/1 | 20420/1 | 30631/1 | ||||||||
lbf.in | 886.2/0.1 | 1772.4/0.1 | 2658.6/0.1 | 4431.1/0.1 | 8862/1 | 17724/1 | 26586/1 | ||||||||
Dimension | 880mm×350mm×550mm | 1250mm×500mm×800mm | |||||||||||||
Check length range | 130mm~750mm | 250mm~980mm | 250mm~1800mm | ||||||||||||
Width stroke | 0~60° | 0~360° | |||||||||||||
Height stroke | 130mm | 150mm | |||||||||||||
Accuracy | ±1％ | ||||||||||||||
Peak sampling frequency | 2000HZ | ||||||||||||||
Power | AC220V/50HZ | ||||||||||||||
Net weight | 65kg | 335kg | |||||||||||||
Recommendations
Packing & Delivery
Company Profile
FAQ
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can we visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
1.Warranty : 1 year
2.We supply free part for quality problem in warranty
3.Long life technical support and service
