Specification

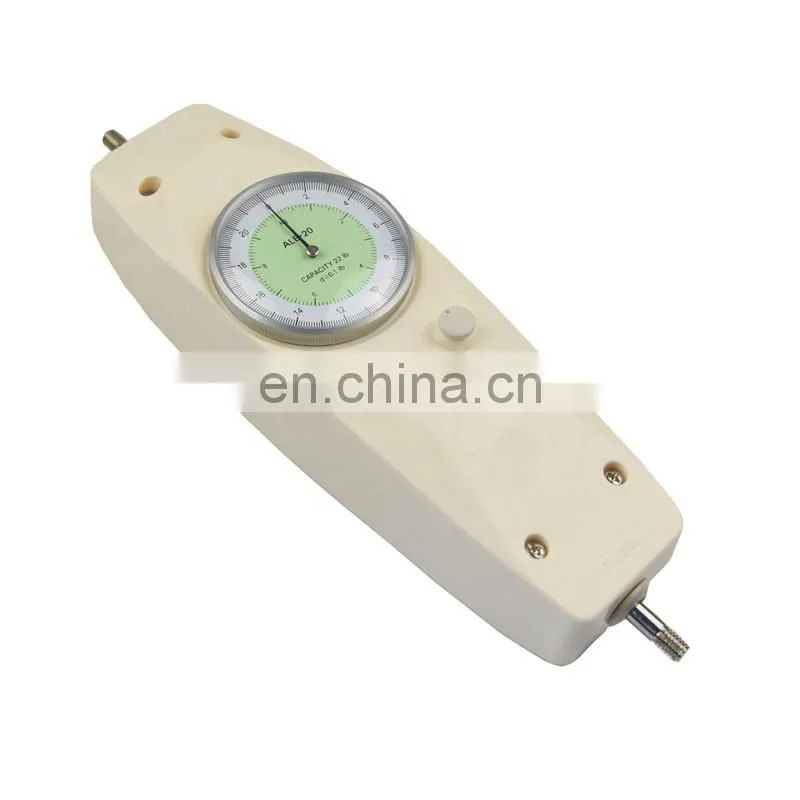

N Kgf Lbf Analog Push Pull Force Gauge
The NK, NLB, ALB series are dial force gauge with compact size and high accuracy.
They are easy to operate and handy to carry out. Widely applied in rubber plastic, light industry, textile,
building windows and doors, compound materials, electric wire and cable, auto part, power generator,
scientific research institute to do the push pull force insertion force and destructive experiment.
Character
1.With easy operate and can be installed with all kinds of test stand and clamp.
2.Peak holding function and continuous.
3.One year free maintenance.
4.Compact and artistic packing, easy to transit and stock.
5.Two kind of unit dual show at the same time,don't need unit conversion.
6.NK Series: Newton and Kilogram dual unit;
NLB Series: Newton and Pound dual unit;
ALB: Pound and Kilogram dual unit.
Needle indicates, easy to read, high accuracy
Technical data
Model |
NK-20 |
NK-30 |
NK-50 |
NK-100 |
NK-200 |
NK-300 |
NK-500 |
||||||
Max load |
20N 2kg |
30N 3kg |
50N 5kg |
100N 10kg |
200N 20kg |
300N 30kg |
500N 50kg |
||||||
Min load |
2N 0.2kg |
3N 0.3kg |
5N 0.5kg |
10N 1kg |
20N 2kg |
30N 3kg |
50N 5kg |
||||||
Load graduation value |
0.1N 20g |
0.2N 20g |
0.25N 50g |
0.5N 100g |
1.0N 200g |
2.0N 200g |
2.5N 500g |
||||||
Rod journey |
10mm |
||||||||||||
Work temperature |
20°土10℃ |
||||||||||||
Carry temperature |
-27℃~+70℃ |
||||||||||||
Relative humidity |
15%~80%RH |
||||||||||||
Work environment |
No vibrancy and no cautery |
||||||||||||
Model |
ALB-4 |
ALB-10 |
ALB-20 |
ALB-40 |
ALB-100 |
||||
Max load |
4.5Ib 2kg |
11Ib 5kg |
22Ib 10kg |
45Ib 20kg |
110Ib 50kg |
||||
Min load |
0.45Ib 0.2kg |
1Ib 0.5kg |
2.2Ib 1.1kg |
4.5Ib 2.2kg |
11Ib 5.5kg |
||||
Load graduation value |
0.02Ib 0.02kg |
0.05Ib 0.05kg |
0.1Ib 0.1kg |
0.2Ib 0.2kg |
0.5Ib 0.5kg |
||||
Rod journey |
10mm |
||||||||
Work temperature |
20°+-10℃ |
||||||||
Carry temperature |
-27℃~+70℃ |
||||||||
Relative humidity |
15%~80%RH |
||||||||
Work environment |
No vibrancy and no cautery |
||||||||
Model |
NLB-20 |
NLB-30 |
NLB-50 |
NLB-100 |
NLB-200 |
NLB-300 |
NLB-500 |
||||||
Max load |
20N 4.4Ib |
30N 6.6Ib |
50N 11Ib |
100N 22Ib |
200N 44Ib |
300N 66Ib |
500N 110Ib |
||||||
Min load |
2N 0.4Ib |
3N 0.6Ib |
5N 1Ib |
10N 2Ib |
20N 4Ib |
30N 6Ib |
50N 10Ib |
||||||
Load graduation value |
0.1N 0.04Ib |
0.2N 0.04Ib |
0.25N 0.1Ib |
0.5N 0.2Ib |
1.0N 0.4Ib |
2.0N 0.4Ib |
2.5N 1.0Ib |
||||||
Rod journey |
10mm |
||||||||||||
Work temperature |
20°+-10℃ |
||||||||||||
Carry temperature |
-27℃~+70℃ |
||||||||||||
Relative humidity |
15%~80%RH |
||||||||||||
Work environment |
No vibrancy and no cautery |
||||||||||||

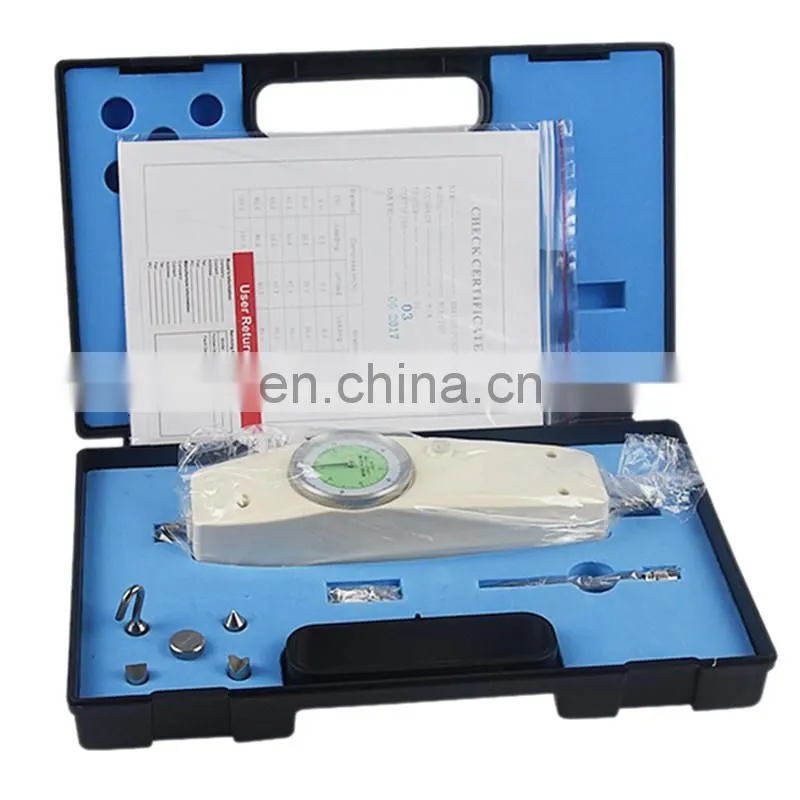

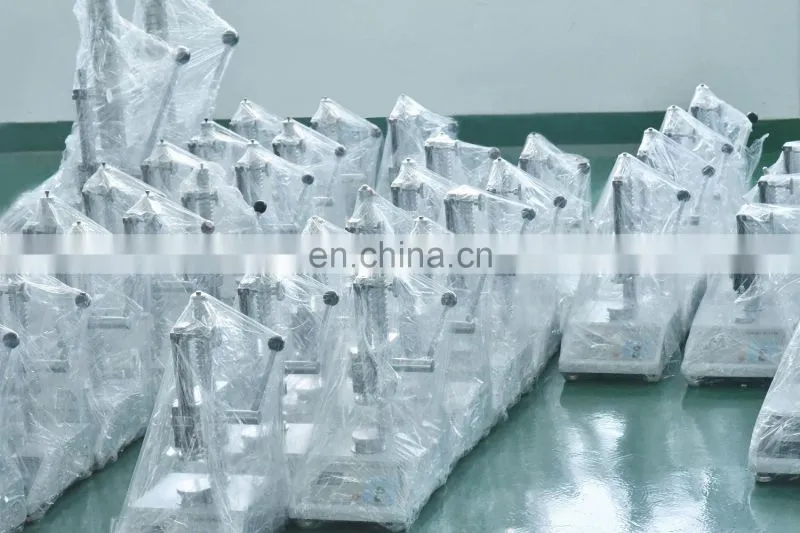

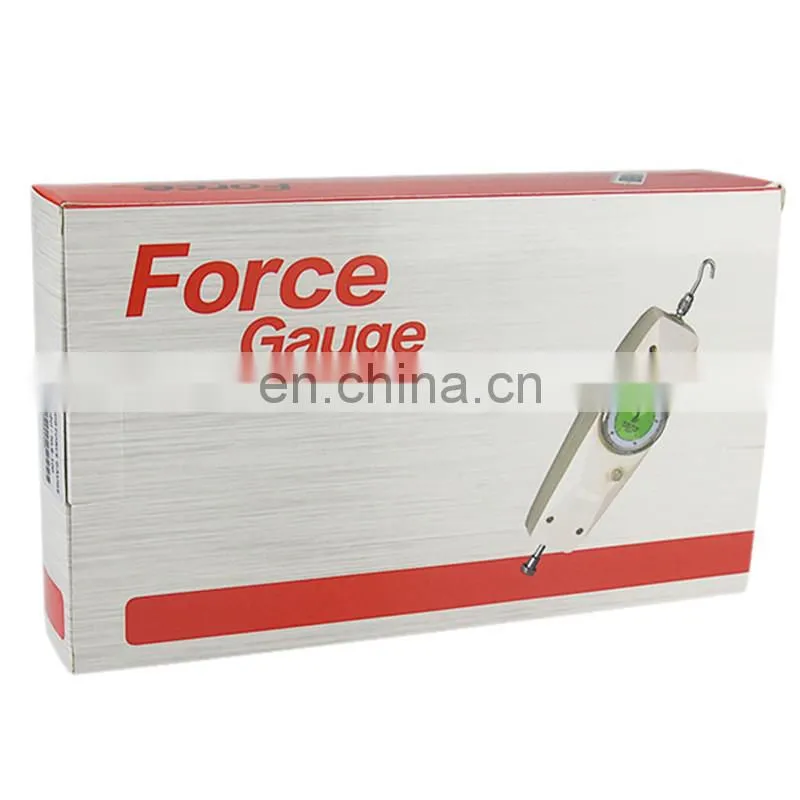

Packing & Delivery
More Products

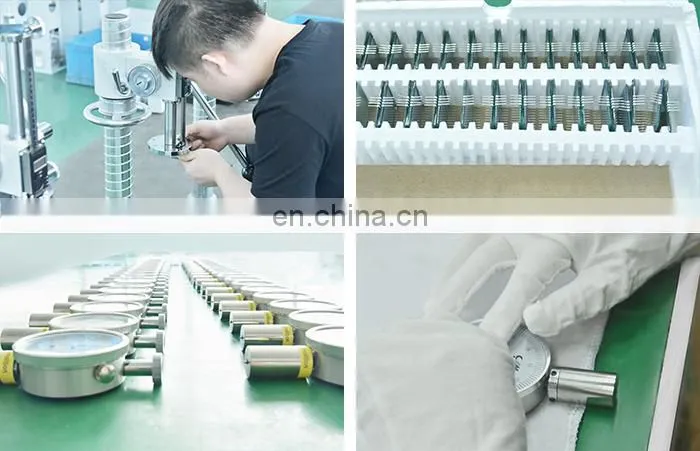

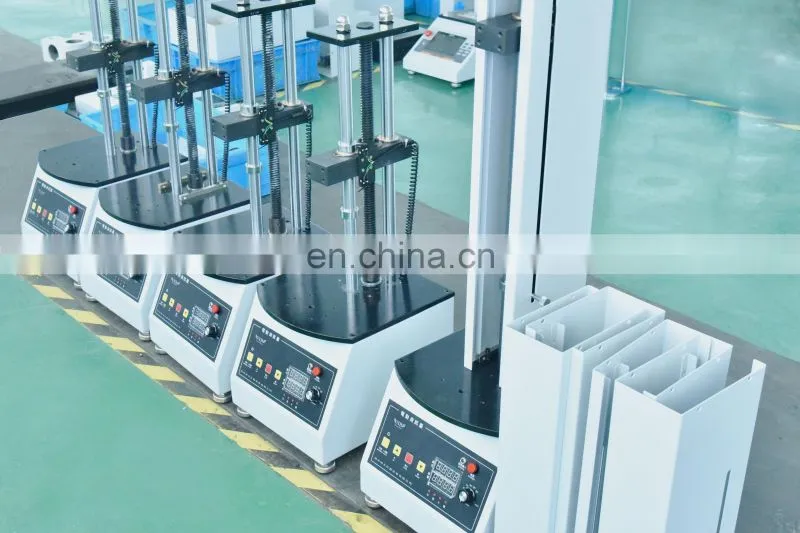

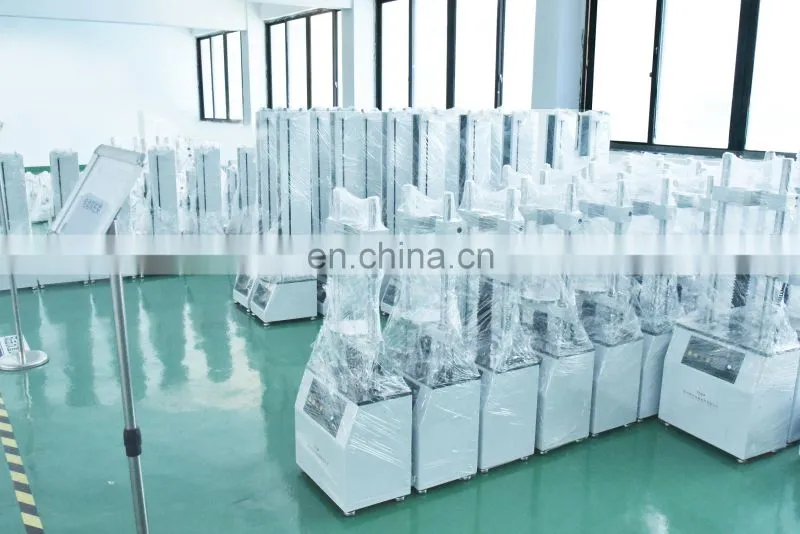

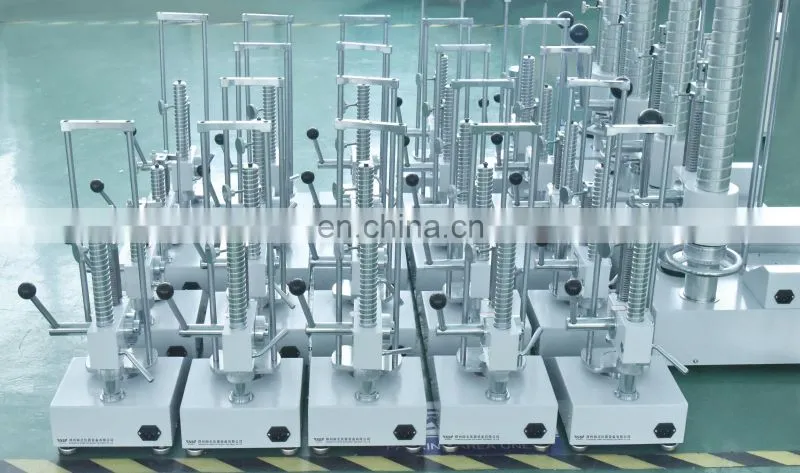

Factory
