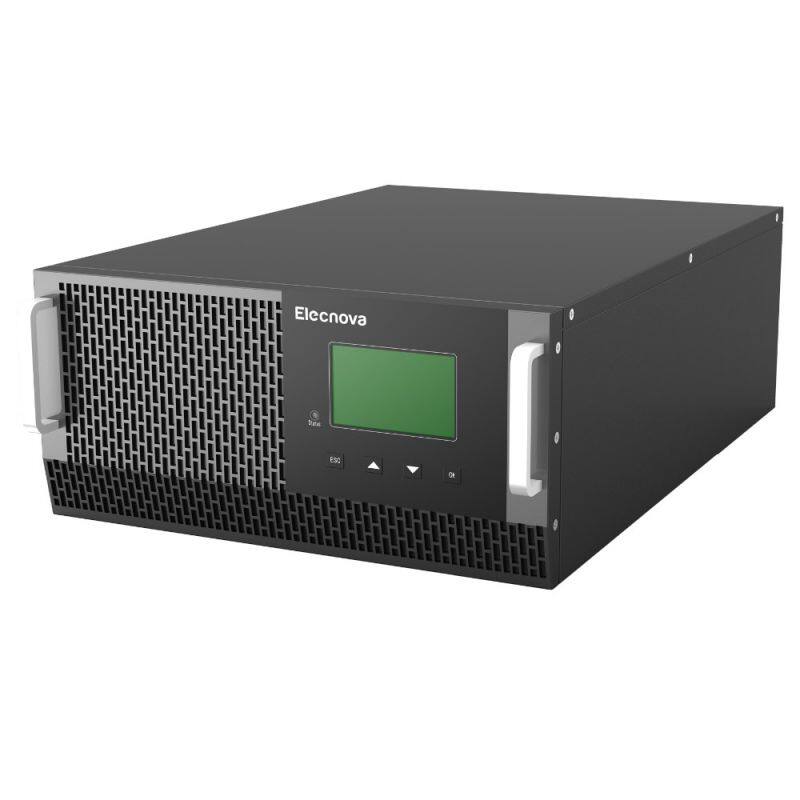

SFR-SVG 50kvar SVG Integrated Low Voltage Kvar Power Capacitor Bank
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Elecnova SFR-L Series Power Factor Correction Intelligent Low Voltage Power Distribution Equipment Capacitor Bank
-
Elecnova SFR-L Series Reactive Power Compensation Intelligent Low Voltage Super Power Capacitor
-
Elecnova SFR-L Series Power Quality Improvement 0.4KV Compensation Module Power Capacitor
-
SFR-SVG Industrial Power Capacitor Smart Reactive Compensation Module
-
Elecnova SFR-L Series Power Factor Correction Intelligent Low Voltge Capacitor
-
SFR-L Series Low-voltage Industrial Power Capacitor Smart Reactive Compensation Module
Product Description
Product Description
Elecnova wall-mounting type low voltage anti-harmonic reactive compensation static var generator SVG is a parallel type static var generator. The basic principle is to connect the bridge type convertor circuit in parallel (or directly in parallel) on the power grid through reactors. The phase and amplitude of the output voltage of the AC side of the bridge converter circuit or the AC side current of the bridge converter circuit are appropriately adjusted so that the circuit can absorb or issue a reactive current meeting the requirements, thereby realizing the purpose of dynamic reactive power compensation.
Product name | SFR-SVG 50kvar SVG integrated low voltage kvar power capacitor bank |
Protection level | IP20 |
Overall efficiency | 97.5% |
Display operation interface | LCD+ indicator |
Operating temperature | -25℃~40℃(Derating when above 40°C) |
Cooling method | Forced air-cooled |
Insulation resistance | >10 MΩ(500Vdc) |
Advantages

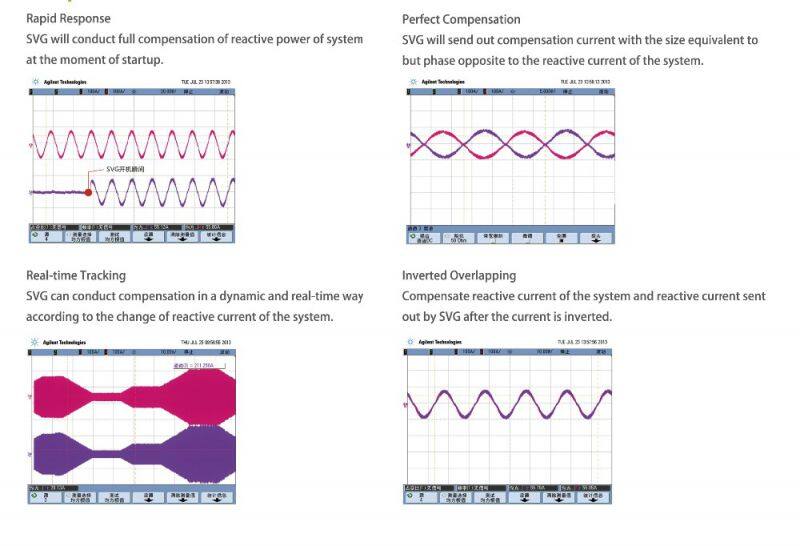

*Intelligent resonance elimination and strong adaptability
*Fundamental wave reactive power,harmonic and unbalance compensation
*Dynamic continuous smooth compensation and higher response speed
*Modular design, flexible configuration, multi-machine operation in parallel, easy to expand capacity
Technical parameter
Function | Technical parameter | Feature (accuracy) | |
Measurement | Current | ≤0.5 %(within the range 20%~120% of rated current) | |
Voltage | ≤0.5 %(within the range 50%~120% of rated voltage) | ||
Power | ≤1% | ||
Power factor | ±0.01 | ||
Switching mode | Zero-crossing switch | ||
Compensation operation | Working voltage | AC 380V±20%, distortion rate≤5% | |
Consumption | ≤5VA | ||
Max. working current | 1.35*In | ||
Switching inrush current | ≤*In | ||
Local protection | Over current | 0~100A (can be set) | |
Over temperature | 20℃~80℃(can be set) | ||
Unbalance | 0%~200%(can be set, only for total compensation) | ||
Working temperature | -25℃~50℃ | ||
Storage temperature | -25℃~55℃ | ||
Altitude | <2000m | ||
Production Process
SMT
AOI Test
Plug-In Mounting
Wave Soldering
Assembling
Inspection
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin City, Jiangsu province.
Q: How long is your delivery time?
A: Order amount less than $3000, or a single model less than 500pcs, delivery time is 7-10working days after confirmation.
Q: Do you provide samples ? is it free or extra ?
A: Free sample is available, freight collect.
Q: What is your terms of payment ?
A: Payment<=3000USD,we prefer the transaction via Alibaba Trade Assurance, 100% before delivery, order amount more than 3000USD, 30% T/T in advance ,balance before shippment.
