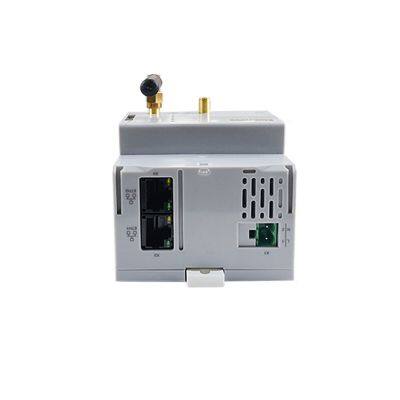

Product name：wireless communication module for technological networks iot gateway
SC4-GPRS module (hereinafter referred to as SC4) is a wireless transmission module based on the GPRS
way, using the existing mobile network can easily let your device realize wireless connection with Internet. It has many
advantages, such as wide network coverage, flexible and fast networking.
way, using the existing mobile network can easily let your device realize wireless connection with Internet. It has many
advantages, such as wide network coverage, flexible and fast networking.
Advantage
■ power supply：by itself
■ Launch frequency：100MW
■ communication rate：Max 115200bps （default 9600bps）
■ Available meters：1-32 pcs power meters
■ Launch frequency：100MW
■ communication rate：Max 115200bps （default 9600bps）
■ Available meters：1-32 pcs power meters

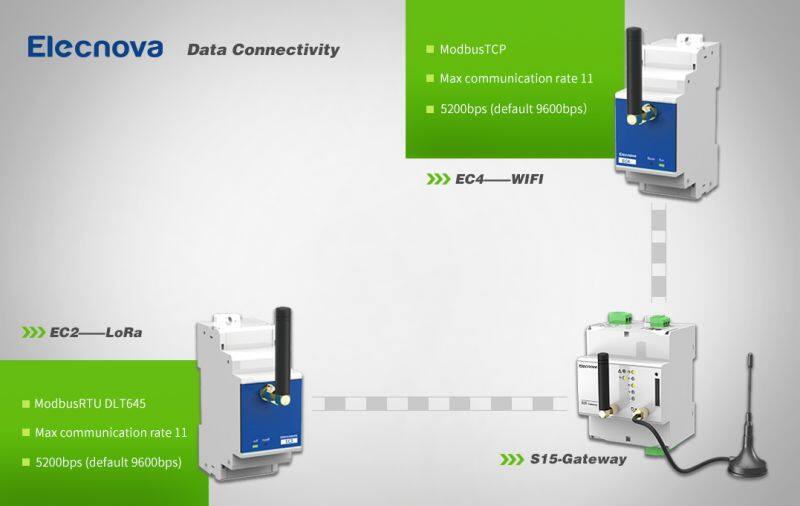

Data flow
Product Paramenters
Hardware resource | ||||||
LED | 1Rd.running light ,2Rd. RS485 lights ,1Rd. Ethernet light ,1Rd. wireless light | |||||
RS485 | 2 Rd. | |||||
Ethernet | 2 Rd. | |||||
Extension | 2G、4G、NB-IoT、LORA、WIFI | |||||
Working environment conditions | ||||||
Working voltage | AC220V±20V 50Hz | |||||
Working temperature | -25...+70℃ | |||||
Storage temperature | -40...+85℃ | |||||
Relative humidity | ≤95%RH，noncondensing | |||||
Work altitude | ≤2000m | |||||
Protection level | IP20 | |||||
Insulation | double insulation | |||||
Voltage withstand | 2.5kV AC/1min | |||||
Communication interface | ||||||
Interface | Two RJ45(100M), electrostatic 6 KV | |||||
Standards | IEEE 802.3 | |||||
Communications agreements | Modbus TCP/IP,Modbus RTU,MQTT etc. | |||||
Electromagnetic Compatibility | ||||||
Electrostatic discharge immunity | IEC 61000-4-2- III level | |||||
Radiofrequency electromagnetic radiation immunity | IEC 61000-4-3- III level | |||||
Immunity of electric fast transient pulse group | IEC 61000-4-4- IV level | |||||
Impact (surge) immunity | IEC 61000-4-5- IV level | |||||
Dimensions and wiring diagrams
