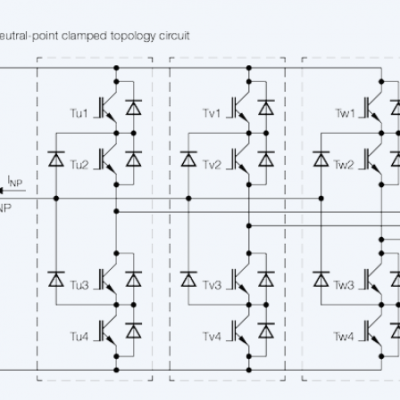

Elecnova wall-mounting type low voltage anti-harmonic reactive compensation static var generator SVG is a parallel type static var generator. The basic principle is to connect the bridge type convertor circuit in parallel (or directly in parallel) on the power grid through reactors. The phase and amplitude of the output voltage of the AC side of the bridge converter circuit or the AC side current of the bridge converter circuit are appropriately adjusted so that the circuit can absorb or issue a reactive current meeting the requirements, thereby realizing the purpose of dynamic reactive power compensation.
Product name |
SFR-SVG reactive compensation harmonic suppression power capacitor |
Protection level |
IP20 |
Overall efficiency |
97.5% |

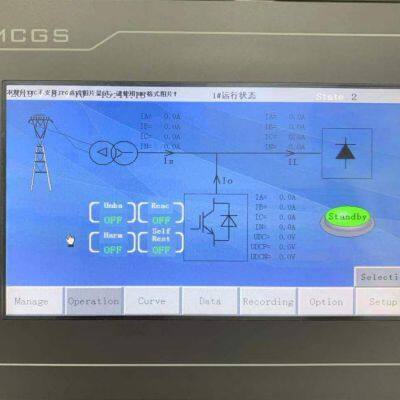

Display operation interface |
LCD+ indicator |
Operating temperature |
-25℃~40℃(Derating when above 40°C) |
Cooling method |
Forced air-cooled |
Insulation resistance |
>10 MΩ(500Vdc) |
Advantages
Current |
≤0.5 %(within the range 20%~120% of rated current) |
||
Voltage |
≤0.5 %(within the range 50%~120% of rated voltage) |
||
Power |
≤1% |
||
Power factor |
±0.01 |
||
Switching mode |
Zero-crossing switch |
||
Working voltage |
AC 380V±20%, distortion rate≤5% |
||
Consumption |
≤5VA |
||
Max. working current |
1.35*In |
||
Switching inrush current |
≤*In |
||
Local protection
|
Over current |
0~100A (can be set) |
|
Over temperature |
20℃~80℃(can be set) |
||
Unbalance |
0%~200%(can be set, only for total compensation) |
||
Working temperature |
-25℃~50℃ |
||
Storage temperature |
-25℃~55℃ |
||
Altitude |
<2000m |
||
SMT
AOI Test
Plug-In Mounting
Wave Soldering
Assembling
Inspection
1. Bubble film packaging
2. Suitable boxes packaging
3. Carton packaging
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? is it free or extra ?
A: We provide free samples but freight collect.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
