Multi-protocol Support Ethernet/RS485/LoRa Communication Module Data Transmission Devices
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Elecnova Rs485 Communication Interface Iot Lora Wireless Transmission Module
-
Iot Lora Wireless Data Transmitter and Receiver Communication Module
-
Wireless Communication Module for Technological Networks Iot Gateway
-
Wireless Data Collector Transmission Communication GPRS Iot Gateway Module
-
S15 Wifi Gateway Wireless Communication Module Iot Device
-
Wireless Transmission rs 485 Communication Industrial Nb-iot Module
Product Description
Product Description
Product name：Multi-protocol support Ethernet/RS485/LoRa communication module data transmission devices
S15 gateway is a small gateway device that can collect multiple protocol bus devices and upload data
to cloud platform or local HMI display. A complete set of SmartHMI tools supports the configuration of the device that hangs down and monitors its data or status.
to cloud platform or local HMI display. A complete set of SmartHMI tools supports the configuration of the device that hangs down and monitors its data or status.
Advantage
■ Power supply：By itself
■ Launch frequency：100MW
■ Communication rate：Max 115200bps （default 9600bps）
■ Available meters：1-32 pcs power meters
■ Launch frequency：100MW
■ Communication rate：Max 115200bps （default 9600bps）
■ Available meters：1-32 pcs power meters
Technical Parameter
Hardware resource | ||||||
LED | 1Rd.running light ,2Rd. RS485 lights ,1Rd. Ethernet light ,1Rd. wireless light | |||||
RS485 | 2 Rd. | |||||
Ethernet | 2 Rd. | |||||
Extension | 2G、4G、NB-IoT、LORA、WIFI | |||||
Working environment conditions | ||||||
Working voltage | AC220V±20V 50Hz | |||||
Working temperature | -25~+70℃ | |||||
Storage temperature | -40~+85℃ | |||||
Relative humidity | ≤95%RH，noncondensing | |||||
Work altitude | ≤2000m | |||||
Protection level | IP20 | |||||
Insulation | Double insulation | |||||
Voltage withstand | 2.5kV AC/1min | |||||
Communication interface | ||||||
Interface | Two RJ45(100M), electrostatic 6 KV | |||||
Standards | IEEE 802.3 | |||||
Communications agreements | Modbus TCP/IP,Modbus RTU,MQTT etc. | |||||
Electromagnetic Compatibility | ||||||
Electrostatic discharge immunity | IEC 61000-4-2- III level | |||||
Radiofrequency electromagnetic radiation immunity | IEC 61000-4-3- III level | |||||
Immunity of electric fast transient pulse group | IEC 61000-4-4- IV level | |||||
Impact (surge) immunity | IEC 61000-4-5- IV level | |||||
Data flow

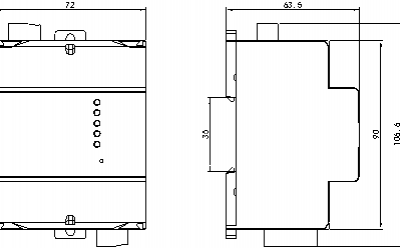

Dimensions and wiring diagrams
Applicable Products
Company Profile
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
