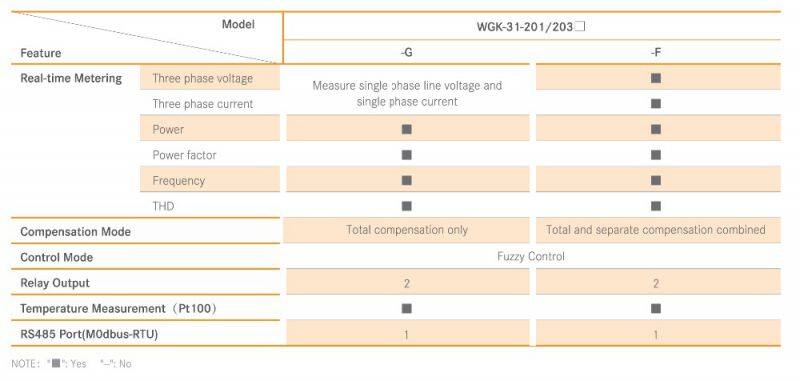

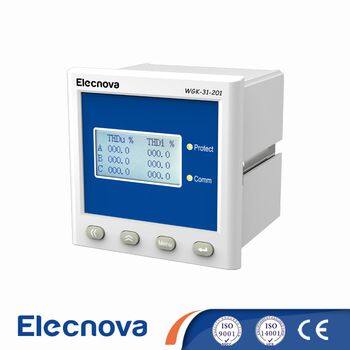

Items

Parameters

Signal input

Voltage

Range

Phase voltage 20~220V or line voltage 20~480V

Overload

Continuous:times  instantaneous:2 times

Power consumption

< 1VA

Current

Range

5A

Overload

Continuous:1.2 times; instantaneous:2 times

Power consumption

< 1VA

Frequency

45~65 Hz

Power supply

AC/DC 80~270V

Communication

Internal

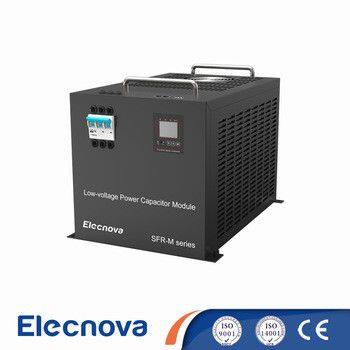

RJ45 interface, connect up to 32 SFR series modules

External

Support MODBUS-RTU protocol and DL/T 645-2007

Two relay outputs

Programmable alarm relay outputs

Capacity 5A/250VAC(5A/30VDC)

Accuracy

Current:0.5(20%~120%),1.0(5%~20%)

Voltage:0.5(50%~120%),1.0(5%~50%)

Power :1.0

Frequency:±0.1Hz

Harmonic measurement:B

Display mode

128*64 LCD, contrast can be set

Protection degree

Panel IP65, case IP30

Environment

Working temperature:-15~55ºC

Storage temperature:-20~75ºC

Safety

Insulation between signal, power supply, output terminal and case resistor > 100MΩ

Withstand voltage between signal input, power supply and output> AC 2kV

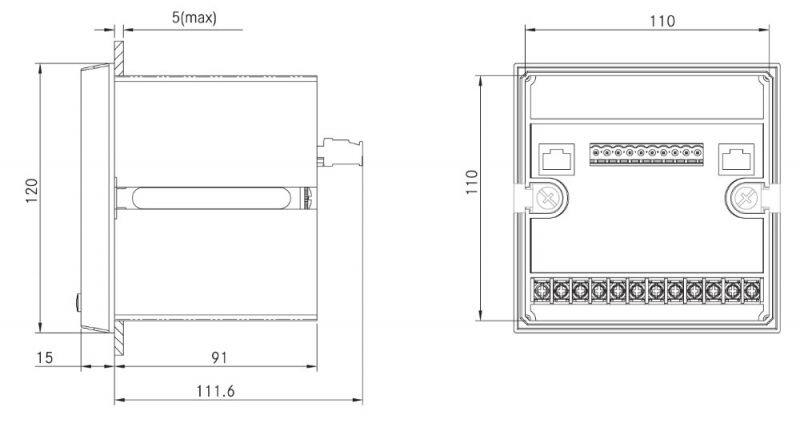

Outline dimension and weight

Outline dimension:120×120×114mm

Weight:0.6kg
