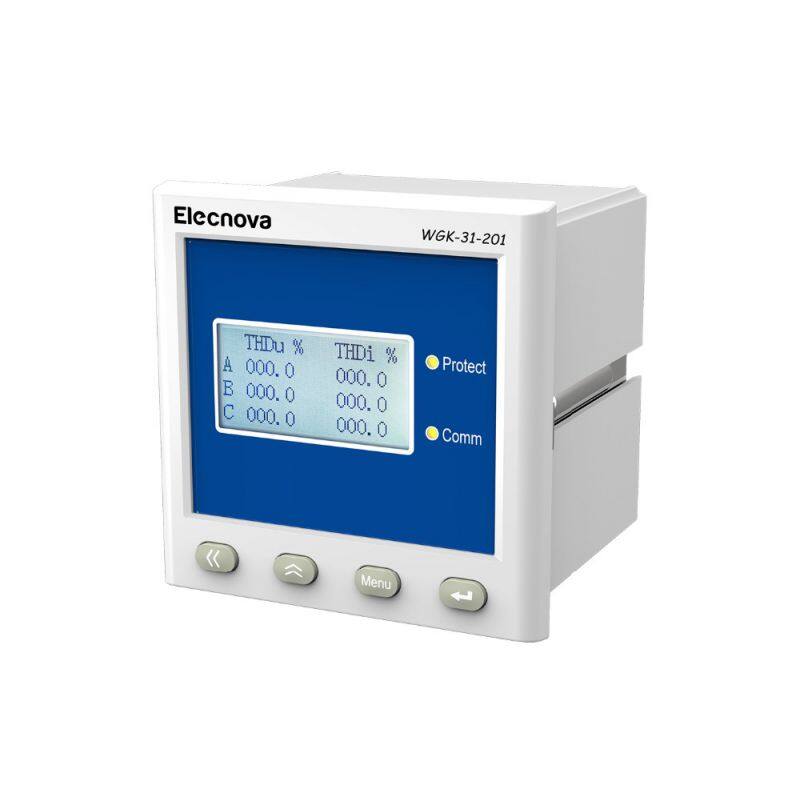

Elecnova WGK-31-201series Low Voltage Reactive Power Automatic Compensation Controller
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
WGK-31-201 Series Intelligent Lcd Separate Compensation and Reactive Compensation Controller With Modbus
-
SVG 100kvar Reactive Power Compensation Capacitor Bank for Industry
-
SFR-L 100kvar Power Capacitor Bank for Industry Price Reactive Power Compensation Bank
-
SFR-SVG Reactive Compensation Harmonic Suppression Power Capacitor
-
SFR-M 10/20/30 KVar Single Phase Separation Compensation Smart Capacitor Bank
-
Low Voltage Power Quality Improvement 50 Kvar Capacitor Bank
Product Description
Product Description
Product name | Elecnova WGK-31-201series low voltage reactive power automatic compensation controller |
Accuracy | Current:0.5(20%~120%),1.0(5%~20%) Voltage:0.5(50%~120%),1.0(5%~50%) Power :1.0 Frequency:±0.1Hz Harmonic measurement:B |
Display mode | 128*64 LCD, contrast can be set |
Control mode | Fuzzy control |
Relay output | 2 |
RS485 port(Modbus-RTU) | 1 |
Temperature measurement (pt 100) | Yes |
Outline dimension and weight | Outline dimension:120×120×114mm Weight:0.6kg |
*WGK-31-201-G is the total compensation controller, measure single phase line voltage and current
*WGK-31-201-F is the controller that combines total and separate compensation, measure three phase voltage and current
*Combined design of WGK-31-201 and SFR-L
*A WGK-31-201 can at most connects to 32 SFR-L series modules

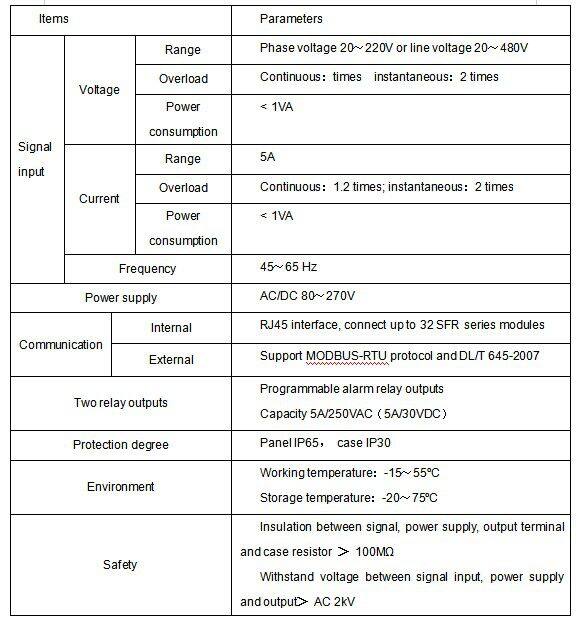

Tech specification

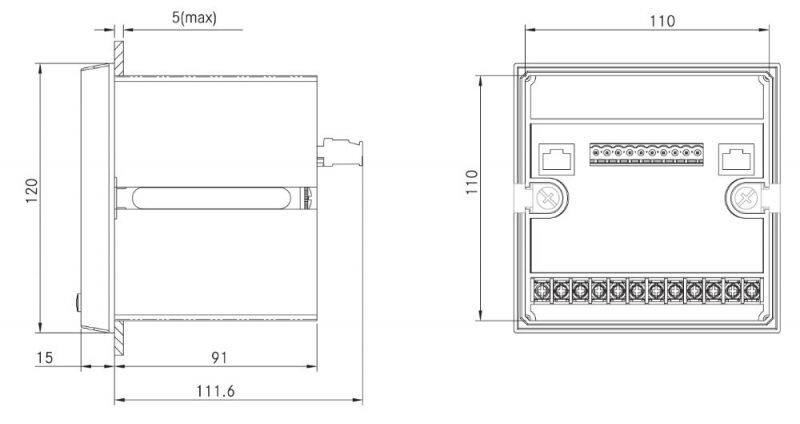

Size

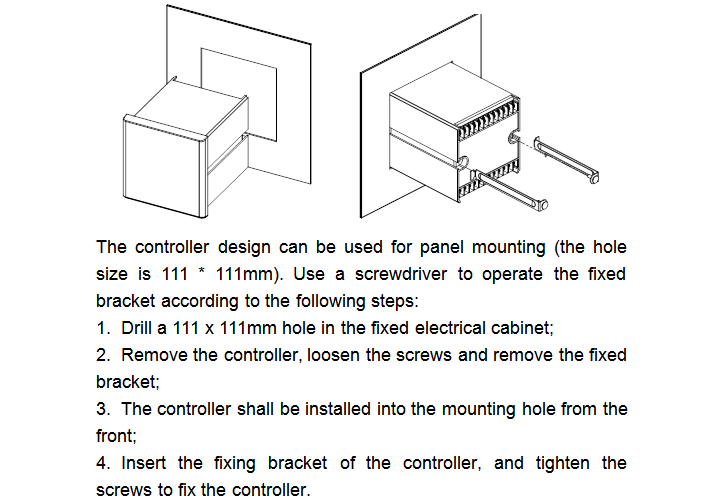

Installation
