EC4 GPRS Industrial Iot Wireless Communication Module
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
S15 2G/4G/NB-IoT/LORA/WIFI Gateway Module Iot Device
-
S15 4G Wireless Receiver Transmission Communication Gateway Module
-
S12 Modbus-RTU/TCP Multi-protocol Intelligent Monitoring Device Gateway
-
EC2 LoRa High Coverage 2400-19200 Bps Wireless Communication Module
-
S15-F RS485/ENET/WiFi Communication Interface Gateway Device
-
S12 RS485/Ethernet Wireless Transmission Module Other Communication
Product Description
Product Description
Product name：EC4 GPRS industrial iot wireless communication module
EC4-GPRS module (hereinafter referred to as EC4) is a wireless transmission module based on the GPRS way, using the existing mobile network can easily let your device achieve wireless connection with Internet. It has many advantages, such as wide network coverage, flexible and fast networking.
Advantage
■ power supply：by itself
■ Launch frequency：100MW
■ communication rate：Max 115200bps （default 9600bps）
■ Available meters：1-32 pcs power meters
■ Launch frequency：100MW
■ communication rate：Max 115200bps （default 9600bps）
■ Available meters：1-32 pcs power meters

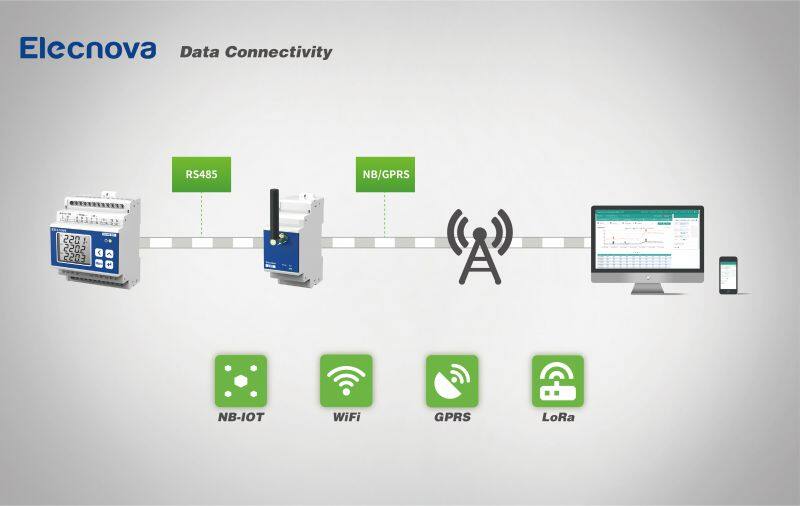

Data flow
Technical Parameter
Project | Parameters | ||
Wireless Interface | Frequency band | Support 4 frequency：GSM850MHz/900MHz/ 1800MHz/1900MHz | |
Network type | GPRS | ||
SIM card voltage | 3V、1.8V | ||
Antenna interface | 50Ω/SMA(female head) | ||
RS485 Interface | Communication | half duplex | |
Communication baud rate | 2400～19200bps,default 9600bps | ||
Data format | n81/n82/o81/e81,default n81 | ||
Main module | Model | PD194Z-E1X | |
Working environment | -25℃～70℃，≤93%RH | ||
Storage environment | -40℃～85℃，≤93%RH | ||

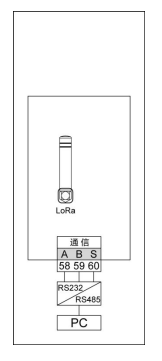

Dimensions and wiring diagrams
