Products Description

Product Name: Power factor enhancement compensation module low/medium voltage three phase capacitor bank

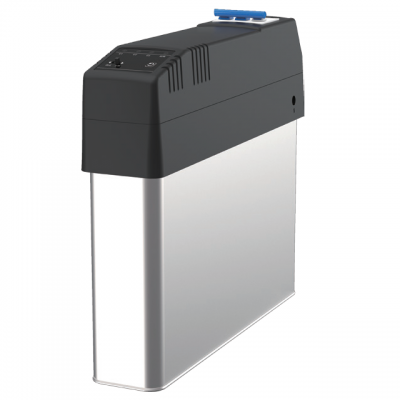

SFR-L series LV power capacitor module is designed for 0.4kV low voltage distribution network. It is used as a new generation of compensation module with functions of energy saving, reduction of line loss, power factor enhancement and improvement of power quality.


Features
* Improve efficiencies on power system
* Power factor correction
* Harmonic voltage
* System capacity release and reduced system losses
* Dimension: 392mm*110mm*363mm
(SFR-LXD-4020/450)

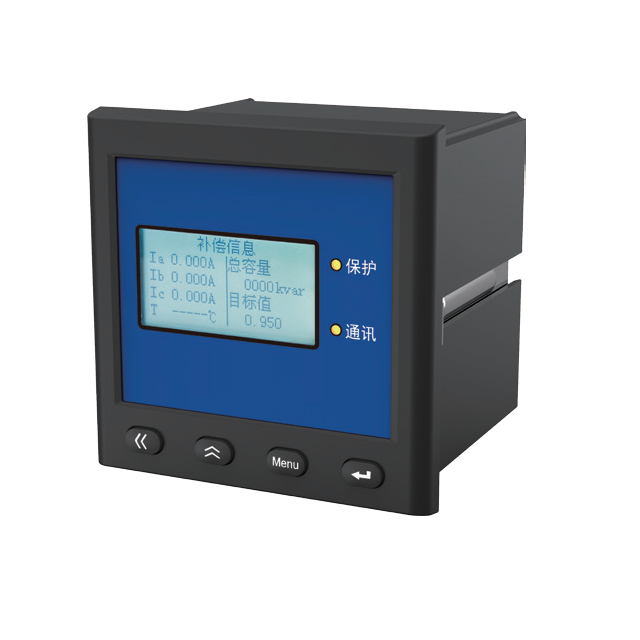

Matching controller
Compensation mode:
G indicates three-phase total compensation
F indicates combined compensation
Product Paramenters
Function
Specification
Measurement accuracy
Current
≤1.0%(5%~120%In)
Voltage
≤0.5%(80%~120%Un)
Power
≤2%
Power factor
≤0.01
Switching mode
Zero cross switching
Compensation operation
Working voltage
AC380V±20%, distortion rate ≤5%
Comsumption
≤5VA
Max working current
1.35 X In
Switching inrush current
≤3 X In
Host protection
Over voltage
430V(can be set)
Under voltage
300V(can be set)
Harmonic exceeding
0%~100%
Local protection
Over current
0A~100A
Over temperature
55 ℃
Unbalance
50%
Control setting
Control parameter
Target power factor, switching threshold, delay time etc.
Peripheral unit parameters
Current transformer ratio
Network interface
Pluggable data line, internal network protocol
Mechanical installation
Outline dimension
W-71.5mm L-370mm, height is a according to different capacity
Installation dimension
Distance of installation fixing holes:W-85mm*L-315MM
Weight
≤6.5kg
Environment temperature
Working temperature
-15℃~45℃
Storage temperature
-25℃~55℃
Altitude
≤2000m
Standard
GB/T15575-2008
Model Selection
Compensation mode
Capacity(kvar)
Model
Application field




Three-phase total compensation
40+40
SFR-LXD-4040/450








It is used in the fields where the power quality meets the national standard, the requirement for power quality is not very high
and no harmonic sensitive equipment. Phase separation compensation is used in the occation that three phase load imbalance greater
than 30%.
40+20
SFR-LXD-4020/450
30+30
SFR-LXD-3030/450
20+20
SFR-LXD-2020/450
20+10
SFR-LXD-2010/450
10+10
SFR-LXD-1010/450
10+5
SFR-LXD-1005/450


Phase separation compensation
30
SFR-LXD-30/250
20
SFR-LXD-20/250
10
SFR-LXD-10/250
5
SFR-LXD-05/250



Total and separation combined compensation
40+20
SFR-LXD-40G20F
40+15
SFR-LXD-40G15F
40+10
SFR-LXD-40G10F
30+20
SFR-LXD-30G20F
30+10
SFR-LXD-30G10F
20+20
SFR-LXD-20G20F
Company Profile

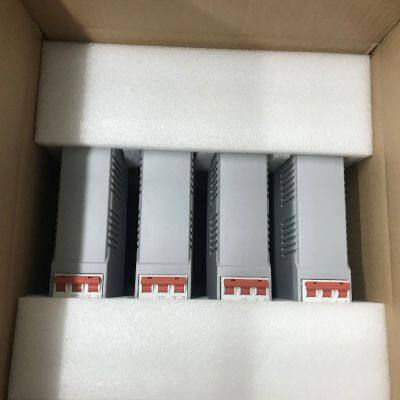

Packing & Delivery
