SVC power quality improvement compensation module power capacitor
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
SFR-L power quality improvement reactive power compensation capacitor bank
-
Power factor enhancement compensation module low/medium voltage three phase capacitor bank
-
Automatic compensation capacitor module power quality 50 kvar compensator
-
Multi-protocol support Ethernet/RS485/LoRa communication module data transmission devices
-
Elecnova Rs485 communication interface iot lora wireless transmission module
-
iot lora wireless data transmitter and receiver communication module
Product Description
Product Description
SVC LV power capacitor module is designed for 0.4kV voltage distribution network. It is used as a new generation of compenstation module with functions of energy saving, reduction of line loss, power factor enhancement and improvement of power quality.
Product Name | SVC power quality improvement compensation module power capacitor |
Type | Capacitor |
Switching mode | Zone-crow switching |
Standard | GB/T 15576-2008 |
Working temperature | -15C~45C |
Altitude | less than 2000m |
Thread | coarse, fine |
Certification | CE,UL,MID |
Function | Specification | |
Measurement accuracy | Current | ≤1.0%(5%~120%In) |
Voltage | ≤0.5%(80%~120%Un) | |
Power | ≤2% | |
Power factor | ≤±0.01 | |
Working voltage | AC 380V±20%, distortion rate≤5% | |
Consumption | ≤5VA | |
Max. working current | 1.35*In | |
Switching inrush current | ≤3*In | |
Host protection | Over voltage | 430V(can be set) |
Under voltage | 300V(can be set) | |
Harmonic exceeding | 0%~100%(can be set) | |
Local protection | Over current | 0~100A(can be set) |
Over temperature | 55°C(can be set) | |
Unbalance | 50%(can be set) |

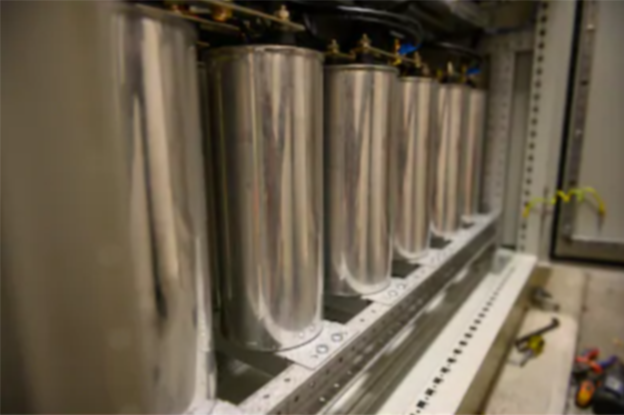

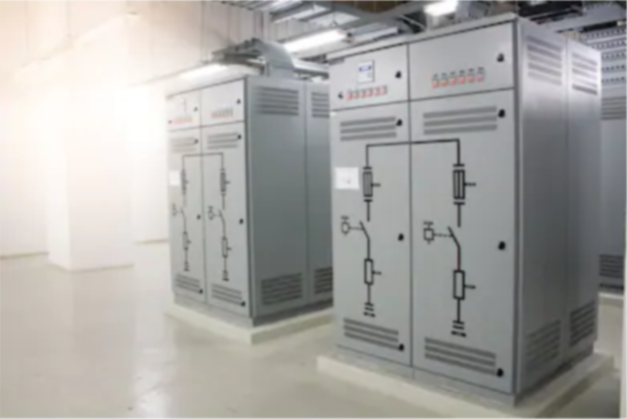

Products Show
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin City, Jiangsu Province.
Q: How long is your delivery time?
A: 7-10 working days for the production with stock.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we provide sample but it is not free.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% pail before delivery, order amount more than $3000%, 30% as deposite, 70% before delivery.
