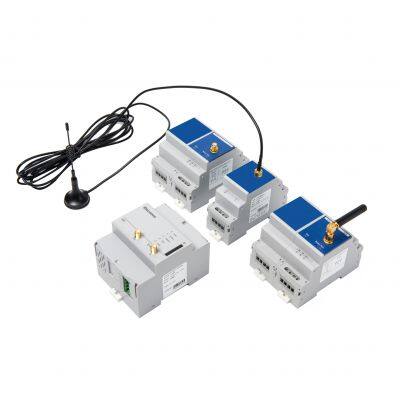

Elecnova Rs485 communication interface iot lora wireless transmission module
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
iot lora wireless data transmitter and receiver communication module
-
wireless communication module for technological networks iot gateway
-
wireless data collector transmission communication GPRS iot gateway module
-
S15 wifi gateway wireless communication module iot device
-
Wireless transmission rs 485 communication industrial nb-iot module
-
Wireless data transmission communication GPRS iot equipment module
Product Description
Product Description
Product name：Elecnova Rs485 communication interface iot lora wireless transmission module
PD194Z-C10 wireless transparent transmission module, hereinafter referred to as C10 module, is based on
LoRa wireless modulation method. C10 module supports 433MHz/470MHz frequency spectrum. Its maximum transmission distance is 5kms via LoRa spread spectrum technology in open area. C10 module has strong anti-interference ability and high sensitivity.
LoRa wireless modulation method. C10 module supports 433MHz/470MHz frequency spectrum. Its maximum transmission distance is 5kms via LoRa spread spectrum technology in open area. C10 module has strong anti-interference ability and high sensitivity.
Advantage
■ power supply：by itself
■ Launch frequency：100MW
■ communication rate：Max 115200bps （default 9600bps）
■ Available meters：1-32 pcs power meters
■ Launch frequency：100MW
■ communication rate：Max 115200bps （default 9600bps）
■ Available meters：1-32 pcs power meters

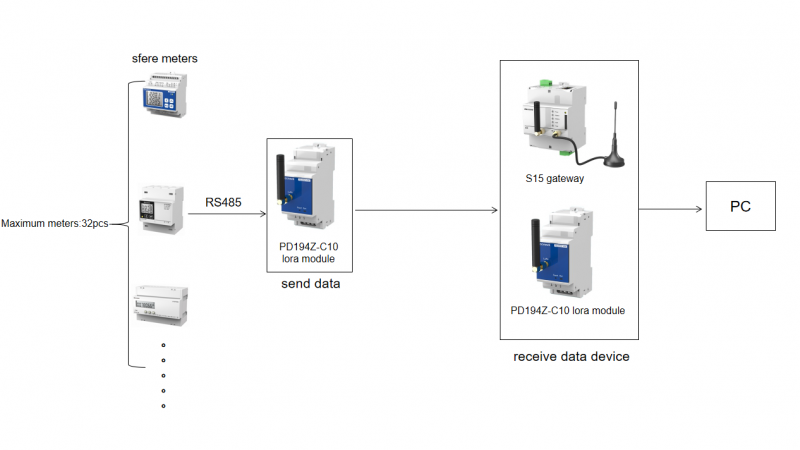

Data flow
Product Paramenters
Item | Parameters | ||
Wireless interface | T/R frequency | 470MHz～510MHz，0.1MHz | |
Modulation method | LORA | ||
Transmitting power | +17.6dBm/100mW | ||
Receiving sensitivity | -139dBm@0.81Kbps | ||
RS485 interface | Communication method | Semi duplex | |
Baud rate | 2400～19200bps, defaulted as 9600bps | ||
Data format | n81/n82/o81/e81, defaulted as n81 | ||
Power supply | Voltage range | PD194Z-C10: AC/DC 80～270V | |
PD194Z-C11: DC24V | |||
Consumption | <2VA | ||
Working environment | -25℃～70℃，≤93%RH | ||
Storage environment | -40℃～85℃，≤93%RH | ||
Dimensions and wiring diagrams
Applicable Products
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
