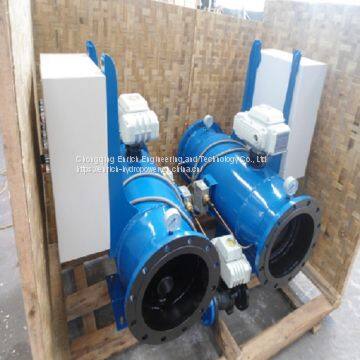

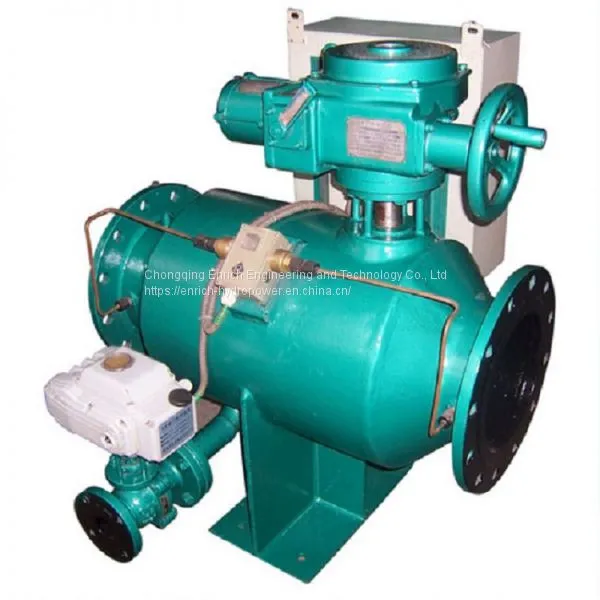

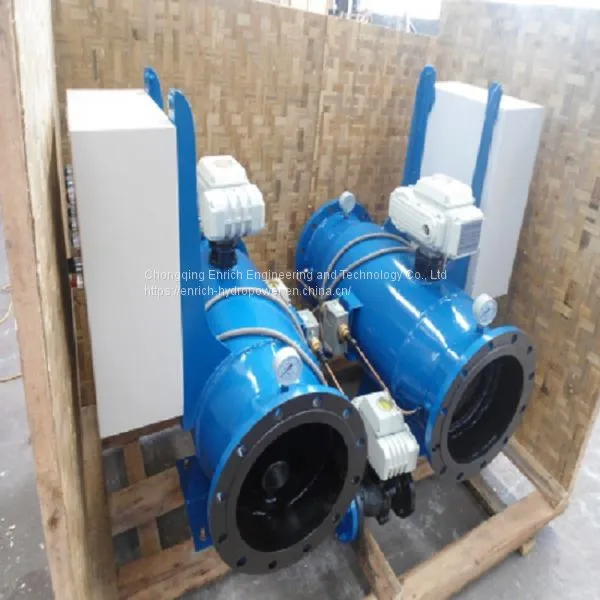

HKW-P completely automatic horizontal water filter
HKW-P completely automatic horizontal water filter is the fourth generation of new automatic water filter developed on the basis of researching domestic and foreign automatic water filters. Because the filter mesh adopts wedge-shaped arrangement, the inlet, outlet and the filter mesh are at the same horizontal position, it is more convenient for the impurities to be directly collected into the sewage discharge device to be more completely discharged. It overcomes the disadvantage that the vertical water filter is relatively difficult to backwash due to sediment accumulation or scattered dirt.
Except having the advantages of vertical water filter, its sewage outlet is directly connected to the filter mesh. Therefore, under the same impurity and dirt conditions, the drain outlet diameter and water consumption are relatively smaller, and the effective area of the drain is more bigger.
It uses PLC programmable controller as the core of the fully automatic control, achieving automatic backwashing (straight flushing) and sewage. Manually rotating the flow guide valve and the drain valve when without power supply, manual cleaning and draining can be realized.
Technical parameters
Nominal pressure: 0.6~1.6Mpa
Filtration accuracy: ≤ 5mm or according to working conditions
Timing setting range: 0~24 hours or better
Pressure loss: 0.01 ~ 0.03Mpa
Automatic backwashing time: 5min or according to working conditions
Power supply: AC380V/50Hz 3-phase 4-wire
Technical parameters table
| Model& Para. | flow |
inlet& outlet diameter |
Drain diameter |
Drain valve/guide valve power |
| m 3 /h | mm | mm | W | |
| HKW-2P | 23 | 50 | 25 | 25 |
| HKW-3P | 56 | 80 | 40 | 25 |
| HKW-4P | 84 | 100 | 40 | 25 |
| HKW-5P | 120 | 125 | 40 | 30 |
| HKW-6P | 190 | 150 | 40 | 30 |
| HKW-8P | 340 | 200 | 50 | 30 |
| HKW-10P | 760 | 250 | 50 | 30 |
| HKW-12P | 1040 | 300 | 65 | 30 |
| HKW-14P | 1350 | 350 | 65 | 50 |
| HKW-16P | 1360 | 400 | 65 | 90 |
| HKW-18P | 1718 | 450 | 100 | 90 |
| HKW-20P | 2125 | 500 | 100 | 90 |

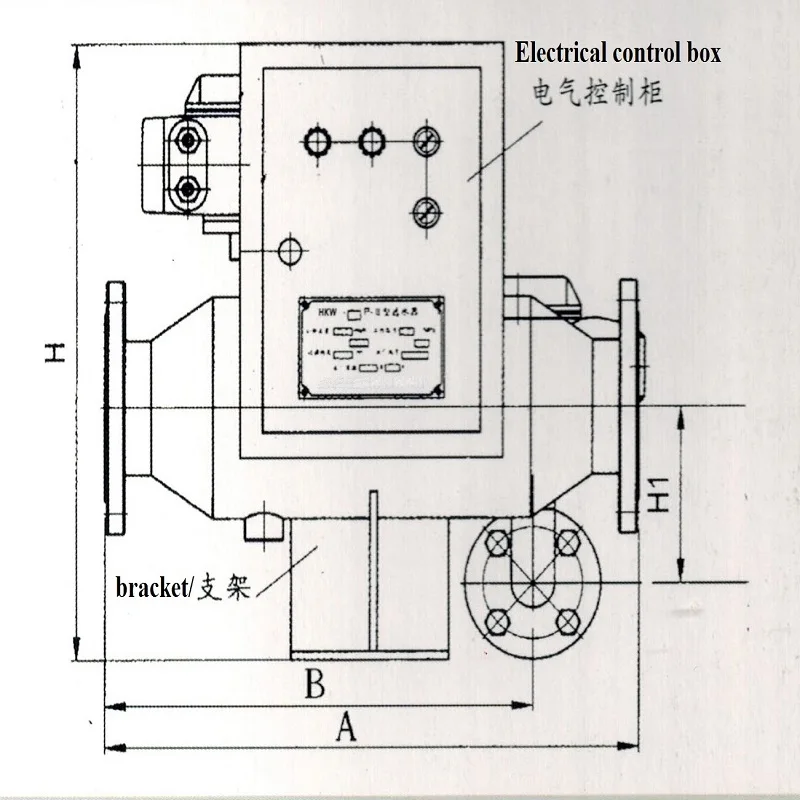

Installation dimensions drawing
Outlook and installation dimensions
| Model& dimensions | A | B | H | H1 |
| HKW-2P | 620 | 503 | 630 | 176 |
| HKW-3P | 630 | 513 | 630 | 176 |
| HKW-4P | 630 | 515 | 630 | 176 |
| HKW-5P | 650 | 530 | 640 | 180 |
| HKW-6P | 700 | 560 | 656 | 218 |
| HKW-8P | 760 | 625 | 740 | 250 |
| HKW-10P | 860 | 720 | 760 | 280 |
| HKW-12P | 1200 | 980 | 800 | 360 |
| HKW-14P | 1300 | 1060 | 850 | 380 |
| HKW-16P | 1460 | 1200 | 918 | 415 |
| HKW-18P | 1620 | 1260 | 1120 | 498 |
| HKW-20P | 1780 | 1395 | 1310 | 536 |
HRG-P
HRG -8/10PⅡ HRG -32PⅡ…
KRG-14PⅡ KRG-20PⅡ…
HRG-2/2.5PⅡ HRG -3/4PⅡ HRG -5/6PⅡ HRG -8/10PⅡ HRG -12PⅡ HRG -14PⅡ HRG -16PⅡ
HRG -18PⅡ HRG -20PⅡ HRG -24PⅡ HRG -32PⅡ HRG -40PⅡ...
KRG-2/2.5PⅡ KRG-3/4PⅡ KRG-5PⅡ KRG-6PⅡ KRG-8PⅡ KRG-10PⅡ KRG-12PⅡ
KRG-14PⅡ KRG-16PⅡ KRG-18PⅡ KRG-20PⅡ KRG-24PⅡ...
