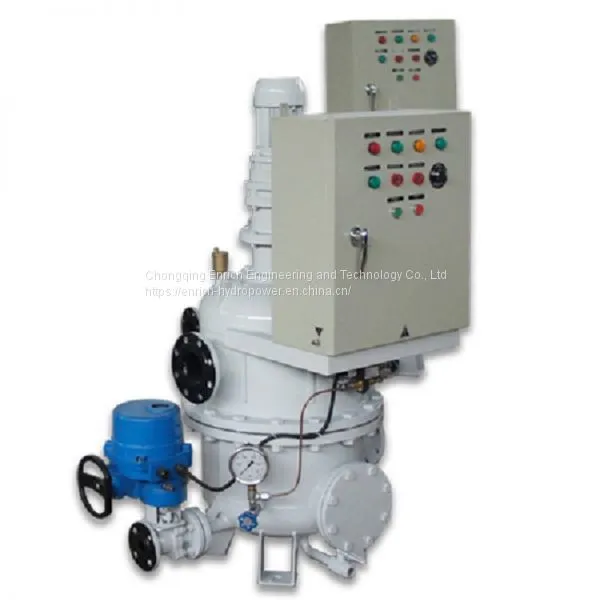

DLS/ZLSH completely automatic water filter
ZLSG-H/ BD/ BGD/ G(GⅡ)D...
LD-25/50/65/LD-200/400…
ZLSH/G-Ⅱ ZLSH/G-Ⅲ...
ZLSQ ZLSH-II...
This water filter is mainly used for coarse filtration and fine filtration of power station auxiliary system cooling water, industrial circulating water, fire water, domestic sewage, domestic water, washing liquid and the similar suspensions. It has automatic filtration, automatic sewage, automatic cleaning, which does not affect the normal water supply when cleaning and discharging.
It is equipped with automatic alarms such as high differential pressure, drain valve over torque and reducer failure. The electric control adopts PLC programming controller as the core program control, which can realize unattended operation.
Pre-selection
DLS completely automatic water filter is suitable for water with many sediment and a small amount of floating materials.
ZLSH completely automatic water filter is suitable for water with a lot of sediment and a certain quantity of floating materials such as domestic garbage.
Water in and out: above inlet& below outlet, below inlet& above outlet.
Technical parameters
Nominal pressure: 0.6, 1.0, 1.6Mpa
Pressure loss: 0.01-0.03Mpa
Automatic backwash time: 5 min or according to working conditions
Filtration accuracy: 0.5-5mm or according to working conditions
Power supply: AC380V/50Hz 3-phase 4-wire
Timing setting range: 0-24 hours or better
Working pressure: ≤0.6Mpa, ≤1.0Mpa, ≤1.6Mpa
Differential pressure setting: 0.02-0.1Mpa
|
Model& Para. |
Flow m³/h |
Diameter mm |
Drain diameter mm |
Reducer |
Drain valve power KW |
|
|
Power KW |
Model | |||||
| DLS-40/50 | 14/22 | 40/50 | 25 | 0.37 | XLED32 | 0.05 |
| DLS-80/100 | 54/86 | 80/100 | 40/50 | 0.37 | XLED32 | 0.05 |
| DLS-125/150 | 120/190 | 125/150 | 65/65 | 0.55 | XLED42 | 0.09 |
| DLS-200 | 340 | 200 | 80 | 0.55 | XLED42 | 0.09 |
| DLS-250 | 530 | 250 | 80 | 0.75 | XLED53 | 0.09 |
| DLS-300 | 760 | 300 | 100 | 0.75 | XLED53 | 0.09 |
| DLS-350 | 1040 | 350 | 100 | 1.1 | XLED63 | 0.09 |
| DLS-400 | 1360 | 400 | 125 | 1.1 | XLED63 | 0.09 |
| DLS-500 | 2125 | 500 | 150 | 1.5 | XLED74 | 0.18 |
| DLS-600 | 3050 | 600 | 200 | 1.5 | XLED74 | 0.25 |
| DLS-800 | 5420 | 800 | 200 | 2.2 | XLED84 | 0.25 |

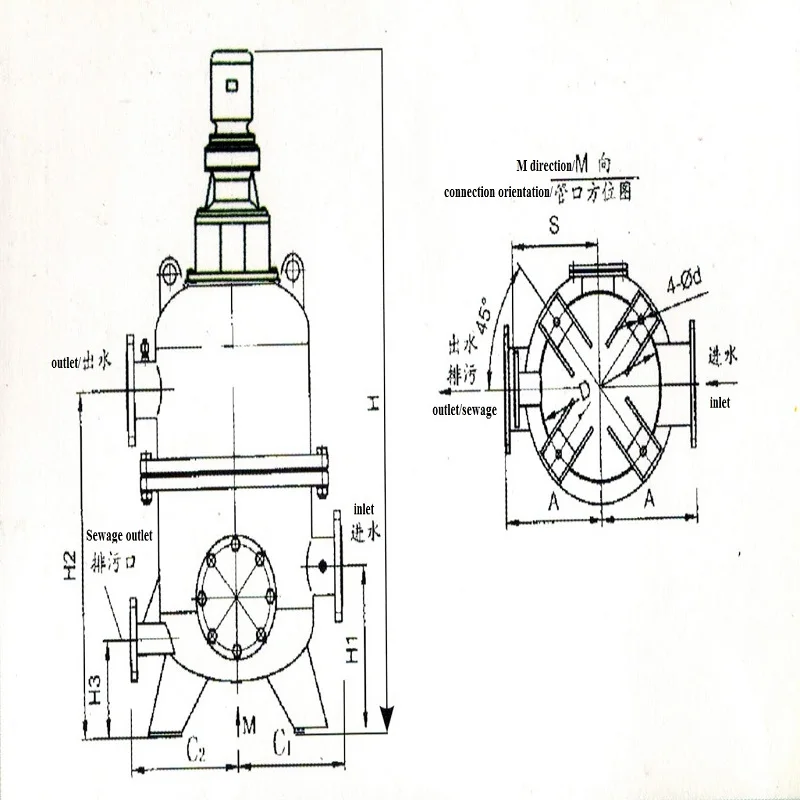

Installation dimensions drawing
Outlook and installation dimensions
|
Model& dimensions |
H | H1 | H2 | H3 | C1 | C2 |
Foundation installation hole |
|
| D | n-d | |||||||
| DLS/ZLSH-50 | 1490 | 310 | 640 | 200 | 320 | 320 | 410 | 4-M20 |
| DLS/ZLSH-80 | 1520 | 330 | 660 | 200 | 320 | 320 | 430 | |
| DLS/ZLSH-100 | 1520 | 330 | 660 | 200 | 350 | 350 | 450 | |
| DLS/ZLSH-125 | 1550 | 380 | 780 | 260 | 380 | 380 | 500 | |
| DLS/ZLSH-150 | 1550 | 380 | 780 | 260 | 400 | 380 | 510 | |
| DLS/ZLSH-200 | 1660 | 380 | 800 | 260 | 420 | 400 | 510 | |
| DLS/ZLSH-250 | 1900 | 480 | 960 | 320 | 480 | 480 | 620 | 4-M24 |
| DLS/ZLSH-300 | 2100 | 555 | 1075 | 380 | 500 | 500 | 700 | |
| DLS/ZLSH-350 | 2220 | 565 | 1125 | 390 | 530 | 530 | 760 | |
| DLS/ZLSH-400 | 2400 | 615 | 1280 | 430 | 560 | 560 | 800 | |
| DLS/ZLSH-500 | 2780 | 700 | 1495 | 485 | 660 | 660 | 1000 | |
| DLS/ZLSH-600 | 3000 | 780 | 1620 | 530 | 780 | 780 | 1050 | |
| DLS/ZLSH-800 | 3400 | 850 | 1940 | 590 | 950 | 950 | 1250 | |
