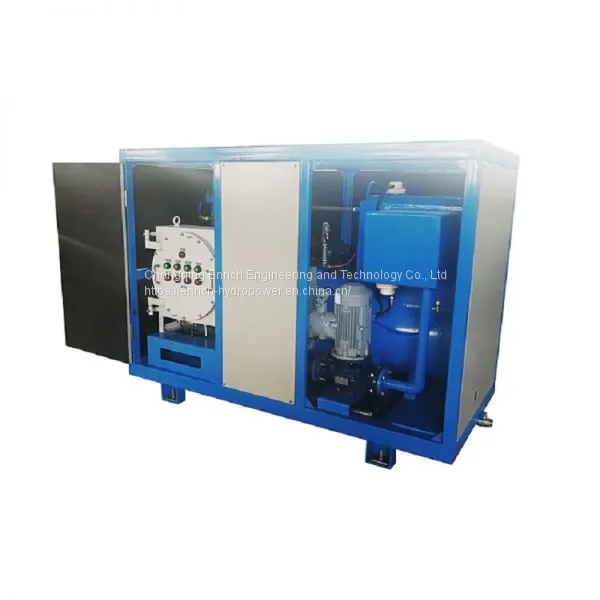

Floating oil absorber
Float oil collector

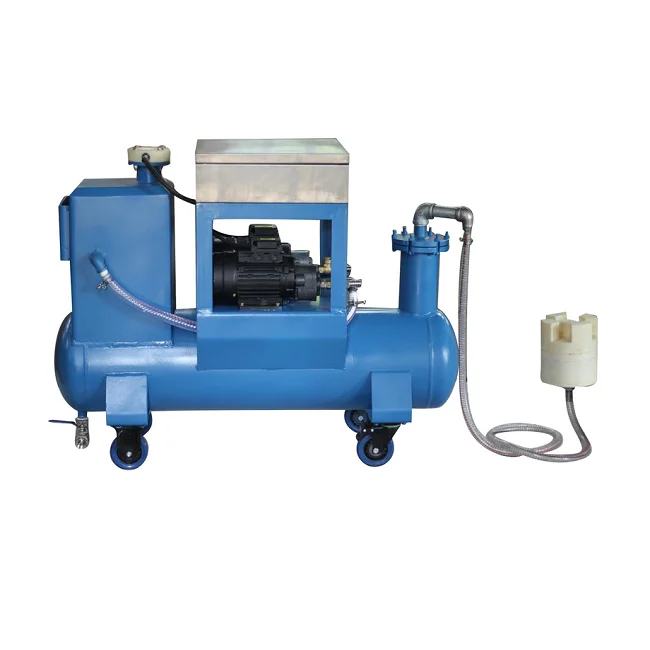

Weir type floating oil absorber
Weir-type floating oil absorber is mainly composed of three parts: main machine, float oil skimmer, and piping joint. According to different working conditions, a trash rack can be added. The size and outlet diameter can be customized according to user working conditions.
The height-adjustable weir opening is placed at 1-75px below the liquid surface (determined according to the thickness of the oil layer). Due to the flow generated by the pump, a certain height difference will form between the liquid level inside and outside the weir. (Floating liquid higher than the bottom of the notch)So that the lighter specific gravity liquid such as floating oil is sucked in from the weir opening.
Working principle

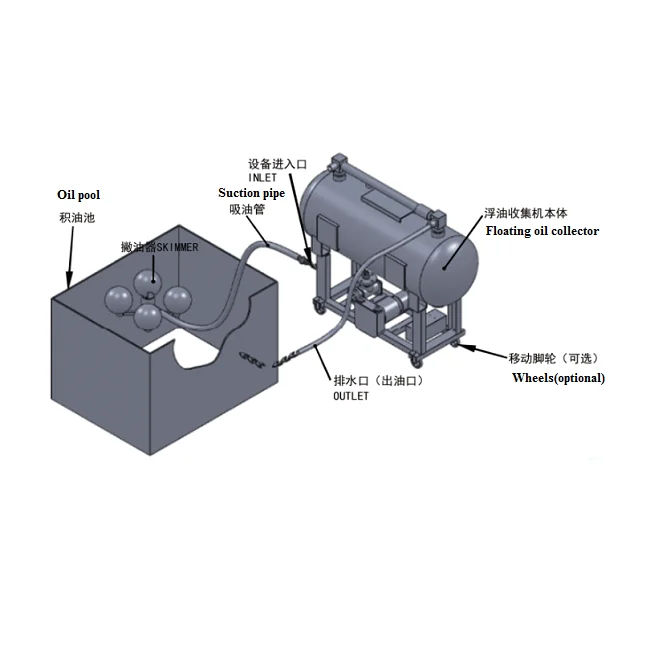

Work process
The float-type stainless steel oil skimmer placed on the liquid surface of the oil pool sucks the floating oil (oil-water mixture with air) into the separator tank of the collector, and the water and oil are secondary separated in the tank. The oversized inhaled dirt is trapped by the filter cartridge. After the tank is full, the water in the separation tank is sensed by the liquid level detection device and drained back to the pool via the drain outlet. The oil is left in the tank until a large amount of oil flows out of the drainage, which indicates that the oil in the tank is full. The oil can be drained into the spare empty barrel through the drain outlet.

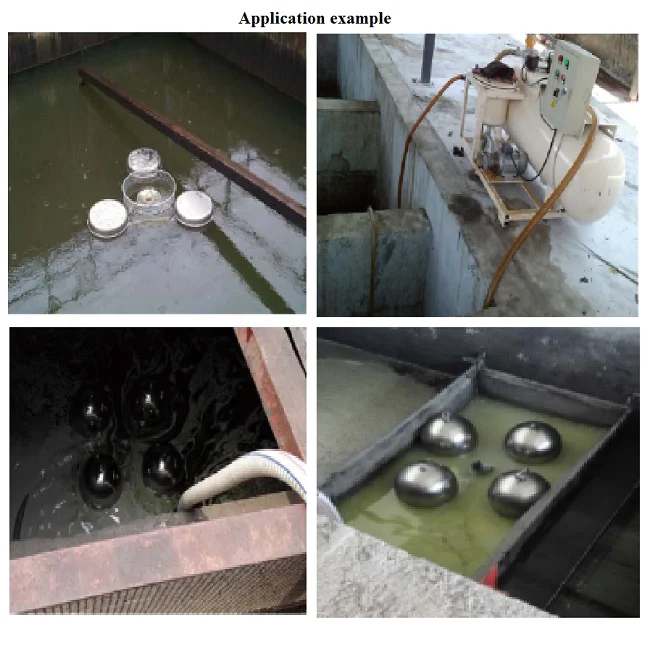

Scope of application
Land oil-water separator
Main feature
Flexible placement, it can be used to quickly clean up oil layers with low viscosity on the water surface
Technical Parameters
Item |
Name& model |
||||
GFYJ-25-250L-EC |
GFYJ-25-250L-AC |
GBFYJ-25-250L-ECH |
YFYJ-5-100L-EC |
YFYJ-5-100L-AC |
|
Fixed electric control standard type |
Fixed air control standard type |
Fixed electronically controlled explosion-proof high suction type |

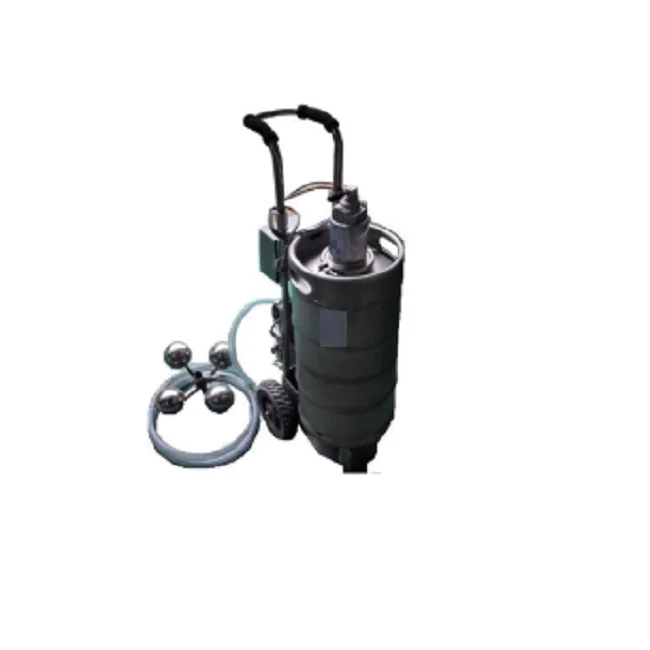

Mobile electric control standard type |
Mobile air control standard type |
|
Oil absorbing flow |
20-50L/Min |
20-50L/Min |
20-50L/Min |
5-10L/Min |
5-10L/Min |
Effective volume of oil storage tank |
250L |
250L |
250L |
100L |
100L |
Voltage |
380V/50HZ three-phase 1.5-2A |
380V/50HZ three-phase 1.5-2A |
220V/50HZ single phase 0.5-1A |
||
|
Electric control (air control) |
1.5KW |
0.3Mpa |
1.5KW |
200W |
0.3Mpa |
Standard suction |
3m |
3m |
8m |
2m |
2m |
High suction type |
≤8m |
≤8m |
≤8m |
≤8m |
≤8m |
Oil inlet diameter |
G1 |
G1 |
G1 |
G1/2 |
G1/2 |
Water outlet diameter |
G1.5 |
G1.5 |
G1.5 |
G1 |
G1 |
Note: If the suction exceeds 3 meters, please order according to the high suction model. For explosion-proof places, please indicate the explosion-proof grade and order according to the explosion-proof type. Special suction can be customized. There are two types of mobile type: horizontal and vertical. Please choose according to different working conditions.

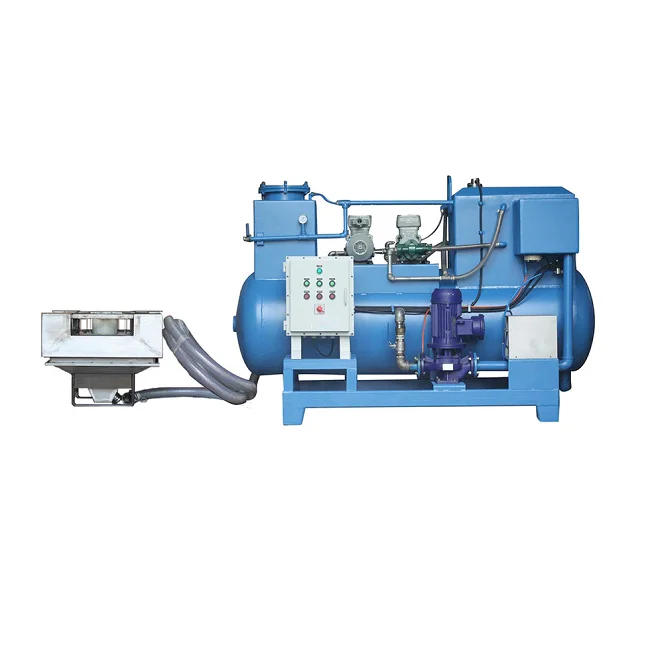

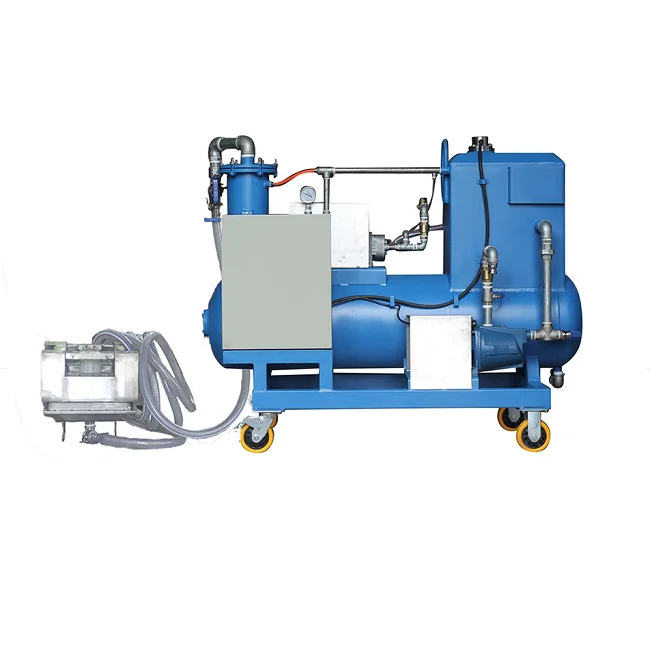

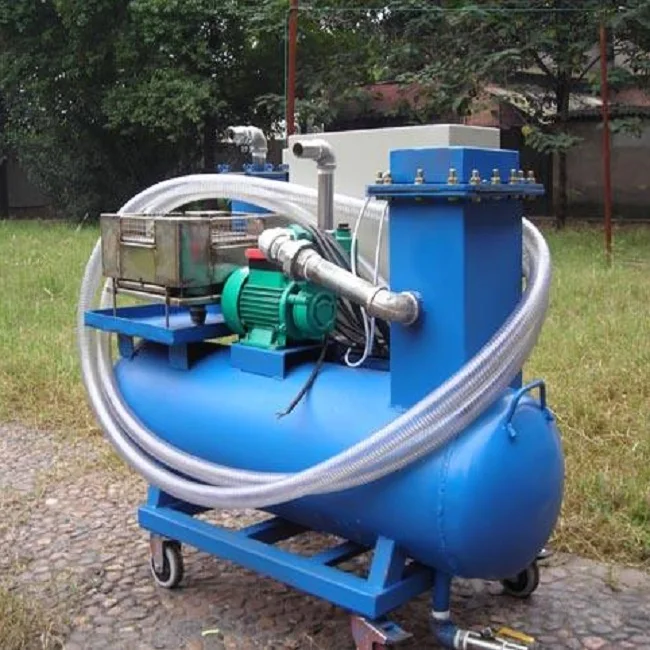

Semi-floating type dynamic balance overflow type floating oil collector
Push the machine to the poolside and put the collector into the water and run. This model is suitable for large area pools in factories and enterprises. It has the characteristics of small size, low energy consumption, maximum collection efficiency, direct output of renewable oil, no secondary pollution, optional mobile use, continuous automatic operation, etc.
FYJ-1
Performance parameters
Maximum oil output capacity:180L/h
Applicable water surface area:≤7m2
Allowable height difference from water surface to installation surface: ≤1 m
Power load: 220V, 0.1kw
Suitable oil types: petrol, diesel, turbine oil, gear oil, hydraulic oil, quenching oil and other lower viscosity oils or chemical solvents, also can be used for coal tar collection
Applicable working conditions: Used for the supporting of washing/cleaning machines and acid washing/pickling production lines, and the collection of floating oil for small pools and sinks of industrial and mining enterprises
FYJ-2
Performance parameters
Maximum oil output capacity:600L/h
Applicable water surface area:≤150m2
Allowable height difference from water surface to installation surface:≤4 m
Power load: 380(or 220)V,1.3kw
Applicable oil type: collection of various oil with medium or low viscosity or chemical solvents
Applicable working conditions: floating oil collecting for small and medium pools of industrial and mining enterprises such as iron and steel, chemical, textile, water, power, food and medicine, printing, machinery manufacturing, oil storage and transportation, etc.
FYJ-3
Performance parameters
Maximum floating oil collection speed: 500-2000Kg/h
Applicable water area: 3-1000m2
Allowed maximum floating oil viscosity: about kinematic viscosity 6000 mm2/s
Applicable water depth: ›900 mm
Allowable water temperature: 1-70℃
Outlet oil water content: 0 (excluding emulsified water content)
Impurity particles in outlet oil: not more than 0.5 mm
Operation mode: continuous automatic operation according to the floating oil accumulation conditions
Allowable continuous running time: no limit, but the filter needs to be cleaned in time
Power load: 220V, 2-4KW
This model has wide adaptability, and can also make corresponding adaptive design according to different working conditions.
FYJ-4
Performance parameters
Maximum oil output capacity: 1000L/h
Applicable water surface area: ≤300m2
Allowable height difference from water surface to installation surface: ≤4 m
Power load: 380(or 220)V,1.3kw
Applicable oil type: Collection of medium or medium to high viscosity oils or chemical solvents
Applicable working conditions: Collection of floating oil for medium-sized and large-sized pools of industrial and mining enterprises such as petroleum, steel, chemical, textile, water, power, food and medicine, printing, machinery manufacturing, oil storage and transportation, etc.
FYJ-5
Performance parameters
Maximum oil output capacity:2000L/h
Applicable water surface area:≤1500m2
Allowable height difference from water surface to installation surface:≤4 m
Power load: 380(or 220)V,6kw
Applicable oil type: Collection of various oils with medium or high viscosity (including crude oil) or chemical solvents
Main application conditions: floating oil collection for medium and large pools of industrial and mining enterprises such as petroleum, chemical, water treatment, oil storage and transportation

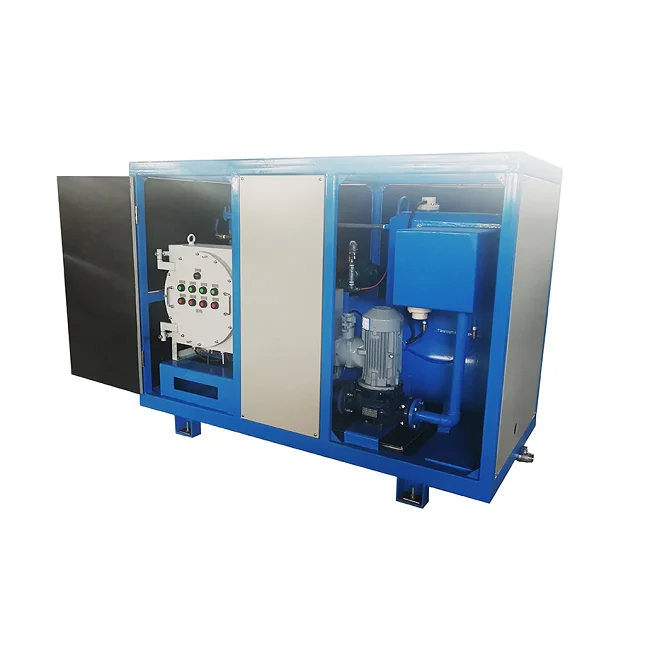

Explosion-proof floating oil collector
Explosion-proof models are used in oil extraction, refining, synthetic oil, oil storage and transportation, chemical solvents and other working conditions with the possibility of flammability and explosion, etc.). The electrical components of the complete set of equipment (including water pumps, oil pumps, sensors, electrical control boxes, line contacts, etc.)are all designed and constructed in accordance with the explosion-proof grade of EXDIIBT4 or EXDIICT4 to meet explosion-proof operation under open-air/outdoor conditions.
Ultra-high suction head type floating oil collector
The ultra-high suction head type floating oil collector adopts high vacuum equipment as the suction device on the basis of ordinary models, so that the floating oil collector can realize floating oil collection in deep wells or deep pools under the maximum conditions allowed by the vacuum equipment. The height difference between the equipment installation level and the water surface can be greater than 7.5 meters, and it can run for a long time. The equipment does not need to be installed, and it can complete the collection of floating oil in deep wells or deep pools with one click, which greatly reduces the various operation difficulties for users.
Complete stainless steel floating oil collector
Complete stainless steel models are used in highly corrosive acid and alkali solutions. All components of the entire equipment (including separation tanks, water pumps, oil pumps, pipelines, sensors, racks, etc.) are made of 304 or 316L materials. The equipment meets long-term use under strong corrosive conditions.
Material selection: 304, 316L, etc.
