New Design Zxj Zj Series High Performance Large Capacity Two Stage Rotary Vane Roots Primary Secondary Booster Power Transformer Oil Purifier Drying Vacuum Pumping Pump Unit System With Door With Great Reputation for Transformer Electrical Appliances
US$ 500 - 1600
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Enrich
Place of Origin:
China
Model Number:
ZXJ
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
15 days
Related Products
-
Zj Vacuum Oiler Oiling Machine Vacuum Drying Equipment for Oil-filled Transformer Current Transformer On-load Switches and Conduits Transformer Oil Insulating Oil Vacuum Drying Machine Vacuum Oiling MachineUS$ 600 - 1000MOQ: 1 Set
-
2CY KCB High Temperature Resistance Cast Iron Stainless Steel Hydraulic Rotary Gear Oil Pump for Crude Oil Diesel Oil Heavy Fuel Sludge Oil Lubrication Lobe Oil Pump Internal External Gear Pump Fuel Oil Hot Oil Pump Hydraulic Pump Electric Pressure PuUS$ 100 - 1000MOQ: 1 Piece
-
TYB Horizontal Vertical Stainless Steel Cast Iron Magnetic Driven Rotary High Suction Range Hydraulic Propeller Propulsion Gear Oil Transfer Pump for Conveying High Viscosity Crude Diesel Heavy Oil Lubrication Lubricating Oil Fuel Oil Mechanical Oil PetUS$ 100 - 1000MOQ: 1 Piece
-
WG Miniature Portable Oil Purifier Filter Purification Filtration Machine for Lubrication Lubricating Oil Transformer Oil Insulation Oil Turbine OilUS$ 288 - 488MOQ: 1 Set
-
Ly BASY Mobile Type Small Portable Filter Filtration Purification Industry Plate Pressure Plate and Frame Filter Press Oil Purifier Treatment Separator Machine Unit Gear Oil Cleaning Device by Filter Paper for Purifying Used Transformer Insulation Oil LubUS$ 800 - 3000MOQ: 1 Set
Brand Name
Enrich
Place of Origin
China
Model Number
ZXJ
After-sales Service Provided
Overseas service center available

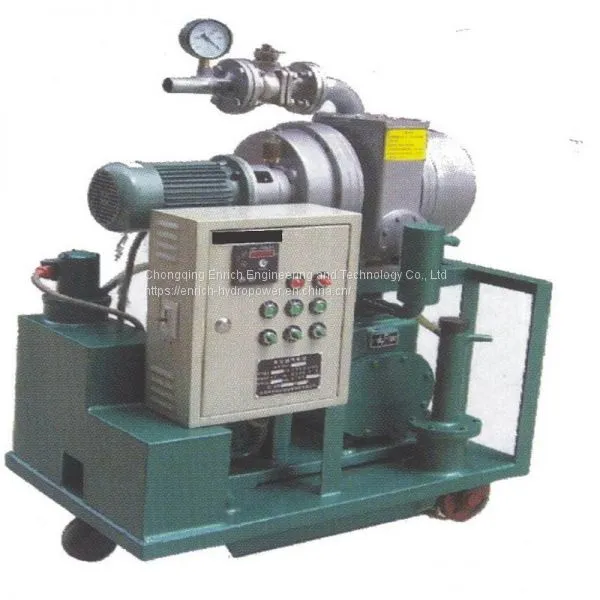

ZXJ vacuum pumping unit
ZXJ vacuum pumping unit adopts a two-stage rotary vane vacuum pump as the primary pump, and Roots vacuum pump as the secondary booster pump, which can have a big vacuum pumping rate under high vacuum conditions. The unit, equipped with microcomputer digital vacuum gauge, can be set to automatically control the start of the secondary pump according to the working conditions. The unit can obtain a vacuum of 133Pa or less, and the unit itself can reach the ultimate vacuum of 7Pa or less.
The vacuum pumping unit is a basic equipment for extracting the gas in a specific closed container to obtain a certain degree of vacuum. It can be used for vacuuming for electrical appliances, metallurgy, petroleum, industrial and mining, chemical enterprises, etc. However, it is not suitable for extracting gases of too high oxygen content, explosive, toxic, chemically acting on vacuum pump oil or corrosive to ferrous metals; it is also not suitable for compressors and pumps.
Technical parameters
Working vacuum≤133Pa Ultimate vacuum≤7Pa Power supplyAC380V 50Hz
Para. model |
pumping L/s |
primary |
secondary |
cooling |
weight Kg |
dimensions mm |
ZXJ-30 |
30 |
2X-4 |
ZJY-30 |
air cooling |
360 |
850x600x1000 |
ZXJ-70 |
70 |
2X-8 |
ZJY-70 |
480 |
1000x600x1100 |
|
ZXJ-150 |
150 |
2X-15 |
ZJY-150 |
water cooling |
660 |
1050x650x1350 |
ZXJ-300 |
300 |
2X-30 |
ZJY-300 |
980 |
1400x800x1650 |
|
ZXJ-600 |
600 |
2X-70 |
ZJY-600 |
1350 |
1400x900x1800 |
