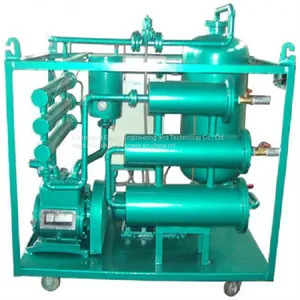

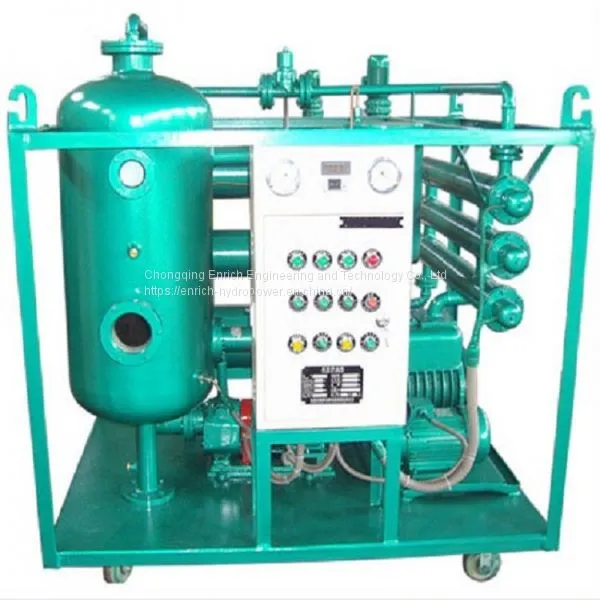

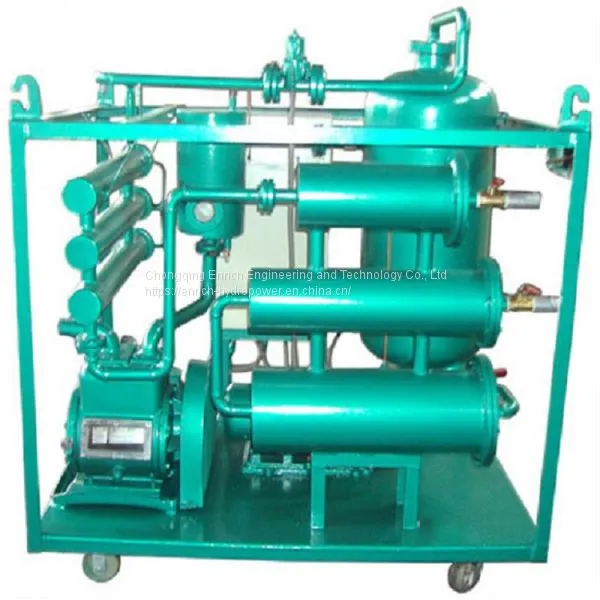

ZJB Single stage vacuum insulating oil purifier
Vacuum transformer oil purifier
ZJB type single stage vacuum insulating oil purifier is mainly used for the purification treatment of insulating oil for power transmission and transformation equipment below 220KV. It uses advanced "vacuum membrane separation method" and configures the most advanced multi-stage excellent and deep filtration device. The water, particulate impurities and metal particles in the insulating oil can be efficiently removed under the extremely low vacuum pressure.
The purifier adopts high-precision honeycomb filter element as pre-precision filter, and uses the washable stainless steel damper filter element as the post-precision filter to dampen the secondary pollutants of the fiber that may be detached from the pre-stage filter element, which overcomes the weak point that it’s easy to drop the wire when traditional purifier only using the fiber filter element or easy to drop dust when using use the sintered filter element.
Technical characteristics
1. The "vacuum film stretching and expansion technology" can break the oil emulsified structure quickly and completely, and remove the water under vacuum condition.
2. Due to its special structure and unique composite technology, the magnetic filter device has strong adsorption capacity and large filter area, and it is easier to clean the dirt filtered on the filter element.
3. The new WLX filter element of dirt retention accuracy 5 um, has strong decontamination capability, and can be repeatedly cleaned for long-term use, reduce the running costs.
Performance
Water content: ≤50PPM Gas content: ≤12% Dielectric strength: ≥30KV
After several times of purification by this purifier, the following indicators can be achieved:
Residual water: ≤7PPM Dielectric strength: ≥60KV
Residual gas: ≤0.3% Nominal filtration accuracy: ≤5um
Technical parameters table
parameter |
ZJB0.6KY |
ZJB1KY |
ZJB2KY |
ZJB3KY |
ZJB6KY |
ZJB9KY |
ZJB12KY |
|
nominal flow |
L/h |
600 |
1000 |
2000 |
3000 |
6000 |
9000 |
12000 |
heating power |
Kw |
6 |
10 |
15 |
24 |
48 |
72 |
96 |
total power |
Kw |
7.6 |
11.6 |
16.5 |
26.5 |
51.8 |
78.96 |
105.13 |
power supply |
380V50HZ 3-phase 4-wire power supply |
|||||||
working pressure |
Mpa |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
working vacuum |
pa |
≤666 |
≤666 |
≤666 |
≤666 |
≤666 |
≤666 |
≤666 |
ultimate vacuum |
pa |
≤90 |
≤90 |
≤90 |
≤90 |
≤90 |
≤90 |
≤90 |
working oil temperature |
℃ |
45~65 |
45~65 |
45~65 |
45~65 |
45~65 |
45~65 |
45~65 |
working noise |
DB(A) |
73 |
75 |
76 |
78 |
82 |
84 |
85 |
|
inlet& outlet diameter |
mm |
20 |
25 |
32 |
40 |
|||
weight |
kg |
430 |
480 |
650 |
690 |
1140 |
1820 |
2200 |
dimensions |
mm |
1270 |
1270 |
1290 |
1340 |
1600 |
1730 |
1980 |
740 |
740 |
830 |
830 |
1060 |
1210 |
1360 |
||
1380 |
1430 |
1530 |
1550 |
1680 |
1860 |
2150 |
||
Application area: power plant, power station, power company, substation, power transmission& distribution, railway, petrochemical, metallurgy…
Insulation oil: transformer oil, circuit breaker oil, capacitor oil, cable oil, high voltage switch oil…
ZY vacuum transformer oil purifier
ZY-10 ZY-20 ZY-30 ZY-50 ZY-100 ZY-150 ZY-200 ZY-300
ZYA-10 ZYA-20 ZYA-30 ZYA-50 ZYA-100 ZYA-150 ZYA-200 ZYA-300
ZYB-20 ZYB-30 ZYB-50 ZYB-100 ZYB-150 ZYB-200
JY-20 JY-30 JY-50 JY-100 JY-150 JY-200
JY-300 JY-500
