Home > Industrial Equipment & Components > Filtration Equipment & Parts > Oil Filter > Ly BASY Mobile Type Small Portable Filter Filtration Purification Industry Plate Pressure Plate and Frame Filter Press Oil Purifier Treatment Separator Machine Unit Gear Oil Cleaning Device by Filter Paper for Purifying Used Transformer Insulation Oil Lub

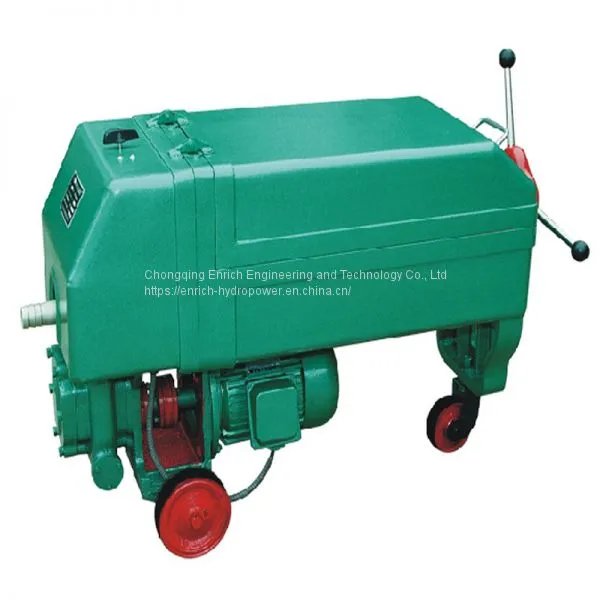

Ly BASY Mobile Type Small Portable Filter Filtration Purification Industry Plate Pressure Plate and Frame Filter Press Oil Purifier Treatment Separator Machine Unit Gear Oil Cleaning Device by Filter Paper for Purifying Used Transformer Insulation Oil Lub
US$ 800 - 3000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Enrich
Place of Origin:
China
Model Number:
LY(BASY)
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
15 days
Related Products
-
JYG High Precision Three-stage Oil Purifier Filter Filtration Purification Cleaning Oil Treatment Machine Unit for Used Engine Oil Lubricating Oil Hydraulic Oil Waste Oil Recycle for Power Station Power Plant Substation Transformer AreaUS$ 288 - 488MOQ: 1 Set -
Krz Kryz Series Mobile Multi Stage Anti-Acid Anti-Dissolution Anti-Explosion Style Non-Heating Phosphate Ester Fire-Resistant Hydraulic Oil Purifier Oil Filtration Machine System Oil Cleaning Machine for Eh Oil System Recycling Ehc Fluid System Fyrquel-US$ 2000 - 8000MOQ: 1 Set
-
Zja Zyd Mobile Trailer Double Stages Two-Stage Two Chambers Electric High Vacuum Transformer Oil Insulating Oil Purifier Purification Recovery Filtering Filtration Machine System for Purifying Drying or OilingUS$ 4000 - 6000MOQ: 1 Set
-
Zjb Zy Portable Precision Fully Automatic Electrical Single Stage Insulating Oil Transformer Oil De-Acidification Device Vacuum Electrostatic Oil Purifier Filtration Cleaning Purification Regeneration Recondition Plant Degas Dewater Remove The ImpuritiesUS$ 1500 - 10000MOQ: 1 Set
-
ZJCQ TYA TY Coalescer High Vacuum Hydraulic Turbine Oil Lube Oil Gear Oil Purifier Purification Filter Machine System for Used Turbine Oil Filtration Treatment Dehydration Recycle Extend Oil Life for Hydro Gas Steam TurbinesUS$ 1500 - 5000MOQ: 1 Set
Brand Name
Enrich
Place of Origin
China
Model Number
LY(BASY)
Type
Press Filter
After-sales Service Provided
Overseas service center available
Warranty
1 year
Condition
New
Structure
Other

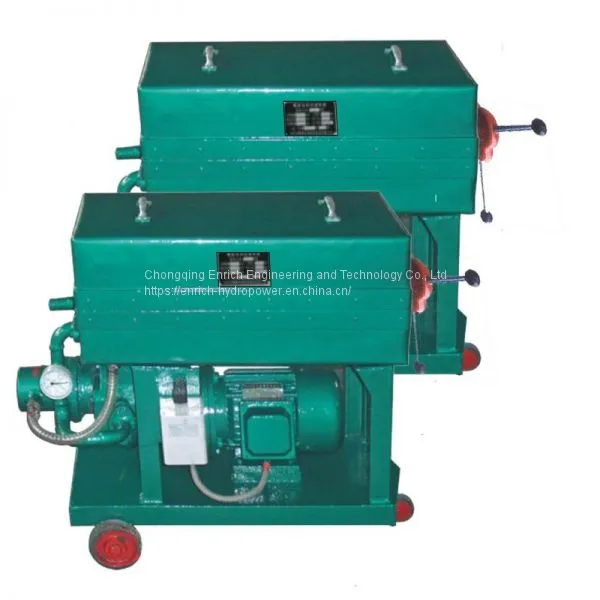

LY(BASY) Plate-press oil purifier
LY(BASY) Plate-press oil purifier is specially designed for power plants, power stations , industrial and mining enterprises substation (room) lubricating oil storage, tractor station, petroleum, chemical, metallurgy, national defense and other industries to filter the water and impurities in transformer oil, turbine oil, aviation hydraulic oil and other liquid oils, which are especially suitable for the pre-stages treatment of oil with poor quality, such as various transformer oil, turbine oil and other lubricating oil.
Technical parameters table
parameter |
LY-50 |
LY-100 |
LY-120 |
LY-150 |
LY-200 |
||||||
oil filtering capacity |
L/min |
50 |
100 |
120 |
150 |
200 |
|||||
working pressure |
Mpa |
≤0.35 |
≤0.35 |
≤0.35 |
≤0.35 |
≤0.35 |
|||||
filtration area |
m2 |
0.39 |
1.3 |
1.54 |
1.89 |
2.5 |
|||||
plate dimensions |
mm |
180×180 |
280×280 |
||||||||
motor power |
Kw |
1.1 |
2.2 |
2.2 |
3 |
4 |
|||||
pressing way |
manual |
||||||||||
power supply |
380V50HZ 3-phase 4-wire power supply |
||||||||||
inlet& outlet diameter |
mm |
25 |
32 |
32 |
32 |
40 |
|||||
filter paper dimension |
mm |
200×200 |
296×296 |
||||||||
weight |
Kg |
126 |
320 |
360 |
410 |
460 |
|||||
dimensions |
mm |
800 |
900 |
1050 |
1140 |
1290 |
|||||
370 |
540 |
540 |
540 |
540 |
|||||||
620 |
740 |
740 |
740 |
740 |
|||||||
