2CY KCB High Temperature Resistance Cast Iron Stainless Steel Hydraulic Rotary Gear Oil Pump for Crude Oil Diesel Oil Heavy Fuel Sludge Oil Lubrication Lobe Oil Pump Internal External Gear Pump Fuel Oil Hot Oil Pump Hydraulic Pump Electric Pressure Pu
US$ 100 - 1000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Enrich Engineering
Place of Origin:
China
Model Number:
2CY, KCB
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
15 days
Related Products
-
TYB Horizontal Vertical Stainless Steel Cast Iron Magnetic Driven Rotary High Suction Range Hydraulic Propeller Propulsion Gear Oil Transfer Pump for Conveying High Viscosity Crude Diesel Heavy Oil Lubrication Lubricating Oil Fuel Oil Mechanical Oil PetUS$ 100 - 1000MOQ: 1 Piece -
WG Miniature Portable Oil Purifier Filter Purification Filtration Machine for Lubrication Lubricating Oil Transformer Oil Insulation Oil Turbine OilUS$ 288 - 488MOQ: 1 Set
-
Ly BASY Mobile Type Small Portable Filter Filtration Purification Industry Plate Pressure Plate and Frame Filter Press Oil Purifier Treatment Separator Machine Unit Gear Oil Cleaning Device by Filter Paper for Purifying Used Transformer Insulation Oil LubUS$ 800 - 3000MOQ: 1 Set
-
JYG High Precision Three-stage Oil Purifier Filter Filtration Purification Cleaning Oil Treatment Machine Unit for Used Engine Oil Lubricating Oil Hydraulic Oil Waste Oil Recycle for Power Station Power Plant Substation Transformer AreaUS$ 288 - 488MOQ: 1 Set
-
Krz Kryz Series Mobile Multi Stage Anti-Acid Anti-Dissolution Anti-Explosion Style Non-Heating Phosphate Ester Fire-Resistant Hydraulic Oil Purifier Oil Filtration Machine System Oil Cleaning Machine for Eh Oil System Recycling Ehc Fluid System Fyrquel-US$ 2000 - 8000MOQ: 1 Set
Brand Name
Enrich Engineering
Place of Origin
China
Model Number
2CY, KCB
After-sales Service Provided
Overseas service center available
Condition
New

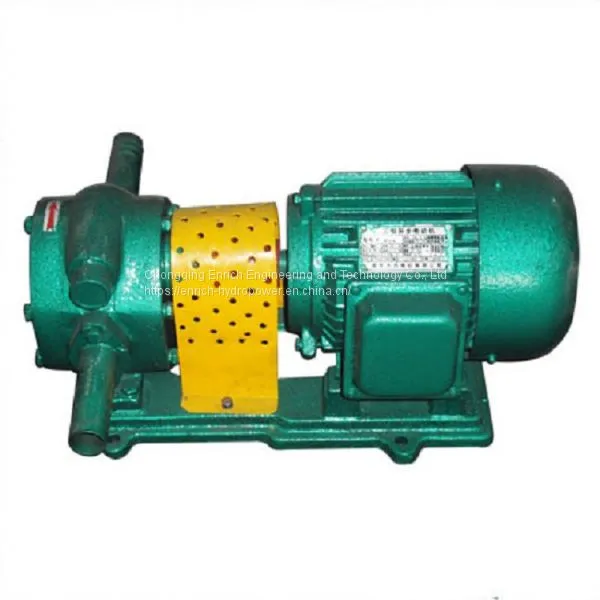

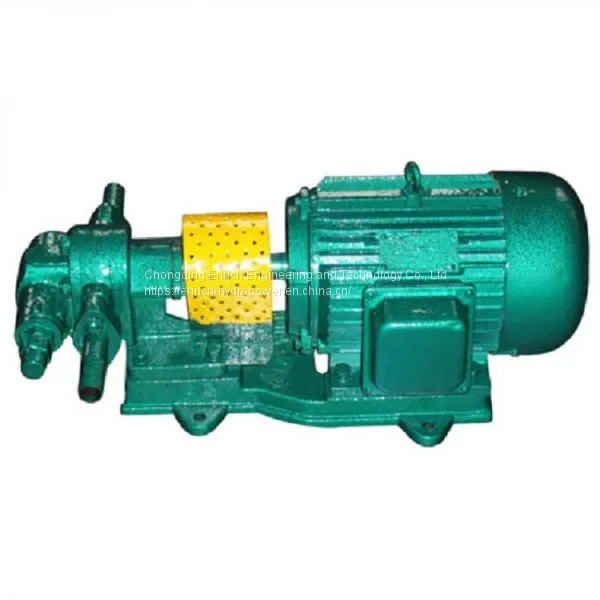

2CY/KCB gear oil pump
2CY (also known as KCB) gear oil pump is suitable for conveying various lubricating oil or other similar liquids without causticity, with a kinematic viscosity below 120cst and temperature below 100°C.
This pump is not suitable for conveying liquids containing solid particles and fibers, non-lubricating and highly volatile, of low flash point. Such as gasoline, benzene, etc.
Model description
2CY-1.1/14.5-2
2---gear quantity
C---external gear meshing
Y--- convey oil
1.1--rated flow m³/h
1.45--rated outlet pressure Mpa
2--- design no.
Technical parameters table
model |
inlet& outlet diameter |
flow |
outlet pressure |
suction |
motor power |
||
mm |
m3/h |
L/min |
Mpa |
m |
KW |
||
2CY-1.1/14.5 |
KCB-18.3 |
20 |
1.1 |
18.3 |
1.45 |
5 |
1.5 |
2CY-2/14.5 |
KCB-33.3 |
20 |
2 |
33.3 |
1.45 |
5 |
2.2 |
2CY-3.3/3.3 |
KCB-55 |
25 |
3.3 |
55 |
0.33 |
5 |
1.5 |
2CY-4.5/3.3 |
KCB-75 |
25 |
4.5 |
75 |
0.33 |
4 |
1.5 |
2CY-5/3.3 |
KCB-83 |
25 |
5 |
83 |
0.33 |
4 |
2.2 |
2CY-6/3.3 |
KCB-100 |
32 |
6 |
100 |
0.33 |
4 |
2.2 |
2CY-7.2/3.3 |
KCB-120 |
32 |
7.2 |
120 |
0.33 |
3 |
3 |
2CY-8/3.3 |
KCB-133.3 |
32 |
8 |
133.3 |
0.33 |
4.5 |
3 |
2CY-12/3.6 |
KCB-200 |
40 |
12 |
200 |
0.36 |
4 |
4 |
2CY-18/3.6 |
KCB-300 |
50 |
18 |
300 |
0.36 |
3 |
5.5 |
2CY-38/2.8 |
KCB-633 |
90 |
38 |
633 |
0.28 |
3 |
11 |
2CY-60/2.8 |
KCB-1000 |
100 |
60 |
1000 |
0.28 |
2.5 |
22 |
