Home > Products > Industrial water filter and oil purifier > Zj Vacuum Oiler Oiling Machine Vacuum Drying Equipment for oil-filled transformer current transformer on-load switches and conduits Transformer Oil insulating oil Vacuum Drying Machine Vacuum Oiling Machine
Zj Vacuum Oiler Oiling Machine Vacuum Drying Equipment for oil-filled transformer current transformer on-load switches and conduits Transformer Oil insulating oil Vacuum Drying Machine Vacuum Oiling Machine
USD $600 - $1000
/ Set
1 Set(Min.Order)
- 5000 Set / Sets per Month
- Chongqing
- T/T
- 15 days
You May Like
-
2CY KCB High Temperature Resistance Cast Iron Stainless Steel Hydraulic Rotary Gear Oil Pump for Crude Oil Diesel Oil Heavy Fuel Sludge Oil Lubrication Lobe Oil Pump Internal External Gear Pump Fuel Oil Hot Oil Pump Hydraulic Pump Electric Pressure Pu
-
TYB Horizontal Vertical Stainless Steel Cast Iron Magnetic Driven Rotary high suction range hydraulic Propeller Propulsion Gear Oil Transfer Pump for Conveying High Viscosity Crude Diesel Heavy Oil Lubrication Lubricating Oil Fuel Oil Mechanical Oil Pet
-
WG Miniature Portable Oil Purifier Filter Purification Filtration Machine for Lubrication Lubricating Oil Transformer oil Insulation oil Turbine oil
-
Ly BASY Mobile Type Small Portable Filter Filtration Purification Industry Plate Pressure Plate and Frame Filter Press Oil Purifier Treatment Separator Machine Unit Gear Oil Cleaning Device by Filter Paper for Purifying Used Transformer Insulation Oil Lub
-
JYG High Precision three-stage Oil Purifier Filter Filtration Purification Cleaning Oil Treatment Machine Unit for used engine oil lubricating oil hydraulic oil waste oil recycle for power station power plant substation transformer area
-
Krz Kryz Series Mobile Multi Stage Anti-Acid Anti-Dissolution Anti-Explosion Style Non-Heating Phosphate Ester Fire-Resistant Hydraulic Oil Purifier Oil Filtration Machine System Oil Cleaning Machine for Eh Oil System Recycling Ehc Fluid System Fyrquel-
Product Details
| Brand Name | Enrich | Place of Origin | China | |
| Model Number | ZJ | After-sales Service Provided | Overseas service center available |
Product Description

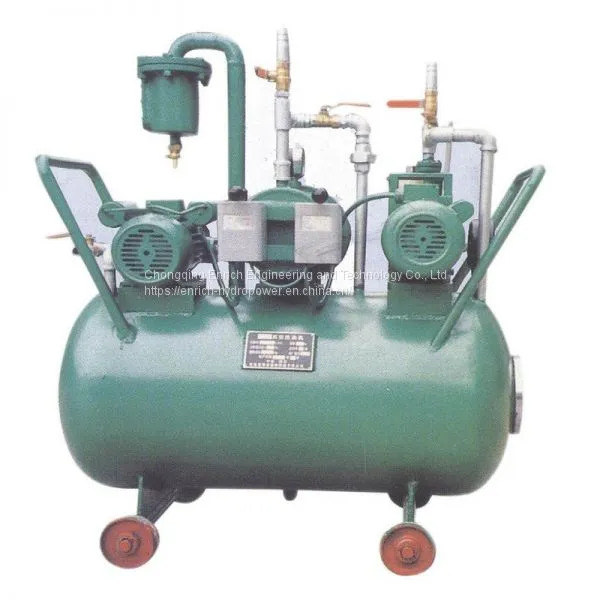

ZJ vacuum oiler
ZJ vacuum pump oiler
ZJ vacuum oiling machine
ZJ vacuum oiler is mainly used for filling insulating oil to oil-filled transformers and current transformers. It also can be used for oil filling operations for transformers, on-load switches and conduits below 500KV.
The major feature of ZJ vacuum oiler is: firstly pump the upper part of the metal expander of transformer to a high vacuum (-0.07Mpa) level with a vacuum pump, that is, after remove the residual gas in the oil-filled equipment, especially that between the coils, the insulating oil can be automatically filled through oil tube or oiled by oil pump to the normal oil level required by the equipment. After the oil filling is completed, the oil-filled equipment will be vacuumed again to ensure the original insulation performance of the equipment. This oiler is safe, convenient and the oil is not polluted.
Main technical parameters
Vacuum pump pumping rate: 1 L/S
Vacuum pump vacuum: ≤-0.07Mpa
Oil pump head: 30m
Oil pump flow: 5-20L/min
