Semi Automatic Powder Filling Machine

Semi Automatic Powder Filling Machine photo-1

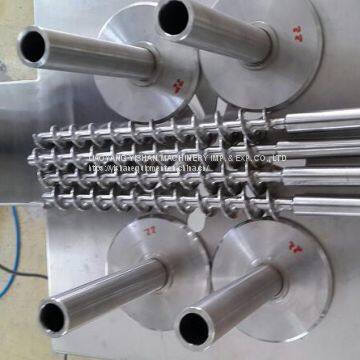

Semi Automatic Powder Filling Machine photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
yishan
Place of Origin:
China
Model Number:
ZK-B3A
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
30 days
Brand Name yishan
Place of Origin China
Model Number ZK-B3A
Weight 1-3000g (Max.5000g, according to customer’s need)
Dimension(L*W*H) 650×860×1650mm
Voltage 380V or 220V
Power 1.2KW
Application Beverage, Chemical, Food, Medical
Condition New
Automatic Grade Semi-Automatic
Packaging Type Bags

Semi Auto Powder Filling Machine

Brief Introduction

This machine is completely made of stainless steel, Filling system is driven by step motor, and Taiwan made maintenance-free reducer is used for agitating motor , Product cabinet is specified as fully closed , damper air-pressure control , made of stainless steel and glass . The dust extraction device can be mounted in the mouth of the filling tube , designed for reusable working table height adjustable , with a waste material drawer under the table .

Main Features

Made of stainless steel : totally adapt to the require of GMP or other food sanitation certification suitable for packing corrosive chemicals ;

Filling better stability and higher weighing precision ;

Filling system is driven by step motor, high precision , high torque , long operation life and speed adjustable;

Taiwan made maintenance-free reducer is used for agitating motor: low noise level, long operation life , maintenance-free for life time ;

Designed for working condition changeable in any time ;

Max.10 recipes can be saved for later using ;

Product cabinet is fully closed , damp air-pressure controlled and made of glass with stainless steel , product’s movement in the cabinet is clear at a glance no powder leakage.

Trough changing accessories , the machine is suitable for multiple products , no matter super fine power or large grain .

Technical data

ModelZK-B3A
Measuring wayWeighting by  filling by Screw
Weight range1-3000g     (Max.5000g, according to customer’s need)
Accuracy1-2%
Speed20—40bags/min
Voltage380V or   220V
Hopper30L
Power1.2KW
G.N.   Weight230/200kgs
Size650×860×1650mm
