500bph Automatic Rinsing Filling And Capping Machine , 3 In 1 Filling Machine

500bph Automatic Rinsing Filling And Capping Machine , 3 In 1 Filling Machine photo-1
500bph Automatic Rinsing Filling And Capping Machine , 3 In 1 Filling Machine photo-2
500bph Automatic Rinsing Filling And Capping Machine , 3 In 1 Filling Machine photo-3

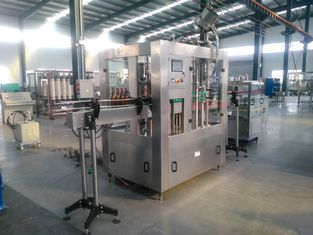

500bph Automatic Rinsing Filling And Capping Machine , 3 In 1 Filling Machine photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Packaging:
Other, Beer / Carbonated Drink
Warranty:
1 Year
Automatic Grade:
Semi-Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Packaging Other, Beer / Carbonated Drink
Warranty 1 Year
Automatic Grade Semi-Automatic
Packaging Material Other, Barrel, Bottles, Cans, Jars, Tins
Type Other, beer filling machine
Supply Ability 50 sets per year
Delivery Time 50 working days
Transport Package iron frame
Specification GD-CGEB-6/6/1
Trademark GD
Origin China

Processing::

Filling Equipment

Condition:

New

Brand Name::

GD

Processing Types:

Beer Filling

Product Name::

500bph Beer Rinsing Bottling Capping 3 -in-1 Machine For Micro Brewery Glass Bottle Filling MachineGlass Bottle Filling

Control System::

Semi-automatic

500bph Automatic Rinsing Filling And Capping Machine , 3 In 1 Filling Machine



Introduction:

This machine is my company’s introduction of German technology, combined with the characteristics of beer production industry, designed to develop small-scale beer filling equipment. The machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection sterilization and other functions.

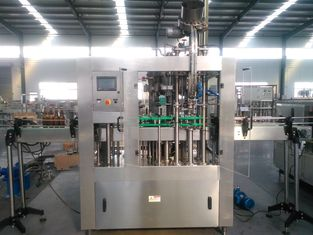

 图片52图片53

Basic Parameters:

rinser filler capper 3 in 1 monoblock

Model

GDCGFB-6/6/1

Rinsing heads

6(diameter:φ595)

Filling heads

6(diameter:φ510)

Capping heads

1(diameter:φ170)

Capacity

500BPH

Applicable bottle

Bottle height 200~350mm DiameterΦ52~Φ84mm

Aseptic air consumption

0.4m3/min(0.4~0.6Mpa); blowing: 0.6m3/h

Main motor

0.37 KW

Hopper motor

0 .18KW

Vacuum motor

0.75 KW

Overall dimension

1520×1125×2350mm(L×W×H)

Weight

1300 Kg

Main components brand:

S.N.

Name

Remark

1

Rinsing head with bottle neck hanging

Made by our factory

2

Filling valve

Made by our factory

3

Capping head

Made by our factory

4

Touch screen

Mitsubishi

5

Transducer

Emerson

6

Main electric

Airtac/ Siemens 800USD additional

7

PLC

Japan, Mitsubishi

8

Approach switch

Japan's Omron

9

Light fiber switch

Korea, Autonics

10

Reducer

Hangzhou, JIE brand

11

Motor

Shanghai

12

Pneumatic elements

Taiwan, Airtac


Product Tags: Beverage bottling equipment , juice bottling machine , automatic bottling machine
