Name: |
Beverage Bottling Equipment |
Application: |
Beverage, Chemical, Commodity, |
Driven Type: |
Pneumatic+electric |
Power: |
3.5Kw. |
Material: |
SS 304 And Alloy |
Automatic Grade: |
Auto |
Filling Temperature: |
High Degree Filling |

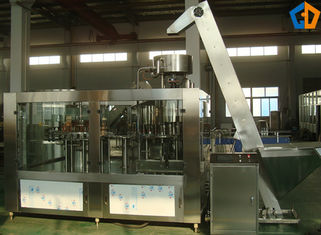

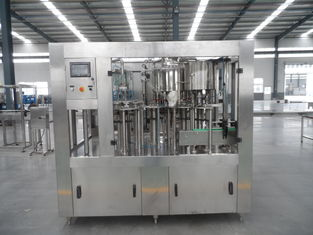

4.5 Kw Carbonated Soft Drink Filling Machine Juice Filling Line SS 304 Material

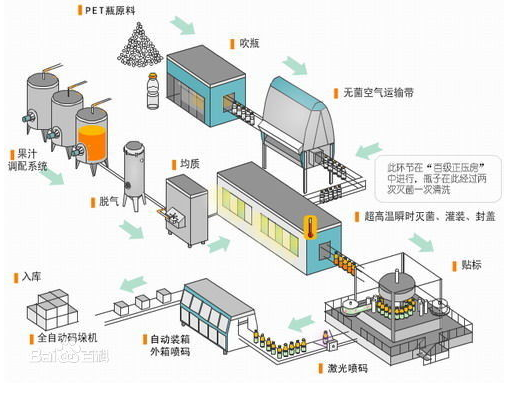

No. |
Equipment |
Capacity |
Qty |
Note |
1 |
Semi-automatic bottle blowing machine |
6000BPH |
1 |
Bottle production |
2 |
Bottle filling monoblock machine |
6000BPH |
1 |
Bottle washing, filling and capping machine |
3 |
Bottle inverter sterilizer |
6000BPH |
1 |
Sterilizer |
4 |
Sleeve labeling machine |
6000BPH |
1 |
Labeling (including the shrink tunnel) |
5 |
Code printer |
6000BPH |
1 |
Coding |
6 |
Film packing machine |
6000BPH |
1 |
Packaging machine |
7 |
CIP system |
6000BPH |
1 |
Clean in place |
Self-adhesive labeler
1. Brief presentation
It is specially designed for self-adhesive labels on glass bottles. It is specially used to stick the three labels: front, back. This machine is adopted the Germany label sticking technology, have a very exact stick, stable work. Pls check its advantage as follows.
2. Main trait and advantage
2.1. Reasonable mechanical structure. It is made by SUS304.Turning control design of pallets meets the demand of label marking of round bottles, square bottles, and various special-shaped bottles.
2.2. Highly automatic control system. The machine adopts Frequency control, PLC control; touch screen dynamic display system, which is equipped with internet module to achieve wide-range steady speed control under internet control. The system includes the following functions: Detection of lubrication pressure and flow, automatic shut in scale-free on back and automatic shut at bottles' burst.
2.3. Main control system is all famous brands. Such as:
Frequency changer, JANPAN, MITSUBISHI
PLC system: JAPAN, OMRON
Air pneumatic system: TAIWAN, AIRTAC
Solenoid valve: GERMANY, FESTO
Motor: TAIWAN, TWT.
2.4. Bottles are conveyed to the machine in equal space and pass the photo-sensor, which send single to the label roller and stick the label on the bottle.
2.5. Advanced infrared detector to realize the precise sticking position.
2.6. Perfect lubrication system. The body machine is lubricated by pumping oil to be prelubricated before working.
3. Working principle
3.1 Keep bottles vertical, use conveyor to let bottles enter into machine, then make bottles separate in a certain distance by the screw device, sent bottles to the rotary plate by the star wheel. The bottles will be closely and accurately caught between the press head of bottle and propping plate. The labeling machine will stick labels on bottles. This process is consisted by the following components:
Store labels unit
Then transfer roller unit (include the device for conveyor roller and tension roller)
The labels drive unit
Item |
Parameter |
Labeling Qty. |
Two(Front, back) |
Label type |
Adhesive sticker |
Production capacity |
0-60 bs/min |
Labeling precision |
±0.5mm |
Applicable range |
H:150-320mm, |
Max label size |
D: 50-90mm |
Power |
1.3kw |
Weight |
600kg |
Date printer
Product feature
1. This machine can print 1 to 15 lines English characters.
2. There is no need to connect the computer, the people can edit the information and design the shape.
3. There is USB connecting the computer. The computer can transfer the information to the printer.
4. Printer accuracy 200DPI
5. The height of character can be adjusted from 1mm to 18mm.
6. It can save more than 100 pcs of information and more than 100 pictures.
7. The speed can reach 35 meter per min.
8. The color can be black, red, and blue, white
