WH Series Double Screw Conical Mixer/blender
US$ 5000 - 15000
MOQ: 1 Set
Key Specifications
Get Latest Price
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
After-sales Service Provided
Engineers available to service machinery overseas

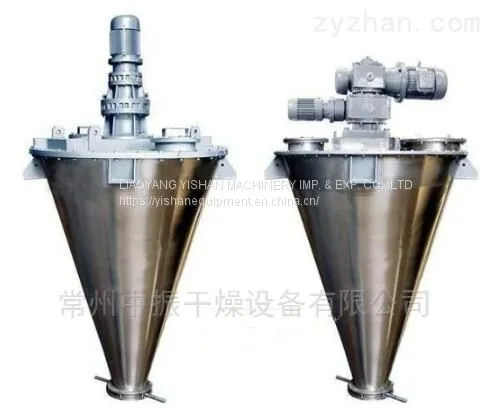

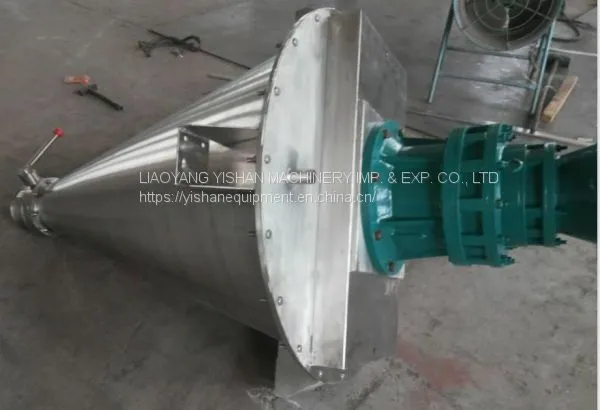

WH series double screw conical mixer/blender
Introduction
This machine is a new , efficient, high-precision mixing equipment, widely used in pharmaceutical, chemical and feed industries, mixing various powdered materials.
Characteristics
The machine finishes its rotation by a motor and cycloidal pin gear speed gear. Material is stirred and mixed by two asymmetric screws, featuring wide range of mixing and quick mixing. It's more suitable for mixing materials with big gravity difference and different mixing proportion.
The parts contacting with material are stainless steel
Technical Parameter
| Specification | Unit | WH0.3 | WH0.5 | WH1 | WH2 | WH4 | WH6 | WH10 |
| total volume | (m3) | 0.3 | 0.5 | 1 | 2 | 4 | 6 | 10 |
| feeding rate | 0.4-0.6 | |||||||
| diameter of materials to be mixed | (um) 40-3000 | |||||||
| operation condition | Ambient temperature, normal pressure, sealed to dust | |||||||
| production capacity p=1g/cm3 | (kg) | 180 | 300 | 600 | 1200 | 2400 | 3600 | 6000 |
| power | (kw) | 2.2 | 2.2 | 5.5 | 5.5 | 11 | 20.7 | 30.7 |
| time of mixing | (min) 4-10 (special material to be determined by trial) | |||||||
| weight | (kg) | 500 | 1000 | 1200 | 1500 | 2800 | 3500 | 4500 |
