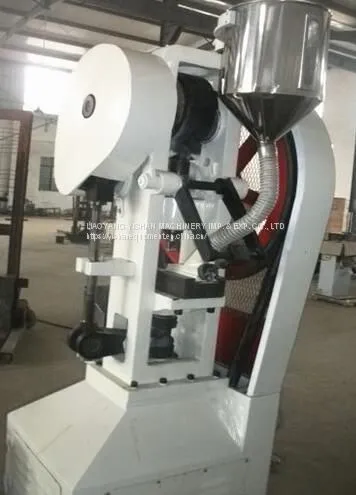

THP series flower basket tablet press
Main application
This machine is one continuous automatic tablet press which is one of main equipment for pressing granular raw materials into tablets and could imprint some letter, line, Trademark and Log on the tablet, This machine could be used in pharmaceutical, chemical food and electronic industries. It can be used to press Medicinal tablets, coffee pills, powder metallurgical parts, electronic components, various tablets of pesticide and fertilizer, in small-batch production laboratory and hospital. The machine can press special shaped circular tablets of different kinds.
Features
Excellent performance, strong adaptability, Convenient Operation.
Machine has big pressure, Could press big tablet, for small capacity.
Material Filling and Depth Adjusted.
Machine could be operated by electricity and hands.
Machine could press different table size and tablet shape by changing mould.
Technical Parameter
| Model | THP-15 | THP-20 | THP-25 | THP-30 | THP-45 |
| Working pressure(KN) | 150 | 200 | 250 | 300 | 450 |
| Max. upper punch stroke（mm） | 110 | 110 | 120 | 130 | 140 |
| loading height（mm） | 70 | 80 | 90 | 100 | 120 |
| Lower mould diameter(mm） | 115 | 115 | 130 | 140 | 100 |
| Max. tablet diameter（mm） | 55 | 65 | 80 | 85 | 90 |
| productivity（times/min） | 20-40 | 20-35 | 15-35 | 15-32 | 12-25 |
| Power（kw） | 3 | 4 | 4 | 5 | 6 |
| Overall dimension（mm） | 2120x980x960 | 2100*1000*1050 | 2180*1020*1080 | 2240*1100*1040 | 2330*1165*1080 |
| Weight（kg） | 1100 | 1100 | 1100 | 1100 | 1100 |
