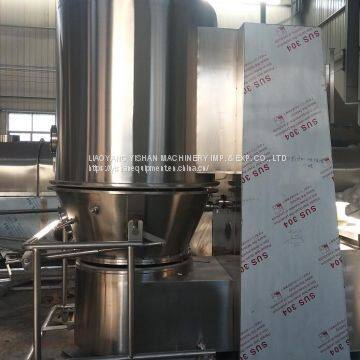

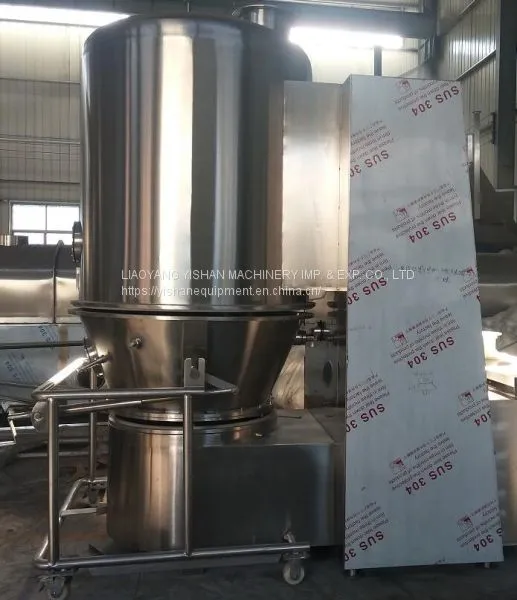

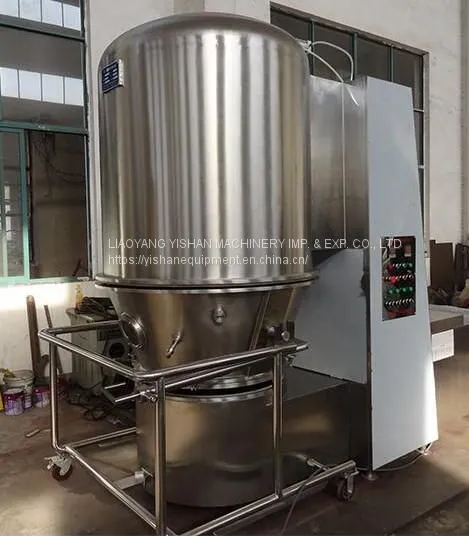

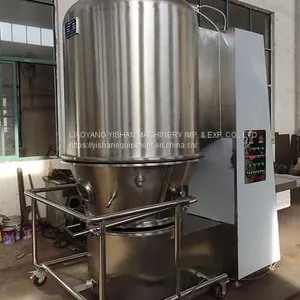

Model GFG High Efficient Fluid Bed Dryer
Description
The structure of fluidization bed is of round so as to avoid dead corner.
Inside the hopper there is a stirring device in order to avoid agglomeration of raw material and forming canal of flow.
The granule is discharged by overturning method. It is very convenient and full. The discharged system can be designed as request too.
It is operated by negative pressure and sealing conditions. The air is filtered. Therefore it is simple in operation and convenient for cleaning. It is an ideal equipment that is in conformity with the requirements of GMP.
The drying speed is fast and the temperature is uniform. The drying time is 20-30 minutes normally.
Purified and heated air is introduced from the bottom through suction fan and passed through the screen plate of raw material. In the working chamber, fluidization is formed through stirring and negative pressure. The moisture is evaporated and removed rapidly and the raw material is dried quickly.
It's suitable for drying humidity block or powder raw material in Pharmaceutical, foodstuff, feed, chemical industries and so on.
Technical Parameter
| Item | Model | |||||||||
| GFG-60 | GFG-100 | GFG-120 | GFG-150 | GFG-200 | GFG-250 | GFG-300 | ||||
| Volume of hopper | L | 200 | 300 | 400 | 500 | 650 | 800 | 1000 | ||
| Productive Capacity | kg/ batch | 30-60 | 50-100 | 60-120 | 70-150 | 100-200 | 120-250 | 150-300 | ||
| Temperature of inlet air | °C | 50-100 | ||||||||
| fan | blast | M 3 /h | 2576 | 3488 | 3619 | 5114 | 5153 | 6032 | 7185 | 7766 |
| Air pressure | Pa | 5639 | 5080 | 7109 | 5869 | 9055 | 7610 | 7400 | 7218 | |
| power | kW | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 22 | 30 | |
| agitator | speed | r/min | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| Motor power | kW | 0.55 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | ||
| Steam | Pressure | MPa | 0.4 | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | |
| Consumption | kg/h | 140 | 170 | 210 | 240 | 230 | 280 | 280 | ||
| Compressed air | pressure | MPa | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Consumption | M 3 /h | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | ||
| Weight of main machine | kg | 1000 | 1200 | 1450 | 1500 | 1700 | 2000 | 2200 | ||
