Detailed Product Description
Type: |
Filling Machine |
Application: |
Beverage, Chemical, Commodity, |
Automatic Grade: |
Automatic |
Driven Type: |
Pneumatic+electric |
Power: |
3.5Kw. |
Material: |
SS 304 And Alloy |
SS 304 Beverage Bottling Equipment 4000BPH Pneumatic Electric Driven Type
Part One. Equipment list and quotation
Quotation
NO. |
Name |
Model |
Qty |
Capacity |
Main equipment | ||||
1 |
Bottle Rinsing Machine |
GD-CP-18 |
1 |
4000BPH |
2 |
Wine filling machine |
GD-DYG-18 |
1 |
4000BPH |
3 |
Screw capping machine |
GD-XG-4 |
1 |
4000BPH |
4 |
Bottle drying machine |
GD-FG--3000 |
1 |
4000BPH |
5 |
PVC Cap shrinking machine |
GD-JM-1 |
1 |
4000BPH |
6 |
Self-adhesive labeler |
GD-BTB-02 |
1 |
4000BPH |
7 |
Date printer |
GD-PM-30000 |
1 |
4000BPH |
8 |
FOB Qingdao price |
40feet |
1 |
|
Total price: 70,595USD. | ||||
Note:
Price term: FOB Qingdao, China. It is valid within 30 days.
Payment: 30%TT in advance, 70%TT before shipment.
Delivery: 40 work days.
After–sales service:
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.
Installation and training:
We provide training if the technical engineers of the buyer coming to our company. If the buyer needs our engineer to install and training at buyer's spot, the buyer should pay for the visa cost, air ticket, and accommodation and salary, etc.

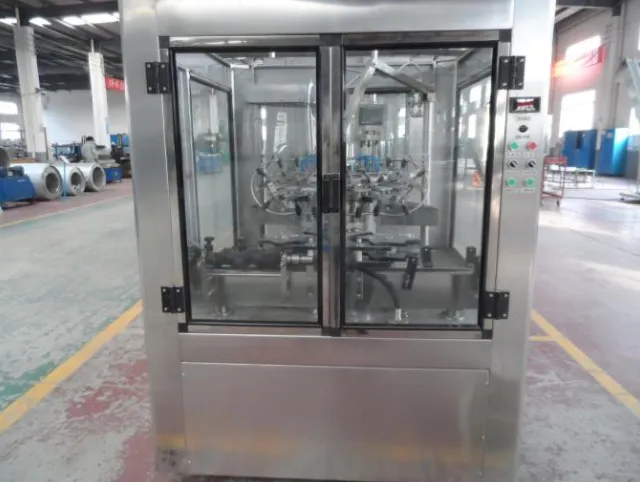

1. Bottle rinsing machine
Brief Introduction
GD-CP-16 type automatic rinser is a suitable automatic washing bottle in wine production line equipment. Machine design is reasonable, structured, closed-end production to ensure that the production process is not contaminated. Being ideal equipment for the production of grape plant equipment. Carefully made on the basis of absorbing advanced technology in Italy to achieve the advanced level in the 90s of the last century.
Features:
1. Rinser speed reaches 4000 bottles / hour. Time-saving,labor-saving. Frequency control, according to production needs any adjustment.
2. Has a flushing channel, less water consumption.
3. Diversion valve to strictly control the time of the rinser control bottle, to guarantee clean bottle, no water control bottle after bottle.
4. Electric height adjustment, easy to operate.
5. Applies to the scope of the bottle, except special shaped bottles, most of the rules can be applied bottle.
6. Advanced jaw precision machining, reliable operation and long service life.
7. The various parts are equipped with a limit device fails to automatically shut down to protect the equipment will not be damaged.
Working principle
Conveyor belt put the bottles into the bottle inlet screw, which synchronously convey the clean needed bottles to the center transferring manipulator with the star wheel, and the manipulator along with the rotary table are spraying and washing the bottles, it will revert into the start-off state after completed, then the bottle outlet star wheel send the cleaned bottle out, then the whole process is completed.
Parameter
Capacity |
4000BPH |
Bottle diameter |
∮50-∮100mm |
Bottle height |
160-320mm |
Power |
0.75kw |
Overall dimensions |
1200*1100*1700mm |
Weight |
800kg |
Washing medium |
Sterile water |
Washing time |
3 seconds |
Drying time |
2 seconds |

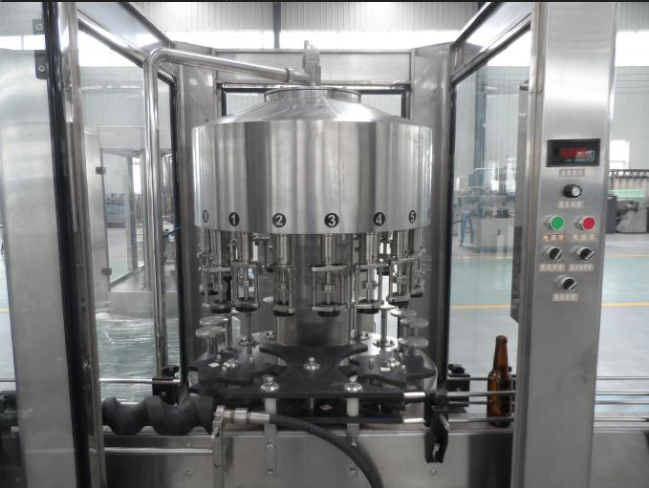

2. Wine filling machine
Brief introduction:
Negative pressure filling machine is mainly used in filling of non-sparking liquids, such as wine. Principal features Negative pressure filling machine: Level positioning accuracy, better than the industry standard, non-drip, tight and reliable seal. No filling when there’s no bottle or broken bottle, clean and hygiene. Automatic adapt the error of the height of bottles, frequency conversion speed regulator, soft start, soft-braking, non-rigid impact, stability and reliability working.
Working principle:
Automatic negative pressure filling bottles passed by the conveyor line, out of the bottle trackwheel institutions, each of the bottles sent to the turntable, the empty bottles with the whole rotation, colleagues hold the bottles after hard-propafter contact of the mouth and the filling valve for filling open automatically filling is completed, the bottle automatically dial into the bottle conveying line, the end of the whole process.
Parameter:
Capacity |
4000BPH |
Filling head |
18 |
Maximum Bottleneck |
∮10mm |
Bottle height |
140-340mm |
Filling pressure |
0.2-0.3Mpa |
Filling temperature |
2-6℃ |
Motor Power |
0.75kw |
Overall dimensions |
1200*1300*2100mm |
Weight |
1200Kg |
Adjustment form |
VVVF |
3. Screw capping machine
Working principle:
FM motor through the gear transmission, will power to send to the spindle assembly and cover head, the filler filling bottle, through the lose bottle machine chain into points bottle opener, the points bottle opener will bottle spacing into and dial the bottle pitch equal distance, make bottle smooth entry into the bottle dial the wheel, and at the same time, the device for cover from bottle cap after Zi cover tank reach to cover device, when dial the bottle wheel will bottle dial the fashionable, and for cover device inside the bottle cap meet, then cap set in the bottle mouth, the bottle is dial the to rotary stage and block head immediately drop pressure tight lid, bottle in the cap head head and rotary table of bottle pad was compacted fixed, at the same time two thread rail wheel and two sealing rail wheel pressure posted on the lid on the perimeter, along with the cap head rotation, four rail wheel namely compression cover, and along the bottleneck of thread and bottle diameter ring rotation to roll out cover on the thread and sealing ring, and then cover head up, sealed bottle cover by the central dial the wheel, the bottle dial the wheel to send out of the body.
Parameter
Capacity |
3000-4000BPH |
Screw capping heads |
4 |
Bottle diameter |
∮60-∮90mm |
Bottle height |
150-400mm |
Power |
1.5kw |
Overall dimensions |
1300*986*1925mm |
Weight |
1200kg |
Adjustment form |
VVVF |
4. PVC cap shrinking machine
Plastic cap shrink uniformly without folds neatly at the bottom;
Machine is fully automatic and out of bottles, shrink-automatic operation.
In the allocation round of the Department has a clutch bottle protective device, such as the emergence card bottles, automatic shutdown, in order to ensure safety in production.
Technical parameter:
Name |
Parameter |
Shrinking nozzle |
1 |
Temperature range |
0-300℃ |
Power |
1.8kw |
Capacity |
4000BPH |
Suitable bottle |
bottle height 130-360mm (can be changed) |
Suitable shrink |
dia30-36mm, Height 30-70mm |
Outer size |
800×740×1700mm |
5. Bottle drying machine
This machine is applicable for drying the bottles before labeling.
1. This machine is reliable, stable and can be used in the production line with high speed.
2. The wind direction is adjustable. The wind mouth can also be adjusted according to actual situation.
3. Almost every kind and size of bottles can be dried by this machine.
4. Low energy cost.
5. No easy-wear accessories or parts.
Capacity |
40000BPH |
Wind blade |
3groups |
Machine Power |
2KW |
Wind mouth |
550MM(length) |
Max. flow |
300M3/H |
Max. pressure |
30Kpa |
Overall dimensions |
3000*800*1600 |
Weight |
750Kg |
