Material: |
Sus304 |
Filling Speed: |
5000-6000 Bph |
Filling Container: |
Glass Bottle |
Filling Liquid: |
Beer / Carbonated Drink |
Guarantee: |
1 Year |
Power Supply: |
According To Your Power Supply |

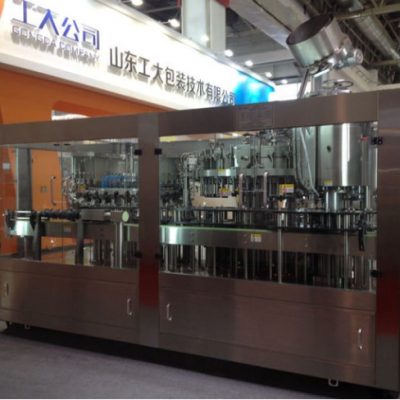

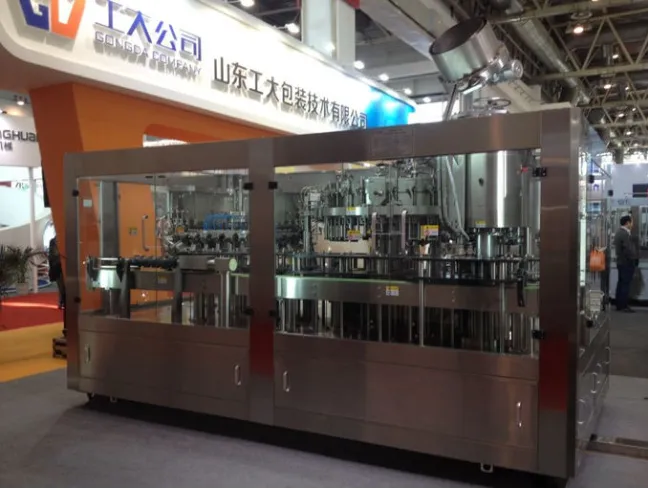

Auto Glass Bottled Water Filling And Capping Machine 1 Year Guarantee
One:Introduction:
Newly designed and produced by our Zhongde Group Company
Machine Name :32-32-10 rinsing, filling, capping 3-in-1 machine
Used for filling beer and carbonated drink
Filling beer in glass bottle
Adopt isobaric filling principle
Filling stable , filling level stable
One time CO2 preparation and one time vacuumed
Widely used in craft breweries
GD-CGFB 32/32/10 type beer bottle rinser-filler-capper 3-1 unit machine is designed combined with the actual situation in our country after the introduction and absorption. It adopts the bottle filling and capping technique of Germany technology. It has been specially used to microbrewery.
It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level. Adopt Siemens automatic controlling system, realizing trinity of the machines, and control the washing, filling and capping process and realize that it only starts to filling when there is a bottle, otherwise it will stop filling and no broken bottles. The filling process is cleaner and pure due to it’s twice vacuumization of bottles, and more stable because of isobaric filling operation. Using vacuum pump and CO2 preparing pressure to realize a second vacuum ensure no air and bacteria in the bottle, guarantee the filling quality and warranty quality time. Filling cylinder braces use worm-gear box going up and down to satisfy bottles of different height. Float switches in the filling cylinder ensure a smooth liquid inlet. Therefore, this machine is the best ideal choice for beer or beverage factories.
Basic parameters date
Filler Block | ||
No. |
1 |
|
Make |
Zhongde |
|
Capacity |
bph |
5000 |
Max/min diameter of containers to be handled |
mm |
Φ50～Φ85mm |
Max/min height of containers to be handled |
mm |
150～300mm |
Machine efficiency at full speed |
% |
>98,5 |
Rinsing time at full load |
sec |
2-3 |
Dripping time at full load |
sec |
1-2 |
Number of rinsing grippers |
24 |
|
No bottle - no rinsing function |
Yes |
|
Sterile filter for rinsing medium |
Yes |
|
Rinsing medium |
Water |
|
Rinsing medium consumption |
l/h |
500~1000 |
Filling temperature |
°C |
0-4 |
CO2 content |
g/l |
4-7.5 |
Number of filling heads |
24 |
|
No bottle - no filling function |
Yes |
|
Maximum DO pickup over the filling process |
mg/l |
≤60ppb |
High pressure water injection |
Yes |
|
Heater for injection water |
Yes |
|
Number of crowning elements |
8 |
|
No bottle - no crown function |
Yes |
|
Crown cap - diameter |
mm |
26 |
Magnetic cap elevator |
Belt conveyor cap elevator |
|
Shower after crowner |
Yes |
|
Length |
mm |
3300 |
Width |
mm |
2300 |
Height |
mm |
2800 |
Weight (emtpy / in operation) |
kg |
3500 |
Installed power |
kw |
4.5KW |
Compressed air consumption |
g/l |
460g/100L |
