ZP33 Rotary Tablet Press
Description

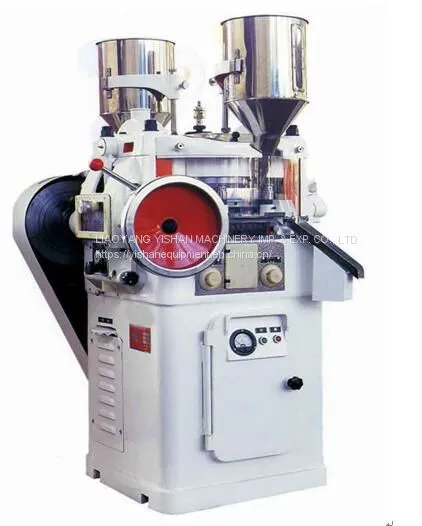

This machine is designed for pressing round tablets from various kinds of granular materials. It is the primary machine to fit batch production of tablets.The mechanism of the machine belongs to double press type. It consists of two sets of feeding devices and press rollers.The turret carries 33 sets of punches and dies, so 66 tablets will be pressed for each revolition of the turret. During operation,the speed of the turret rotation,the depth of the filling material and the thickness of the tab-lets can be adjusted. The mechanical buffer unit will prevent punches and apparatus from overload damage.A powder suction unit is attached to take in residual powder during the operation, so that the blockage by the residual powder can be eliminated and the collected powder material can be reused.This machine has won the Fine Quality Product Prize awarded by China National Medical Management Bureau.
Main Technical Specifications
Dies |
33 sets |
Max.Pressure |
40kn |
Max.Dia.of Tablet |
12mm |
Max.Depth of Fill |
15mm |
Max.Thickness of Tablet |
6mm |
Turret Speed |
11-28r/min |
Production Capacity |
43000-110000pc/h |
Motor |
2.2kw 960r/min 380/50v/hz |
Overall Size |
930*900*1600mm |
Net Weight |
850kg |
