Type: |
Filling Machine |
Packaging Type: |
Barrel, Bottles, Cans, Jars, Tins |
Automatic Grade: |
Automatic |
Driven Type: |
Pneumatic+electric |
Voltage:: |
AC220V Or AC380V |
Power: |
3.5Kw. |
Material: |
SS 304 And Alloy |
Filling Volume:: |
0-1000ml,5000ml |
GD-CGFQ series WATER filling monoblock machine is mainly used for filling water. It combines rinsing and filling and screw capping as one automatic body suitable for PET or other plastic bottles. The normal-pressure filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
Besides using photo-electronic detectors to detect the running of every important sub-process, it employs SIMENS PLC for automatic control of the whole process and new type air-channel for bottle-loading fast and damage-free of bottle. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is good adaptability. High automation and easy operation make it an ideal option for beverage companies.
This machine is composed of auto-bottle washing machine, bottle filling machine and screw capping machine.
2. Feature
1) Adopts high precision mechanical valve, has advantages of fast filling speed, high precision in liquid level. Sealed filling cylinder made of 304 stainless steel and automatic adjustment of the liquid level to realize filling.
2) Has CIP cleaning function, touching screen control, the whole machine is protected by stainless door.
which can keep the filling quality well.
3) The height of the rinsing filling screw capping machine is adjustable to fill different kinds of bottles within the design scope.
4) Main transmission adopts a transmission combination of cog-type belt and gear box type, high efficiency and low noise.
5) SIMENS PLC system controls the whole work automatically. Main transmission adopts step less speed regulation..
6)Sealing technology is all imported from Switzerland (Ferrum) company.
The Bottle filling line:

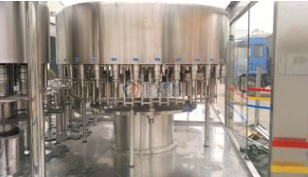

1. Bottle washing filling capping machine
1. Principal features
The series of machine integrating washing ,filling and capping into one unit ,can be used for different kinds of fruit juices ,tea hot drink production .With only a few parts changed, the machine can also be used for mineral water filling .The filling is quick ,steady and accurate .The beverage feedback system is well designed ,the gas can be fed back separately ,has no contact with beverage ,reduce the second time pollution and oxidation .
2. The main parameter:
Washing nozzle: 18
Filling nozzle: 18
Capping nozzle: 6
Bottling capacity: 3000-4000BPH
The total power: 4.69KW
Air pressure: 0.25Mpa
The whole size: 2260x1840x2200mm
The weight: 3000kg
. Bottle overturn pasteurizer
This machine is use for the bottle and cap’s sterilization for the juice, about 30~40 seconds, sterilization time can be adjusted according to demand chain using imported parts, frame adopts stainless steel production, extend the service life. It mainly applicable to tea, fruit juice beverage hot filling and capping. The product after filled and sealed can automatically flip 90 °, and then flat the bottle make perfect sterilization of the cap inner. The machine adopts chain drive, stable and reliable, the body without damage.
3. Spray cooling machine
Designed specially for juice bottle cooling down after filling.
It can be used for juice bottles and cans as cooler and the temperature
can be controlled according to the SIMENS PLC system.
There is 2 temperature zones to reduce the temperature down
to 25 degrees.
4. Bottle drying machine
This machine dries the bottles after the bottles is cooled.
It is to confirm that the bottle is dry before labeling.
Model: GD-FG-3
Wind blade: 3groups
Machine Power: 12KW
Wind mouth: 550mm (length)
Max. Flow: 300M3/H
5. Sleeve labeling machine
Label material: PET, OPS
Bottle diameter: Φ25~Φ50mm,Φ50~Φ95mm,Φ95~Φ125mm,
one dimension to be choose from three options, special specification
can be made to meet customers’ demands.
Bottle height: 25mm ~ 300mm
Thickness of label: 0.035mm ~ 0.13mm
Sleeve reel Inner core: 5” ~10”
Speed: 250bpm
6. Code printer
Print date on the labels.
Features:
1. Equipped with vacuum ink recycle system to reduce the consumption of the ink, small occupation. Self-adjust when there's break, to confirm the best printing effect.
2. This machine would print in many different languages.
3. Display the product code, batch, etc.
4. Bold the characters as much as 9 times.
5. It can print 3 lines, numbers and other characters in English version.
Outer size |
370mm(L)*260mm(W)*550mm(H) |
Printer line |
1-3 |
Gross weight |
30kgs |
7. PE film packing machine
The sleeve barrel sealed-cut machine absorbs advanced technology from abroad, and according to domestic present status, it packs the goods with film and sealed-cut automatically with unique originality.
This machine uses (PE) thermal-shrinkage film as packing material, and it is usually applied for the food industry.
Main technical parameter
the max size of the packing goods(mm) |
240ⅹ195ⅹ210(L.W.H) |
packing speed |
10-15/min |
external dimension(mm) |
2970ⅹ1320ⅹ1926(L.W.H) |
the max power of the whole machine |
2KW |
rated electric current |
6A |
air supply pressure |
0.6-0.7Mpa |
Packing capacity |
10-24bags/min |
