Automatic servo feeding hydraulic cnc pipe cutting machine with high accurancy
- 50 Set / Sets per Month
- Shanghai China
- T/T Credit Card
- MC-350CNC-Y Automatic cnc hydraulic stainless steel pipe cutting machine for tube brand circular sawing with promotion price
- MC-350CNC Automatic high accurancy tube cutting machine for pipe cold sawing by Mitsubishi servo motor feeding
- MC-275B semi auto pneumatic steel pipe cutting machine with high speed
- MC-400CNC Steel Cold Saw CNC Automatic Pipe Tube Cutting Machine with gear machine head for durable use
- Semi auto manual feeding steel pipe cutting band saw machine
- Automatic copper tube cutting machine by servo feeding with high precsion
Product Details
Brand Name: | CARE | Model Number: | MC-350CNC cnc pipe cutting machine |
Product Description
Automatic servo feeding hydraulic cnc pipe cutting machine with high accurancy
Main specification
1.The machine adopt man-machine interface, PLC control or Single-chip computerl, operating simple.
2.Using HSS saw web:250-400mm,Standard saw web is Φ350mm.
3.Special design, multiple gears, suitable for heavy cutting ,precision and stability.
4.Feeding, clamping, cutting off with automatic circulation.
5.PLC or Single-chip control, can choose many times feeding(One time 6-700mm).
6.Using cooling fluid. cooling motor 0.09KW to ensure the smooth workpiece section.
7.Using hydraulic pressure oil.
8.Using special clamp mold, several pipes could be cut together according to the different size of pipe diameter.
Technical parameter
Specification/Model | MC-350CNC | ||
sawing scale | Applicable sawblade 250-400mm | ||
rectangle pipe | 120mm x 90mm | ||
square pipe | 110mm×110mm | ||
round pipe | 125mm | ||
round bar | 75mm | ||
square bar | 65mm×65mm | ||
Size | 1600×1850mm×1600mm | ||
Weight | 800kg | ||
Main motor(KW) | 3.5-4.0KW | ||
Main shaft speed(RPM) | 88/44 | ||
Feeding length Standard | 5-700mm*time after time | ||
Oil motor system | 3.5KW motor,18L pump | ||
Cooling system | 0.09KW motor |

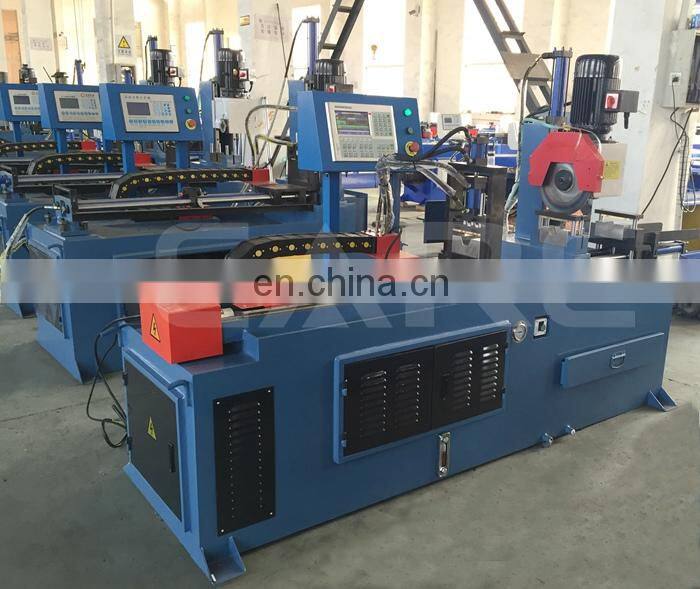

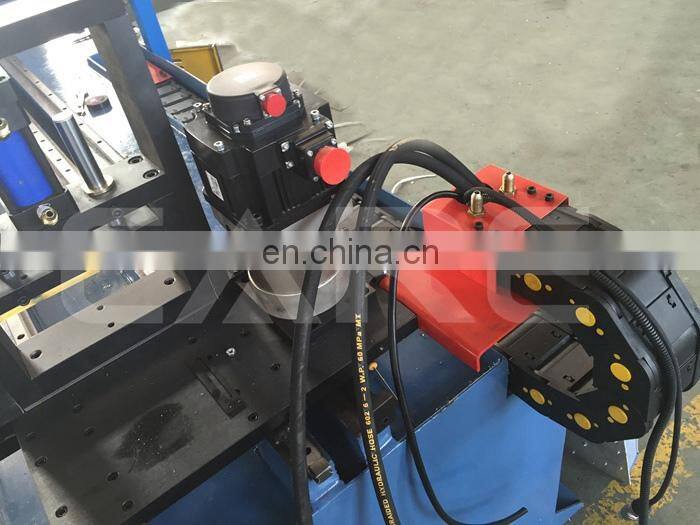

Machine photo

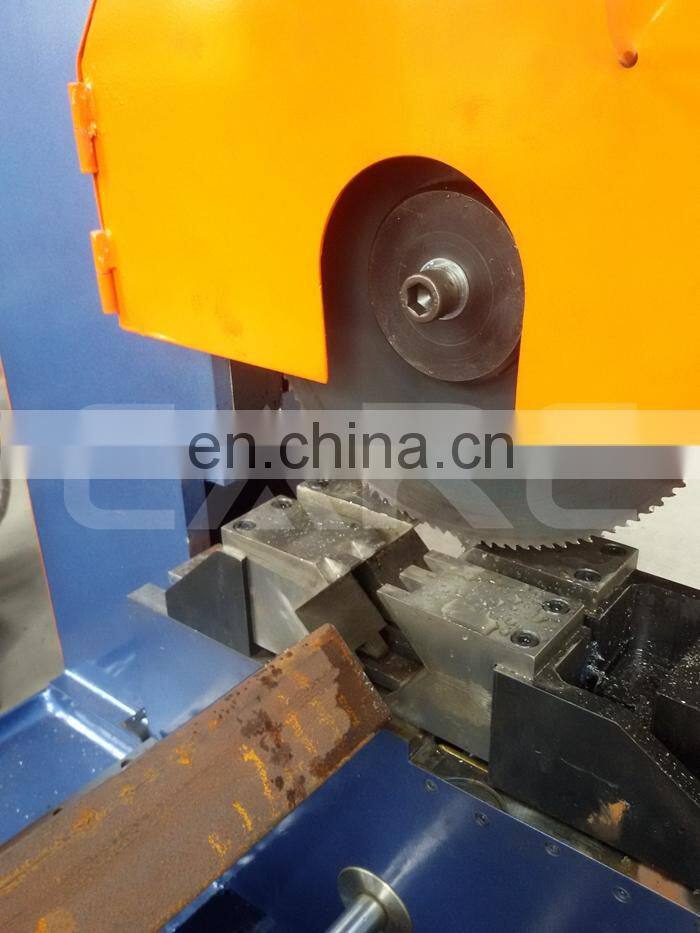

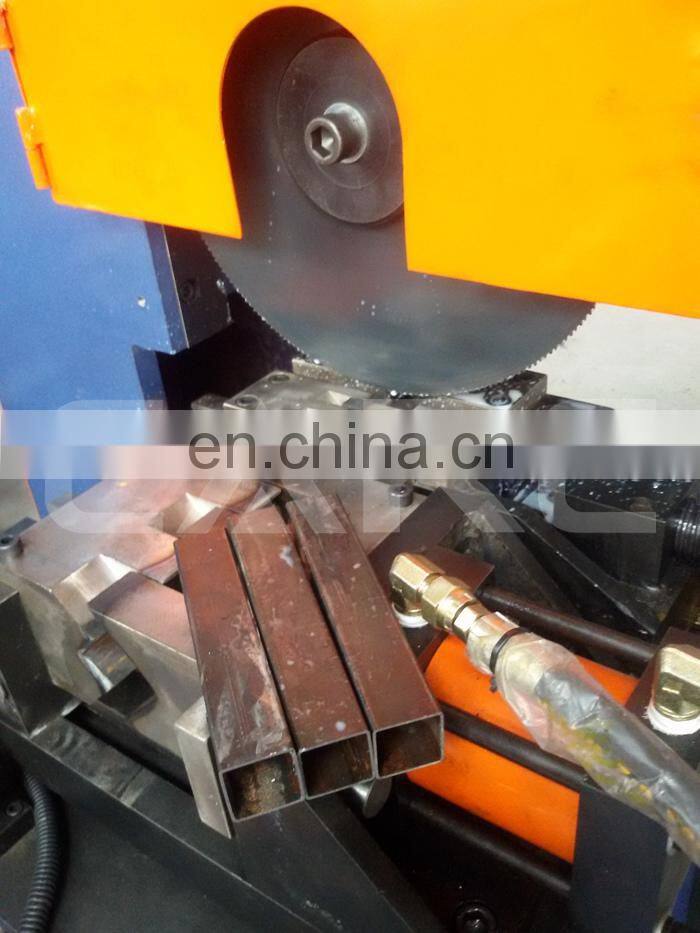

Pipe cutting sample
Use export polywood package or metal frame package
