SG-II-40 Single Head Hydraulic Pipe End Forming Machine, Tube End Forming Machine for Pipe Reducing and Expanding
- Shanghai China
- T/T Credit Card
You May Like
-
SG-III-80 Automatic PLC Control Round Tube Swaging Machine With 3 Stations
-
DSG-II-40 Double Head Tube End Forming Machine for Both Sides Reducing
-
ZSG-60 Automatic Pipe Taper Reducing Machine for Chair Leg
-
CH-60 Hydraulic Horizontal Type Steel Pipe Tube End Notching Machine for Good Welding
-
FK-25 Double Head Hydraulic Copper Tube End Closing Machine
-
ZSG-40 Automatic Hydraulic Steel Pipe Tube Swaging Machine for Taper Reducing
Product Details
| Brand Name | CARE | Place of Origin | Jiangsu, China | |
| Model Number | SG-II-40 pipe end forming machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
SG-II-40 Single head pipe end forming machine for pipe reducing and expanding
Application: Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. Forming controlled by hydraulic, clamping controlled by hydraulic. Microcomputer controller with English or any other language
Main specification
1) NC Control Unit: Easy Operation and Maintenance
2) Suitable for the shrinking of various metal pipes with different material and different shape
3) Equipped with emergency stop device. Both manual and automatic operations are available
4) Shrinking stroke 100mm. The max. workpiece length is 450mm, with no minimum workpiece length
5) This machine can make pipe end reducer, expander, flange and flare depend on different forming molds
Technical parameter
Type | SG-40 | SG-60 | SG-80 | SG-100 |
Max tube(mm) | φ40*2.0 | φ60*2.0 | φ80*3.0 | φ100*3.5 |
Max processing length(mm) | 110 | 130 | 150 | 180 |
Oil pressure(Mpa) | 14 | 14 | 14 | 14 |
Working speed | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s |
Size(cm) | 180*45*120 | 200*50*130 | 290*70*140 | 300*75*150 |
Weight(kg) | 600 | 950 | 1600 | 1800 |
Remark | 1.The max processing length can according to customers requirement. | |||

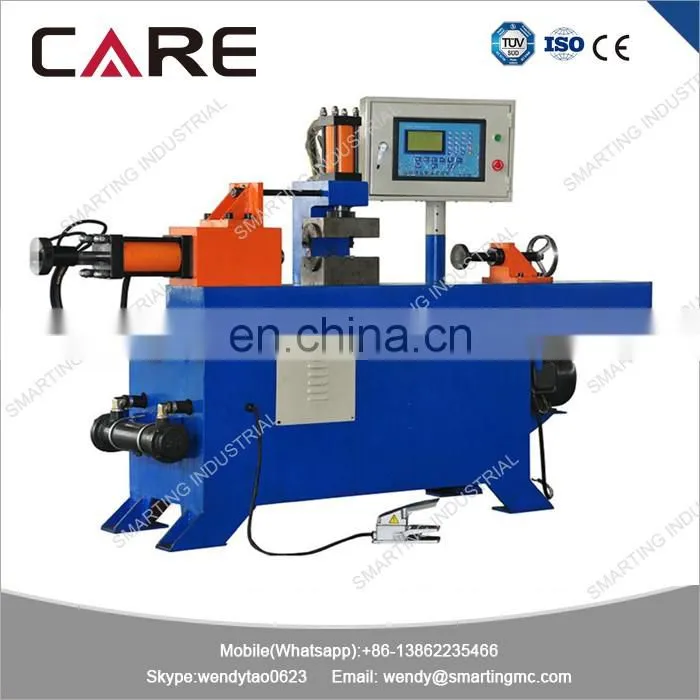

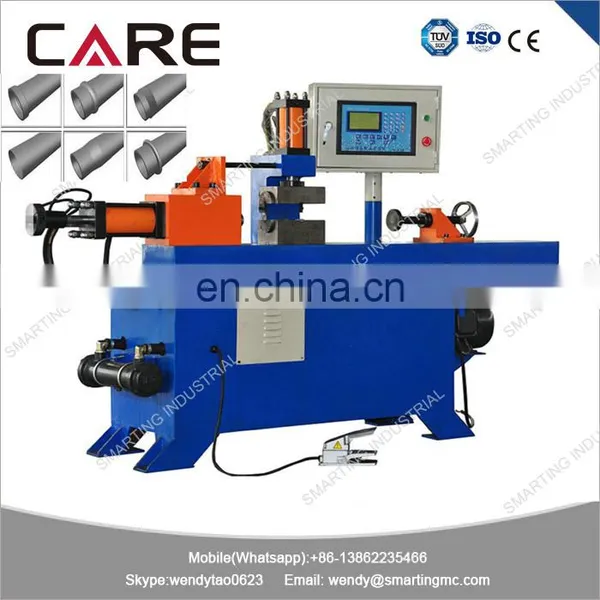

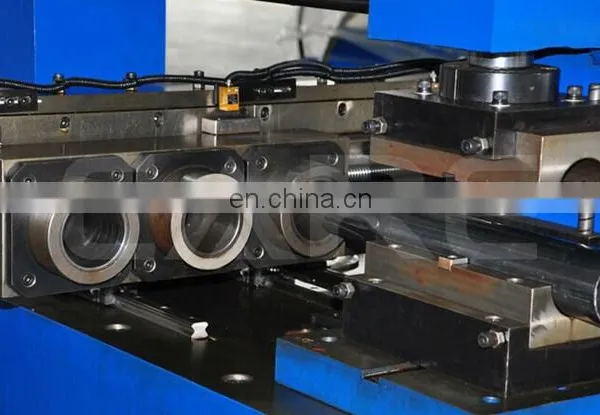

Machine photo

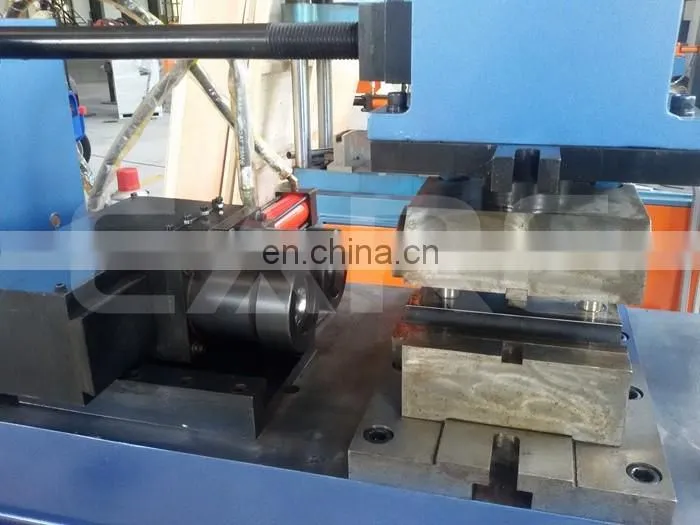

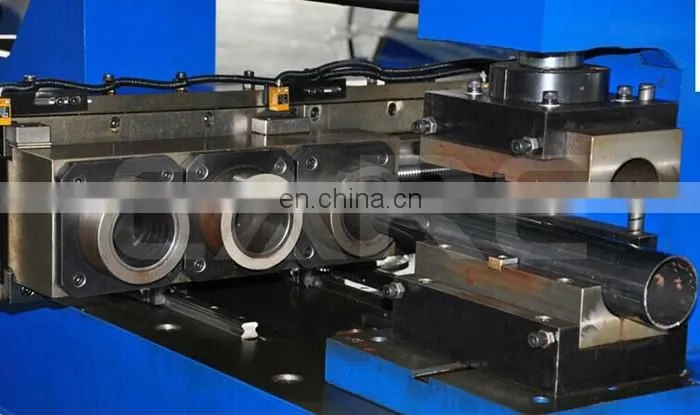

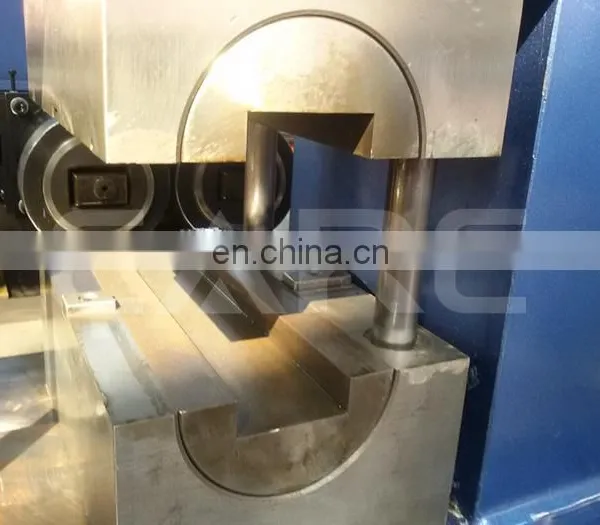

Forming molds
Pipe samples
To know more information, please contact us at any time.
