MC-275A Manual Electric Steel Pipe Cutter Machine
- Shanghai China
- T/T Credit Card
You May Like
-
Semi Auto Hydraulic Steel Pipe Cutter Machine With Heavy Cutting Capacity
-
High Speed 45 Degree Pneumatic Copper Pipe Cutter Machine, 45 Degree Cutting Machines for Steel Pipe Tube
-
Automatic Steel Tube Cutting Machine by Hydraulic Cylinder Feeding
-
Single Head Cutting Saw Aluminum Window Machine Made in China
-
China Used Machine for Cutting Aluminum, Aluminium Cutting Machine Angle, Aluminum Circle Cutting Machine
-
Automatic Profile Aluminium Saw Cutting Machines With Auto Aluminum Scrap Collection Facility
Product Details
| Brand Name | CARE | Model Number | MC-275A steel pipe cutter |
Product Description
MC-275A Manual electric steel pipe cutter machine
Main specification
1.The cutting machine use the block-drive turbine vortex .
2. Small nose, small shock, without dust pollution, no thorns.
3. Tangent plane is fluent,good quality internal and external incisions.High priduction and precision of saw cutting.
4. Vertical slideway for advance and retreat blade up and down.
5. Cutting feed is steady and cutting tools are of long use life.
6.Cooling and lubricante system ensure the cutting surface and prolong the life of saw blades.
7. Advance of tool adopts manual mode, the cutting machine's head can rotate 45 degree left and right.
Cutting capacity
Max cutting and sawing capacity ( mild steel)
Machine model | MC-275 Series | MC-315 Series | ||
Cutting direction | 90 degree | 45 degree | 90 degree | 45 degree |
Hollow pipe | 80 | 60 | 100 | 80 |
Hollow square steel | 60×60 | 45×45 | 90×90 | 80×80 |
Hollow rectangular pipe | 60×80 | 45×60 | 80×90 | 80×80 |
Solid rectangular steel | 60×60 | 45×45 | 90×90 | 80×80 |
Solid shafting | 38 | 25 | 55 | 45 |
Solid square steel | 38 | 25 | 50 | 40 |
Technical parameters
Machine model | MC-275 Series | MC-315 Series | ||
Main pump | two-speed electric motor 2/2.4kw | two-speed electric motor 2/2.4kw | ||
Principle axis | RPM60/120 | RPM60/120 | ||
Applicable saw blades | OD 250/275 mm | OD 250/275/315 mm | ||
Cooling pump | 90W | 90W | ||
Air compression | 0.4~0.6MPa | 0.4~0.6MPa | ||
Machine weight | Type A | Type B | Type A | Type B |
180 | 190 | 200 | 210 | |

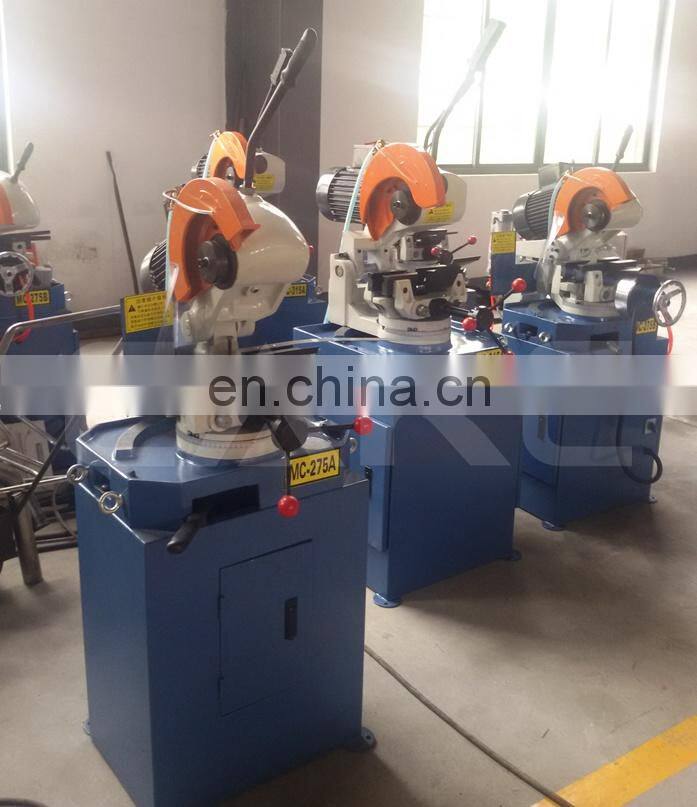

Machine photo
To know more information, please contact us at any time.
