Aluminum Notching Saw Machine for Skylight aluminum window door fabrication
1. Features of Aluminum Curtain Wall Notching Saw :
1.1 This machine is a new product,specialized designed for aluminum curtain wall and skylights industry
1.2 It have the function of easy operation,reliable performance,advanced technology and easy maintenance.
1.3 This machine is mainly used for end parts angle milling on aluminum curtain wall and skylights profile
1.4. Using carbide blade,fast cutting speed,high efficiency and high processing precision
1.5. Two saw heads work together,can be cut the needed angle on end profile at one time
1.6. Two blades can swing within any range of +/-45°
1.7. Have magnetic scale control system,can display the cutting angle and work-table height
1.8. Work-table and positioning device is easy to adjust

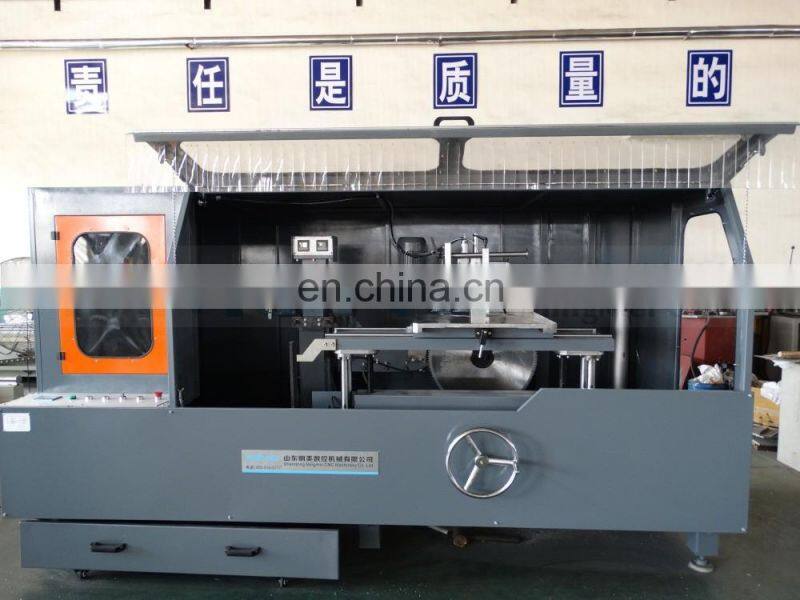

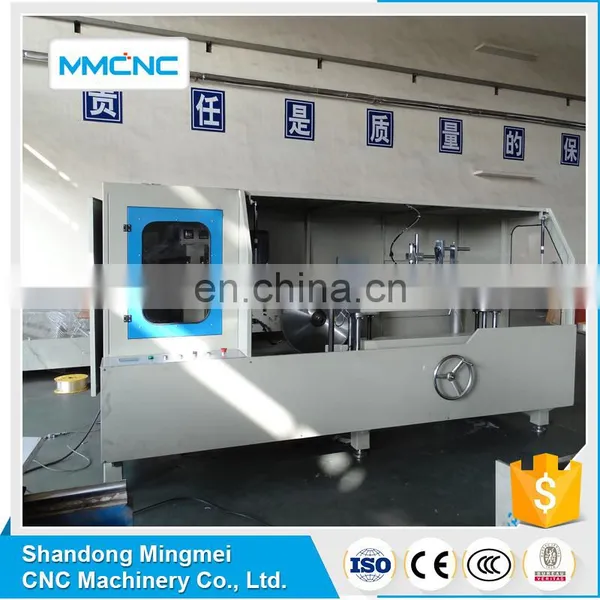

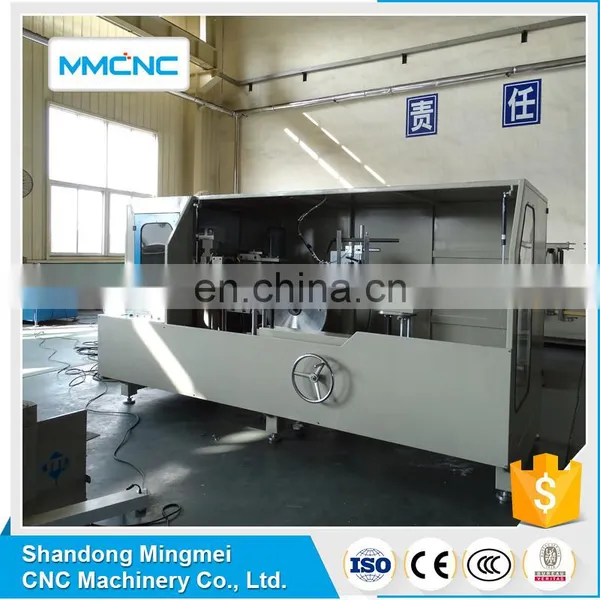

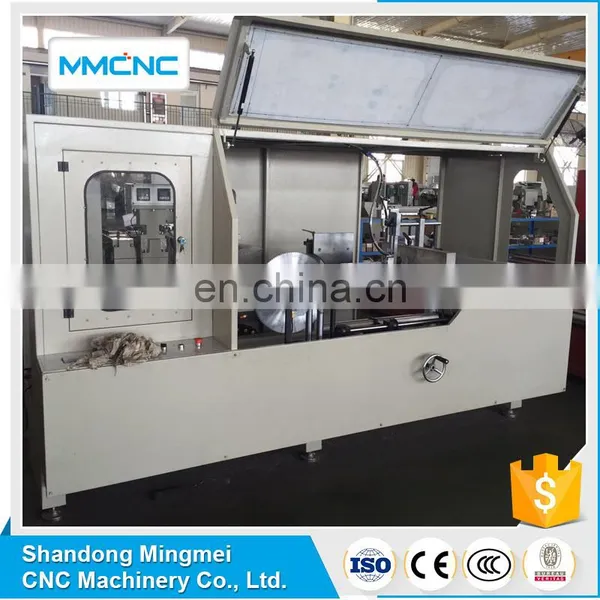

2. Real photo of skylight aluminum window door fabrication notching machine

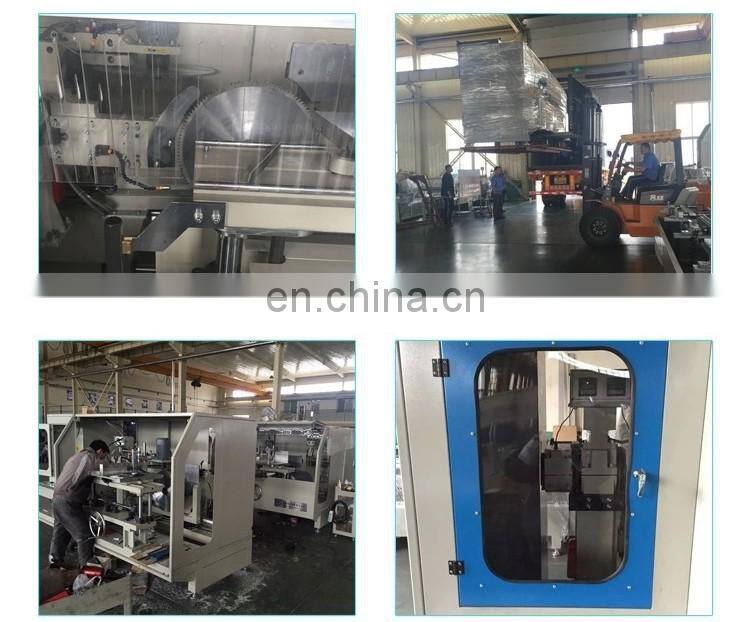

3. Details parts of Aluminium Notching Saw
4.SPECIFICATIONS OF ALUMINUM NOTCHING SAW
| Input power | 2*2.2KW |
| Power supply | 380V/ 50Hz (According to clients need) |
| Air pressure | 0.5~0.8MPa |
| Motor rotary speed | 2800r/min |
| Saw Blade specification | Φ600xΦ30x4.4 Z=120 |
| Saw blade sawinging range | +/-45° |
| Cutting depth | Max 200mm |
| Cutting feeding speed | 0~3m/min |
| Overall dimension | 3250x1500x1800mm |
| Weight | 1700kg |

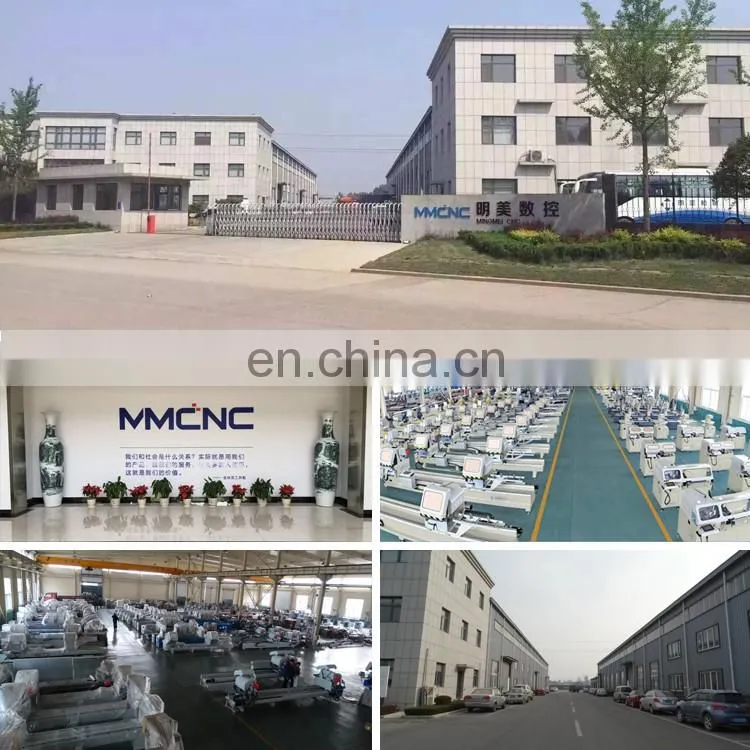

Shandong Mingmei CNC Machinery Co., Ltd. Was founded in 1995, located in Jinan economic dev. Zone. Company cover an area of 70000 square meters and 208 staffs.
As leading manufacturer of industrial aluminum equipment which is a modern private enterprise specialized in technology development,machinery manufacture and product sales.
SHANDONG MINGMEI CNC selected each part carefully. What's important is that we have our own sheet-metal workshop and machanical department. We are strive to quality first when machine production.
MINGMEI engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

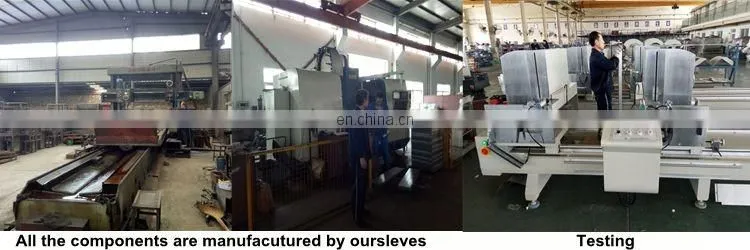

After machine production finished, the products will be tested in professional ways make sure its performance.So we will provide the best machine for you.
Welcome to visit our factory ! Abroad customers came to our factory for training and guidance.
MMCNC on the Exhibition:Shanghai,Beijing,Guangzhou,Korea...
-Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Design drawing of the factory workshop
* View our Factory.
-After-Sales Service
* One year warranty time, we can repair and replace parts for free in one year.
* Free training course at our factory with professional engineers.
* Technical support in 24 hours online, TM, Skype, E-mail solving the relative questions in time.
* Engineers available to service machinery overseas.
* We provide the consumable parts at agent price when you need replacement.
-Are you manufacturer or trade company?
*We are factory.Factory starts from 1995.For more company introduction click here>
-How I can get suitable Machine?
Please give me your followed information:
*First: Please tell us what's your max working area (L*W*H),
*Second: Please send us your profile drawing.Its very important.
Those two answers will help us choice suitable CNC machine for you.
If you are new farmer, no idea, contact us, our service department will guide you.
-What's your payment methods?
*L/C, 30% deposit by T/T,70% spare payment L/C.
*T/T, 30% deposit by T/T,70% spare payment before shipment.
* Western Union,Trade Assurance...
CONTACT
Blair Zhang (Sales Manager)
Tel: 008615965629053( Wechat )
Skype: tradecncmachine
Email: trade@
Get in touch. Any questions about aluminum cutting machine,please call me or send enquiry.
