Product Details
| Brand Name | CARE | Model Number | MC-455L aluminum tube cutter |
Product Description
Popular aluminum tube cutter machine, aluminum profile cutter machine
Main features
It is adapted for sawing aluminum extrusion material, aluminum doors and windows, radiating rib, wooden material, water pips and sound faceplate.
1.The firm structure,small vibration and low noise.
2.Oblique angle is accurately,edge smooth and no burrs.
3.Easy to operation and safety.
4.Configurable digital display file-foot,fast and accurate size location,Save time and improve production.
5.It is suitable to cut some non-ferrous metal,aluminum,copper,plastics,carbon materials,etc.
6.It is specially suitable to saw cutting of aluminum door and window and shaped materials.
7.It can deal with 90°straight cutting,90°-45°left angle cutting and 90°-30°right angle cutting.
Technical parameter
Spec. | MC-455L |
Sawing angle | 90°&45° |
Max. sawing width | 300mm |
Max. sawing thickness | 125mm |
Rotate speed of sawing shaft | 3500RPM |
Sawing speed | 10-15cyle/min |
Working area | 650×680mm |
Working height | 850mm |
Motor power | 3kw |
Needed pressure | 5-6kg/cm |
Length of feeding frame | May be made to order. |
Size of machine | 750×850×1200mm |
Size of container | 800×900×1350mm |
Net/gross weight | 400/480kgs |

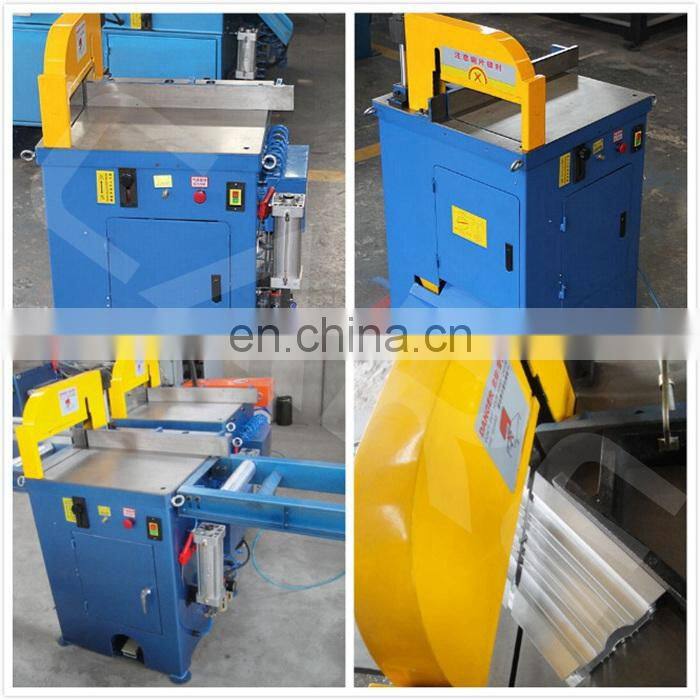

Machine photo

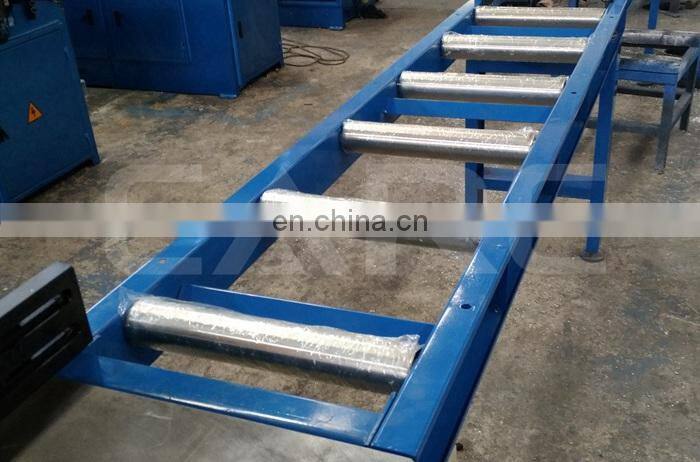

Selectable feeding frame
Automaitc type

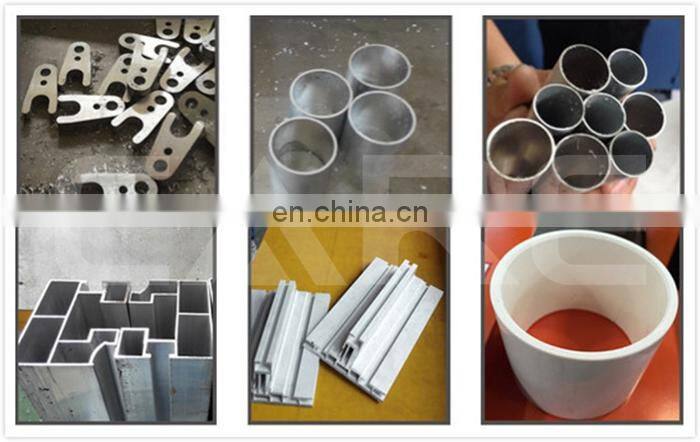

Pipe/profile sample
To know more information, please contact us at any time.
