◎This machine is mainly used for aluminum profile for taping, milling or mounting holes, lock holes, launders and other slots on the profiles of curtain walls. It can work on various profiles, such as aluminum
alloy, non-ferrous metal, orbit construct, upvc etc.
◎Whole set of CNC system adopts by LENZE originally imported from Germany, including servomotor and driver. Professional quality guaranty.

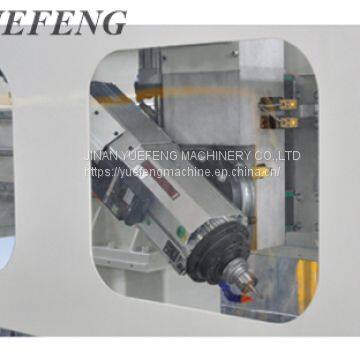

◎The main shaft adopts HSD imported from Italy, which can finish any angle of drilling between ±90°.
◎8 sets of chucking can locating automatically, which can avoid collision.
◎Every cutter has length compensation function, which can guarantee the processing accuracy.
◎Adopt professional CAD-CAM software, which is easy to operate.
◎It can finish all kinds of holes processing, milling, tapping etc between one time of clamping.
◎The whole machine body is made of steel tube with heat treatment, which can guarantee the inflexibility.
◎It adopts HIWIN guide rails and YYC grinded gear racks which can guarantee high precision.

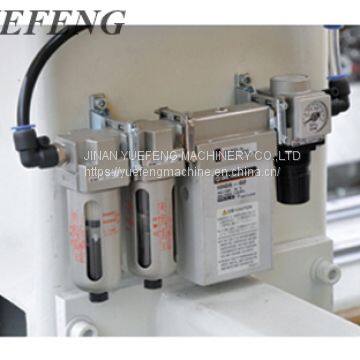

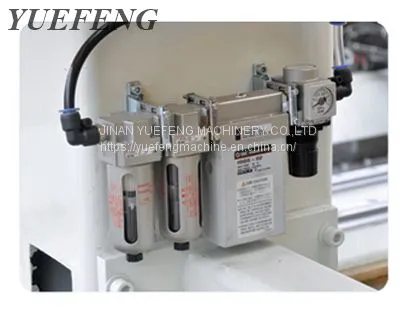

◎It adopts FESTO, SMC, AIRTIC electrical and pneumatic products, professional quality guarantee.
◎It adopts Turck proximity switchs imported from Germany and APEX, iGB speed reducer.
◎The rotary tool magazine which made in Taiwan has 12 cutters, the cutters change automatically fast.
◎Double worktable design, it can keep working when changing profile, high production efficiency.
◎It equipped shaft location detection, operator location detection which can guarantee safe operation.
Model | YFLGS-CNC-7000 |
Input voltage | 380V 50Hz |
Input power | 12Kw |
Spindle power | 5.5Kw |
Spindle speed | 0~18000r/min |
X-axes travel | 7200mm |
X-speed | 0~60m/min |
Y-axes travel | 1400mm |
Y-speed | 0~30m/min |
Z-axes travel | 600mm |
Z-speed | 0~30m/min |
Process range | 7000×650×280mm |
Overall dimension | 11300×2400×2300mm |
