Automatic CNC stainless steel tubing cutter machine, automatic cnc tube cutting machine with auto fan cooling
Main specification
1.The machine adopt man-machine interface, PLC control or Single-chip computerl, operating simple.
2.Using HSS saw web:250-400mm,Standard saw web is Φ350mm.
3.Special design, multiple gears, suitable for heavy cutting ,precision and stability.
4.Feeding, clamping, cutting off with automatic circulation.
5.PLC or Single-chip control, can choose many times feeding(One time 6-1500mm).
6.Using cooling fluid. cooling motor 0.09KW to ensure the smooth workpiece section.
7.Using hydraulic pressure oil.
8.Using special clamp mold, several pipes could be cut together according to the different size of pipe diameter.
Technical parameter
Specification/Model | MC-350CNC | ||
sawing scale | Applicable sawblade 350-400mm | ||
rectangle pipe | 120mm x 90mm | ||
square pipe | 110mm×110mm | ||
round pipe | 125mm | ||
round bar | 75mm | ||
square bar | 65mm×65mm | ||
Size | 2400×1100mm×1700mm | ||
Weight | 1000kg | ||
Main motor(KW) | 2.2KW | ||
Main shaft speed(RPM) | 44/22 | ||
Feeding length Standard | 5-1500mm*time after time | ||
Oil motor system | 3.5KW motor,18L pump | ||
Cooling system | 0.09KW motor | ||

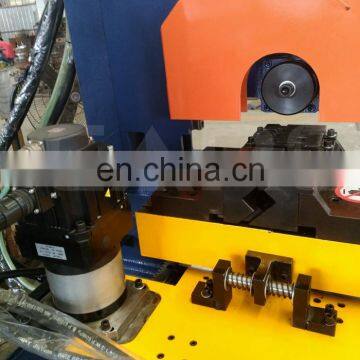

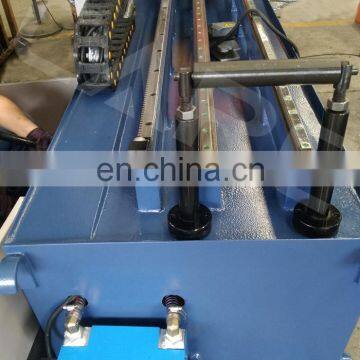

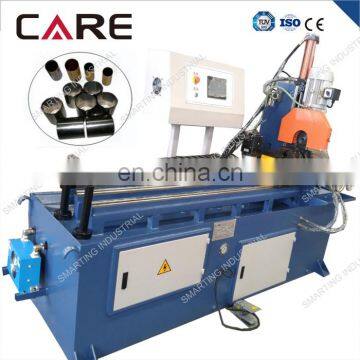

Machine photo
Manual&semi-automatic pipe cutting machine
Use export polywood package or metal frame package
