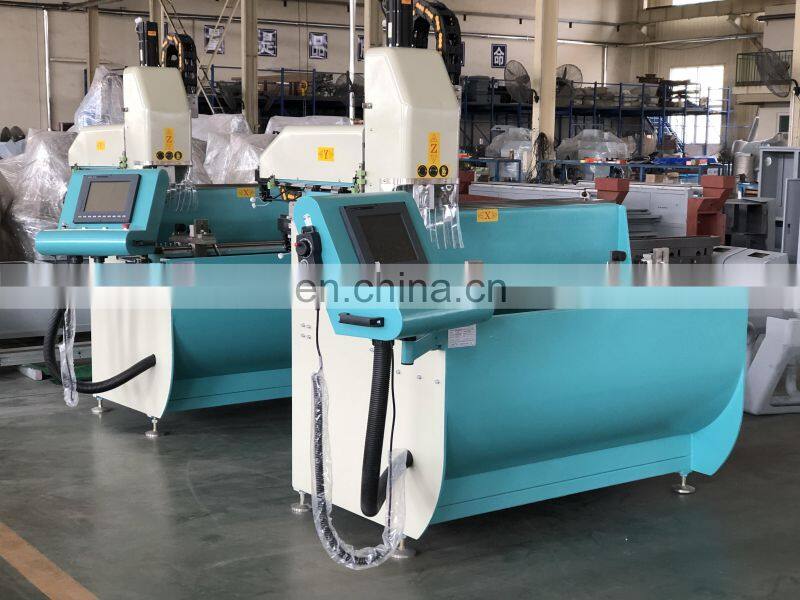

CNC 3+1 Axis Aluminum Profile Drilling and Milling Machine/Aluminum Window CNC Drilling and Milling Machine Aluminum Window Mach
US$ 12,000 - 12,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1990
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Profile CNC Drilling Milling MachineUS$ 8,350 - 8,350MOQ: 1 Set -
Automatic Water Slot Milling MachineUS$ 1,740 - 1,740MOQ: 1 Set
-
Automatic Water Slot Milling MachineUS$ 1,740 - 1,740MOQ: 1 Set
-
New Arbitrary Angle Double-head Cutting Saw CNCUS$ 33,023 - 33,030MOQ: 1 Set
-
Notching Saw for Aluminum Curtain Wall High PrecisionUS$ 9,500 - 13,390MOQ: 1 Set
Aluminum Profile CNC Drilling Milling Machine
1.Equipment Features
1.1 Applicable for drilling holes,milling grooves,processing circular holes and special-shaped holes,plane engraving of aluminum alloy profile.
1.2 System adopts Taiwan SYNTEC CNC Controller.
1.3 Adopting electric spindle:high precision,high safety and reliable.
1.4 X axis adopts high-precision helical gear and rack;Y and Z axis adopt high-precision ball screw transmission and high precision.
1.5 By using programming software to automatically transform and process G code;easy operation;high efficiency and low labour intensity.
1.6 Workbench can turn 180°,-90°~0°~+90°;it can realize three-sides processing by clamping one time;it can process deep and special-shaped holes through workbench;high efficiency and precision.
1.2 System adopts Taiwan SYNTEC CNC Controller.
1.3 Adopting electric spindle:high precision,high safety and reliable.
1.4 X axis adopts high-precision helical gear and rack;Y and Z axis adopt high-precision ball screw transmission and high precision.
1.5 By using programming software to automatically transform and process G code;easy operation;high efficiency and low labour intensity.
1.6 Workbench can turn 180°,-90°~0°~+90°;it can realize three-sides processing by clamping one time;it can process deep and special-shaped holes through workbench;high efficiency and precision.
2.Technical Parameter
Parameter |
|
Air Pressure |
0.5~0.6MPa |
X/Y/Z Axis stroke |
1200mm*300mm*280mm |
Input Voltage |
380V 50Hz or As Customer need |
Input Power |
3Kw |
Handle type |
ER25*Φ8 |
Processing range |
100*140 |
Overall size |
2200×1500×19500mm |
Weight |
700kg |

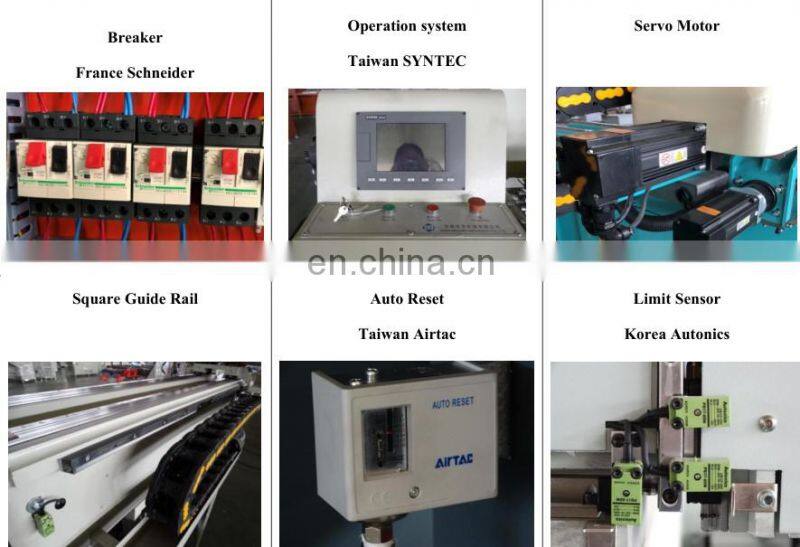

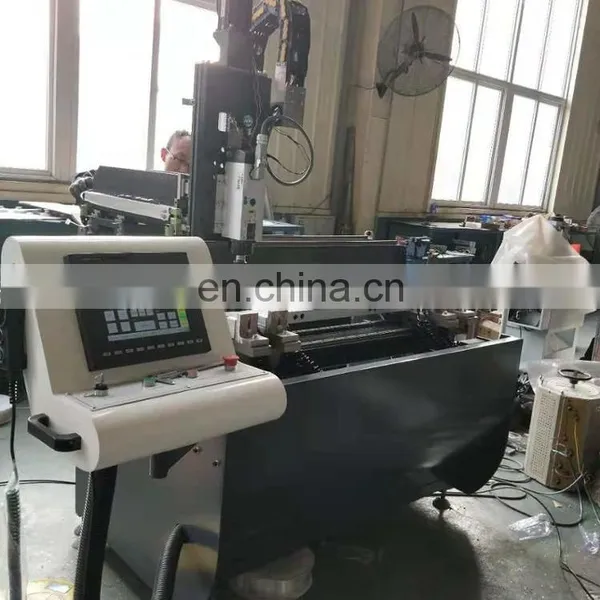

3.Detailed Photos

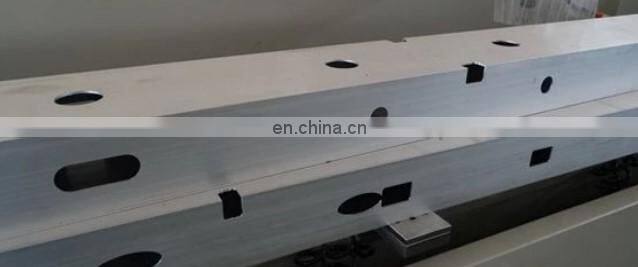

4. Samples

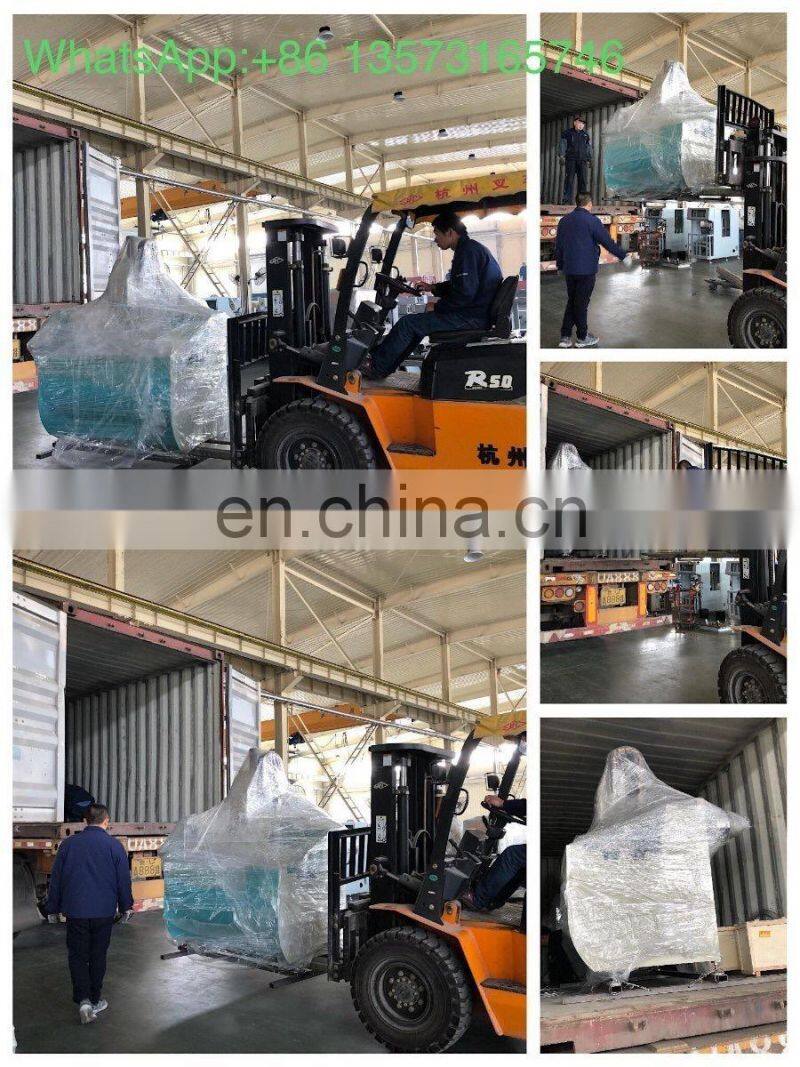

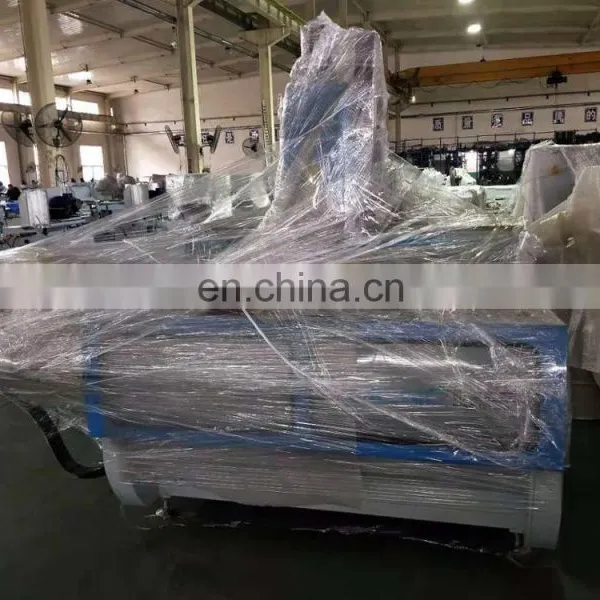

5.Packing&Delivery

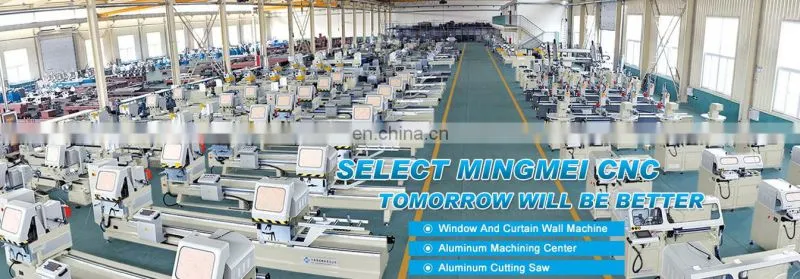

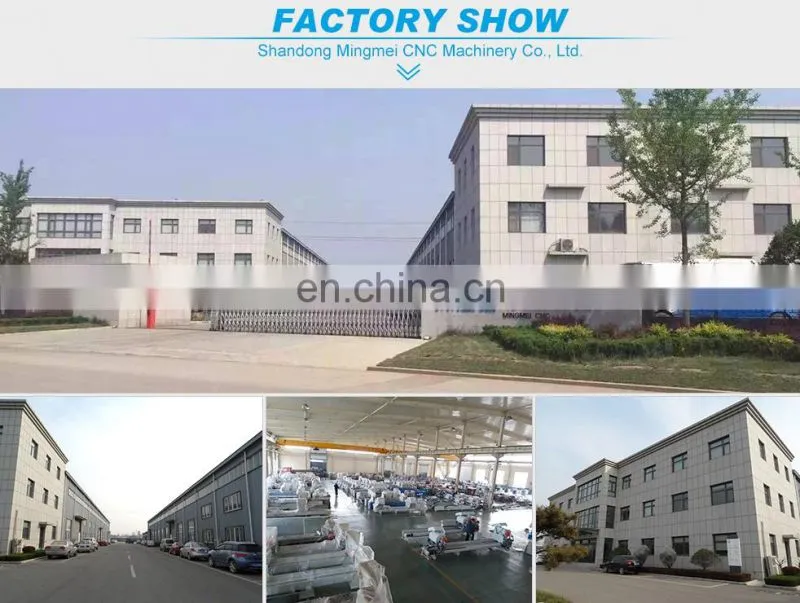

6.Our Factory
Contact Demi freely for further info:
